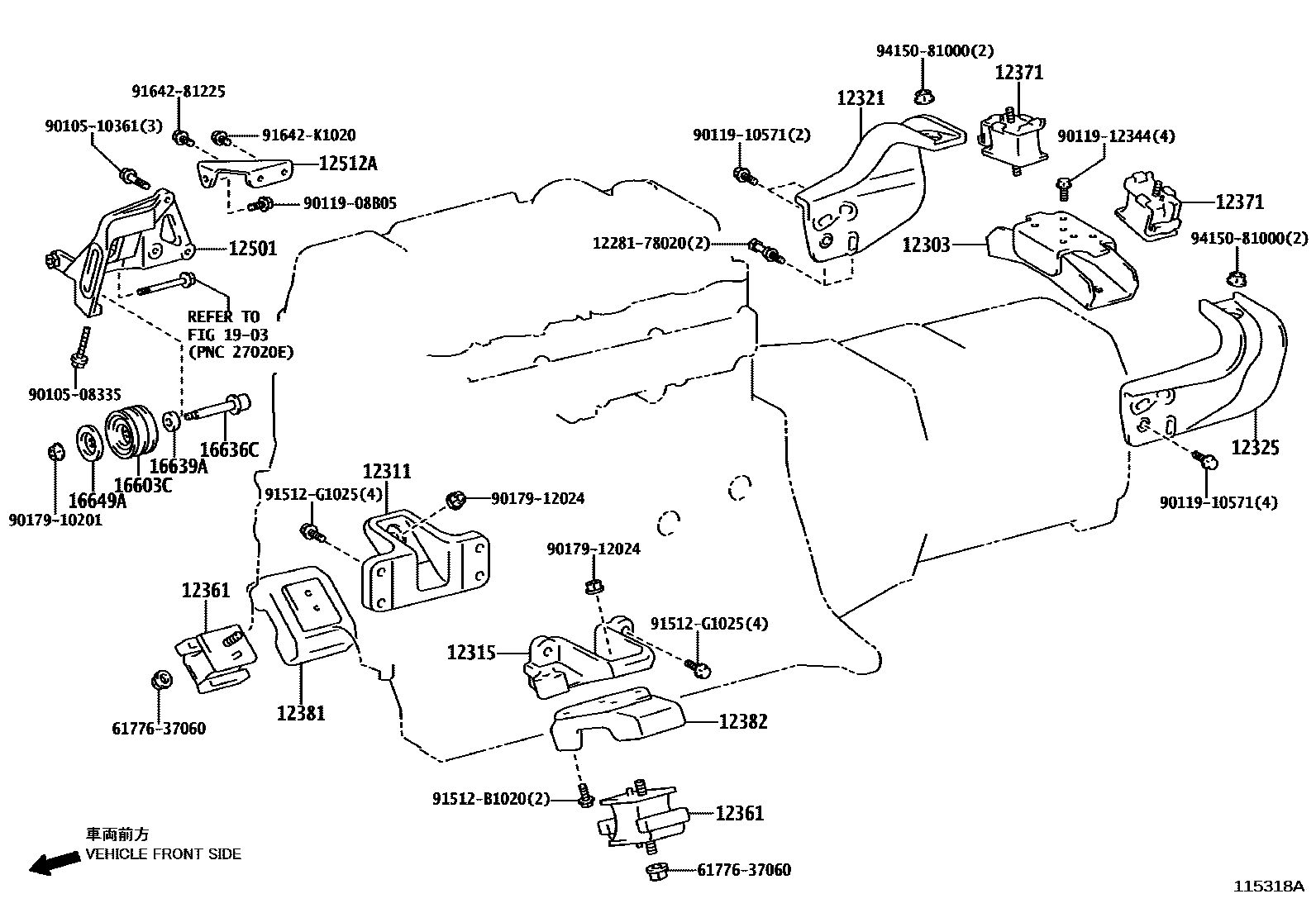

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-78010i2TRFE..TRU300,340,500200610-201106

sub12303-78011

main12303-78030iN04C..XZU324,524;N04C..XZU304,334..5F..IV4;N04C..XZU30#,33#,34#..(6F,6FC)..(DCRTK,DCRUE)200610-201106

sub12303-78031

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-58110i1BZFPE..BZU300,340200705

main12311-75040i2TRFE..TRU300,340,500200705

main12311-78050iN04C..XZU368,378,388,568;N04C..XZU334,344,354..35T,40T200610

subS1231-11950

main12311-78060iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T200610

subS1231-11970

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-58070i1BZFPE..BZU300,340200705

main12315-75100i2TRFE..TRU300,340,500200705

main12315-78040iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T200610

subS1231-51960

main12315-78050iN04C..XZU368,378,388,568;N04C..XZU334,344,354..35T,40T200610

subS1231-52000

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-58221i1BZFPE..BZU300,340200705-201106

main12321-58230i2TRFE..TRU300,340,500200705-201106

main12321-78180iN04C..XZU314,354,554..MTM..4NO200610-201106

sub12321-78181

main12321-78220iN04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)200610-201106

sub12321-78221

main12321-78240iN04C..XZU304..IV7200610-201106

main12321-78250iN04C..XZU304,334..5F..IV4200610-201106

main12321-78260iN04C..XZU304,334..6FC..IV4200610-201106

main12321-78270iN04C..XZU368,378,388,568200610-201106

main12321-78440iN04C..XZU324,524;N04C..XZU30#,33#,34#..6F200610-201106

sub12321-78441

main12321-78450iN04C..XZU30#,33#,34#,50#,538,548..6FC..(DCRTH,DCRTJ)200610-201106

sub12321-78451

main12321-78461iN04C..XZU354,554..6FC200610-201106

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-58181i1BZFPE..BZU300,340200705-201106

main12325-58190i2TRFE..TRU300,340,500200705-201106

main12325-78160iN04C..XZU314,354,554..MTM..4NO200610-201106

sub12325-78161

main12325-78200iN04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)200610-201106

sub12325-78201

main12325-78220iN04C..XZU304..IV7200610-201106

main12325-78230iN04C..XZU304,334..5F..IV4200610-201106

main12325-78240iN04C..XZU304,334..6FC..IV4200610-201106

main12325-78250iN04C..XZU368,378,388,568200610-201106

main12325-78410iN04C..XZU324,524;N04C..XZU30#,33#,34#..6F200610-201106

sub12325-78411

main12325-78420iN04C..XZU30#,33#,34#,50#,538,548..6FC..(DCRTH,DCRTJ)200610-201106

sub12325-78421

main12325-78431iN04C..XZU354,554..6FC200610-201106

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58130iN04C..XZU304,314,324,334,344,354,368,378,388,504,524,554,568200610-201106

sub12361-58131

main12361-58130i1BZFPE..BZU300,340200705-201106

sub12361-58131

main12361-75030i2TRFE..TRU300,340,500200705-201009

sub12361-75031

sub90179-12127

main12361-75031i2TRFE..TRU300,340,500201009

main12361-78160iN04C..XZU308,338,348,508,538,548200610-201106

sub12361-78161

main12361-78170iN04C..XZU308,338,348,508,538,548200610-201106

sub12361-78171

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-78010i2TRFE..TRU300,340,500200610-201106

sub12371-78060

12381STABILIZER, ENGINE MOUNTING

main12381-58011i1BZFPE..BZU300,340200705

main12381-65030i2TRFE..TRU300,340,500200705

main12381-78030iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T200610

sub12381-78032

main12381-78040iN04C..XZU368,378,388,568;N04C..XZU334,344,354..35T,40T200610

12382STABILIZER, ENGINE MOUNTING, LH

main12381-78030iN04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T200610

sub12381-78032

main12381-78040iN04C..XZU368,378,388,568;N04C..XZU334,344,354..35T,40T200610

main12382-58040i1BZFPE..BZU300,340200705

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-58030i1BZFPE..BZU300,340200705

main12501-78111iN04C..XZU538..5F..DCRTH..IV3;N04C..XZU30#,34#..(T3,T5)..20T..DCRUE..IV3;N04C..XZU304,338,344..(T4,T5)..5F..(DCRTH,DCRTK,DCRUE)..IV3;N04C..XZU348,50#..SCB..T4..(DCRT200610-201106

main12511-78120iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201007

sub12511-78121

main12511-78121iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201007-201103

sub12511-E0021

12512ABRACKET, ALTERNATOR, NO.2

main12512-58020i1BZFPE..BZU300,340200705

16603CPULLEY SUB-ASSY, IDLER

main16603-58010i1BZFPE..BZU300,340200705

16636CSHAFT, IDLER PULLEY, NO.1

main16636-58020i1BZFPE..BZU300,340200705

sub16636-58021

16639ASPACER, IDLER PULLEY

main16639-58010i1BZFPE..BZU300,340200705

16649APLATE, IDLER PULLEY COVER

main16649-58010i1BZFPE..BZU300,340200705

1903

1228178020HANGER, ENGINE, NO.1

main12281-78020

6177637060STRENGTH, QUARTER PANEL HORIZONTAL, LOWER CENTER RH

main61776-37060

9010508335

main90105-08335

9010510361

main90105-10361

9011908B05

main90119-08B05

9011910571

main90119-10571

9011912344

main90119-12344

9017910201

main90179-10201

9017912024

main90179-12024

91512B1020

main91512-B1020

91512G1025

main91512-G1025

9164281225

main91642-81225

91642K1020

main91642-K1020

9415081000

main94150-81000

30 parts on this diagram · 5 diagrams in section
