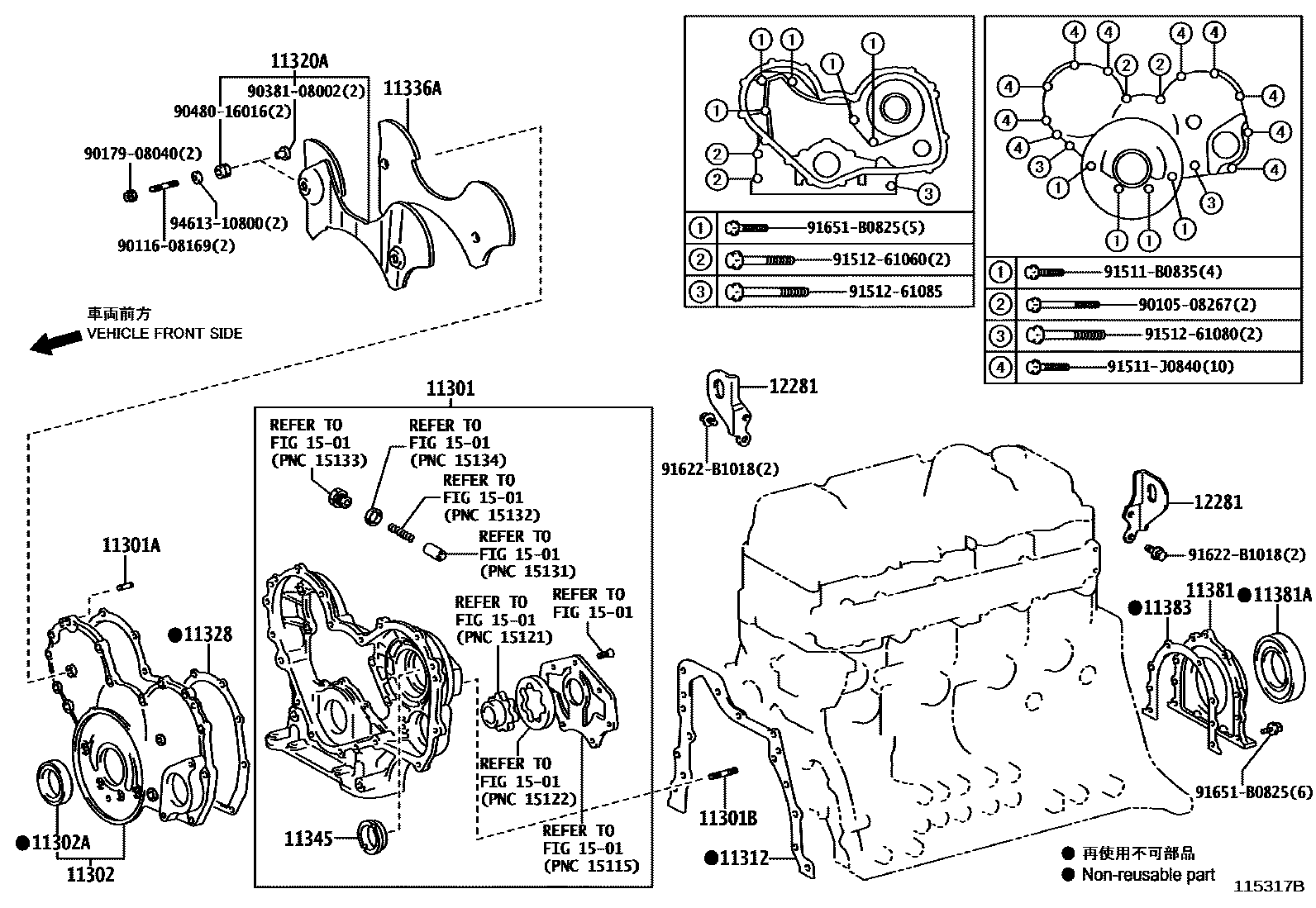

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-58012i1BZFPE..BZU300,340200705

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i1BZFPE..BZU300,340200705

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169i1BZFPE..BZU300,340200705

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-58011i1BZFPE..BZU300,340200705

main11310-75070i2TRFE..TRU300,340,500200705-200711

sub11310-75071

main11310-75071i2TRFE..TRU300,340,500200711-200902

sub11310-75073

main11310-75073i2TRFE..TRU300,340,500200902

sub11310-75074

sub91671-80840

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90033-11040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main90311-50013i1BZFPE..BZU300,340200705

11312GASKET, FRONT END PLATE

main11312-56040i1BZFPE..BZU300,340200705

main11312-78011iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subS1131-21170

11320ACOVER ASSY, TIMING GEAR, NO.2

main11320-58010i1BZFPE..BZU300,340200705

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-58010i1BZFPE..BZU300,340200705

11336AINSULATOR, TIMING GEAR COVER

main11336-58010i1BZFPE..BZU300,340200705

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i1BZFPE..BZU300,340200705

11381RETAINER, ENGINE REAR OIL SEAL

main11381-58011i1BZFPE..BZU300,340200705

main11381-75010i2TRFE..TRU300,340,500200705-200812

sub11381-75011

main11381-75011i2TRFE..TRU300,340,500200812

sub11381-75012

11381ASEAL, ENGINE REAR OIL

main90311-88005i2TRFE..TRU300,340,500200705

sub90311-88006

main90311-95011i1BZFPE..BZU300,340200705

main90311-99002iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

subSZ311-00004

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040i1BZFPE..BZU300,340200705

12281HANGER, ENGINE, NO.1

main12281-58010i1BZFPE..BZU300,340200705

1501

9010508267

main90105-08267

9011608169

main90116-08169

9017908040

main90179-08040

9038108002

main90381-08002

9048016016

main90480-16016

91511B0835

main91511-B0835

91511J0840

main91511-J0840

9151261060

main91512-61060

9151261080

main91512-61080

9151261085

main91512-61085

91622B1018

main91622-B1018

91651B0825

main91651-B0825

9461310800

main94613-10800

28 parts on this diagram · 6 diagrams in section
