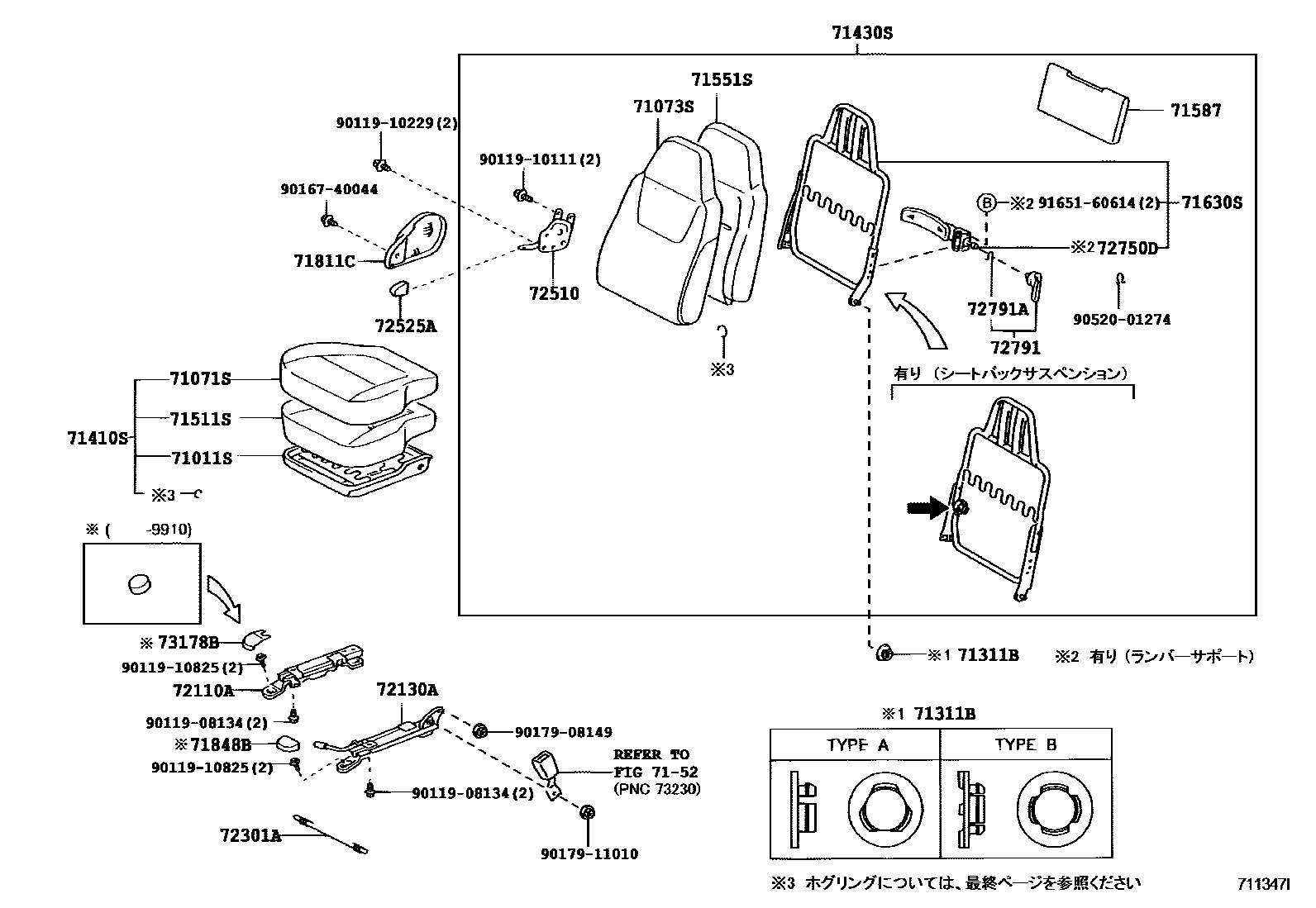

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-37010iXZU304,305,344200310-200406

main71610-37020iXZU362..4NO;XZU382..SCB..IV3199907-200406

main71610-37030iXZU306..5F..DSLL..IV3200210-200406

PLANT NO.C11,C21-C26,E11

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37440-B0iBU306,346,RZU340,XZU300,306,307,31#,32#,33#..SCB;BU301,RZU300,XZU301,302,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI)..(CBU,IV3)199905-200108

main71071-37440-B2iBU306,346,RZU340,XZU300,306,307,31#,32#,33#..SCB;BU301,RZU300,XZU301,302,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI)..(CBU,IV3)200108-200206

main71071-37510-B0iXZU301..20T..IV6;BU30#,346,RZU300,340,XZU30#,322,33#,34#,350,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3,IV6)199905-200107

main71071-37510-B3iXZU301..20T..IV6;BU30#,346,RZU300,340,XZU30#,322,33#,34#,350,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3,IV6)200107-200206

main71071-37530-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5199905-200206

main71071-37550-B4iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200206

main71071-37590-B0iRZU300..20T..LPG;XZU301,302,341,342..(T3,T4)..(CNG,LPG)200206-200306

main71071-37600-B1iXZU306..5F..DSLL..IV3200210-200406

main71071-37610-B0iXZU306..5F..DSLL..IV3200210-200406

main71071-37620-B0iXZU306..IV6200505-200610

MD.CHARCOAL,TRIM1#

main71071-37630-B0iXZU301..CBU;XZU301..(T3,T4,T5)..IV3;XZU304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3)200406-200610

main71071-37640-B0iXZU306,308..VAN200406-200610

main71071-37680-B0iXZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU331,340,341..(20T,295T,30T)..DSL;BU301,RZU300,XZU301,37#,382..DCB..(DSL,EFI);BU30#,346200206-200406

main71071-37690-B0iXZU300,302..T3;XZU301..295T..1NO;BU301,RZU300,XZU372,382..DCB;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,340,341,34200206-200406

main71071-37720-B0iXZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;XZU306,307,331,337,340,341,342,346,347..SCB..(20T,295T,200206-200406

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-37160-B0iRZU300,XZU304,306,308,334,346,378,388..DCB200406-200705

main71073-37610-B0iXZU307..03S199908-200009

main71073-37610-B3iBU30#,RZU300,XZU307,347,372,382..DCB200012-200206

main71073-37620-B2iBU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN199905-200012

main71073-37620-B4iBU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN200107-200206

main71073-37630-B4iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB199905-200206

main71073-37640-B3iXZU301..20T..IV6;BU30#,346,RZU300,340,XZU30#,322,33#,34#,350,362,372,382..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV6)199905-200206

main71073-37650-B2iBU306,346,RZU340,XZU300,306,307,31#,32#,33#..SCB;BU301,RZU300,XZU301,302,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI)..(CBU,IV3)199905-200206

main71073-37740-B0iXZU304,344..T3,T4,T5200310-200406

main71073-37750-B0iXZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU300,XZU306..SCB..(T2,T3,T4,T5)..(CBU,IV3);BZU300,340,RZU301,340,XZU304,305,308,31#,321,33#,34#,35#,368,378,388..SCB200406-200705

main71073-37760-B0iXZU304,344..T3,T4,T5200310-200406

main71073-37790-B0iXZU301,331..DSLL..IV4200309-200406

main71073-37800-B0iBU30#,RZU300,XZU307,347,372,382..DCB,VAN200206-200406

main71073-37810-B0iXZU301..20T..IV6;XZU306..SCB..(CBU,IV3);BZU300,340,RZU30#,340,XZU301,304,308,33#,34#,354,368,378,388..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3,IV6)200406-200705

main71073-37820-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,340,341,342,346,347..SCB..(20T,295T,30T200206-200406

main71073-37830-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,340,341,342,346,347..SCB..(20T,295T,30T200206-200406

main71073-37840-B0iXZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;XZU306,307,331,337,340,341,342,346,347..SCB..(20T,295T,200206-200406

main71073-37850-B0iXZU301..DM3..IV3200505-200610

MD.CHARCOAL,TRIM1#

main71073-37860-B0iXZU306,308..VAN200406-200610

main71073-37870-B0iRZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)200406-200705

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12051iXZU311..DCB199908-200206

main90386-12053iBU306,XZU307..VAN199905-200206

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37610-B0iBU30#,346,XZU30#,322,33#,34#,372,382..SCB..(T2,T3,T4,T5)..(20T,295T,30T)..WT..(DSL,DSLL)..(CBU,IV3)199905-200206

main71410-37630-B1iXZU382..SCB..IV3199907-200206

main71410-37640-B0iXZU362..4NO199907-200108

main71410-37640-B2iXZU362..4NO200108-200206

main71410-37680-B0iXZU382..SCB..IV3199907-200206

main71410-37700iBU306,XZU307,372,382..(03S,06S,T3)..20T199905-200206

main71410-37700-B0iBU30#,RZU300,XZU307,347..DCB199905-200206

main71410-37700-B3iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5199905-200206

main71410-37710iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5200204-200206

main71410-37710-B2iBU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3)199905-200206

main71410-37710-B3iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5199905-200204

main71410-37730-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5199905-200206

main71410-37810-B0iXZU301..30T..DSLL..IV3..1NO200309-200406

main71410-37820-B0iXZU306..5F..DSLL..IV3200210-200406

***,MEDIUM CHARCOAL,TRIM1#

main71410-37830-B0iXZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..DSL..(CBU,IV3);XZU300,302,307,322,33#,340,341,342,346,347,372,382..SCB..(T2,T3,T4200206-200406

main71410-37840-B0iXZU382..SCB..IV3200206-200406

main71410-37850-B0iXZU382..SCB..IV3200206-200406

main71410-37860-B0iXZU362..4NO200206-200406

main71410-3V020iXZU301,331..DSLL..IV4200309-200406

main71410-3V020-B1iBU30#,RZU300,XZU301,307,312,331,347,37#,382..(DCB,VAN)..(DSL,EFI)200206-200308

main71410-3V030iBU30#,RZU300,XZU307,347,372,382..DCB,VAN200308-200406

main71410-3V030-B1iBU30#,RZU300,XZU307,347,372,382..DCB,VAN200206-200308

main71410-3V060iXZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301,302..(T4,T5)..20T..WT;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU306,307,331,337,340,341,342,346,347..SCB..(20T,295T,30T).200308-200406

***

main71410-3V060-B0iXZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;XZU306,307,331,337,34#..SCB..(20T,295T,30T)..DSL200206-200308

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-37040-B2iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5199905-200105

main71040-37050-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5199905-200206

main71040-37060-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5199905-200206

main71040-37080-B0iBU306,XZU307..VAN199905-200206

main71040-37090-B0iBU306,XZU307..VAN199905-200206

main71040-37180-B0iXZU306..5F..DSLL..IV3200210-200406

main71040-37190-B0iXZU306..5F..DSLL..IV3200210-200406

main71040-37200-B0iXZU306..5F..DSLL..IV3200210-200406

main71040-37240-B0iXZU301,331..DSLL..IV4200309-200406

main71040-37270-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(20T,295T,30T)..WT..DSL200206-200308

main71040-37290-B0iXZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;XZU306,307,331,337,34#..SCB..(20T,295T,30T)..DSL200206-200308

main71040-37350-B0iBU30#,RZU300,XZU307,347,372,382..DCB200206-200406

main71040-37370iXZU300,302..T3;XZU301..295T..1NO;XZU301,302..(T4,T5)..20T..WT;XZU301..4FC..30T..(CBU,IV3)..1NO;BU30#,346,XZU306,307,33#,340,341,342,346,347..SCB..(20T,295T,30T)..WT200308-200406

main71040-37370-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(20T,295T,30T)..WT..DSL200206-200308

main71040-37500iBU306,XZU307..VAN200308-200406

main71040-37500-B0iBU306,XZU307..VAN200206-200308

main71040-37510iBU306,XZU307..VAN200308-200406

main71040-37510-B0iBU306,XZU307..VAN200206-200308

main71070-37250iXZU301..20T..IV6;BU30#,346,RZU300,340,XZU30#,322,33#,34#,350..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)199905-200206

main71430-37780-B2iXZU301..20T..IV6;BU301,XZU302..20T..ST;XZU301,302..(295T,30T)..DSL..(CBU,IV3)..1NO;BU306,346,XZU300,306,307,322,33#,340,341,346,347,350,362,372,382..SCB..(T2,T3,T4,200005-200108

main71430-37780-B3iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB200108-200206

main71430-37860iXZU301,331,37#,382..DCB199908-200206

main71430-37860-B0iBU30#,RZU300,XZU307,31#,347..DCB199905-200206

main71430-37870-B0iBU30#,XZU307,347,372,382..DCB200005-200206

main71430-37880-B1iBU30#,XZU307,347..DCB199905-199908

main71430-37880-B4iBU30#,RZU300,XZU307,347..DCB200012-200206

main71430-37890-B0iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5200105-200206

main71430-37890-B2iXZU300,302..T3;XZU301..295T..1NO;XZU301..30T..DSLL..IV3;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;BU30#,346,XZU306,307,33#,34#..SCB..(T2,T3,T4,T5200105-200206

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-37080iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

main71511-37110iXZU308..03S..4FC200505-200610

7152

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37100iXZU304,344..T3,T4,T5200310-200406

sub71551-25060

main71551-37110iXZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)199905-200406

main71551-37150iRZU300,XZU304,306,308,334,346,378,388..DCB200406

main71551-37160iXZU306..T5..4FC;XZU306..T5..DSLL199905-200406

main71551-37170iXZU306..T5..DSLL;XZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;XZU306,307,331,337,340,341,342,346,347..SCB.199905-200406

sub71551-25050

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37020×2iXZU382..SCB..IV3199907-200206

sub71587-37021

main71587-37030iXZU300,302..T3;XZU301..295T..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301,302..(T4,T5)..20T..WT..DSL;XZU301..T3..4FC..DSL..(CBU,IV3,IV4);BU301,RZU300,XZU301,31#,372,382199905-200406

PLANT NO.C11,C21-C26,E11

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-37030iXZU301..30T..DSLL..IV3..1NO200309-200406

sub71630-25050

main71630-37050iBU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DCB,SCB199905-200206

sub71630-37010

main71630-37060iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200406

sub71630-37020

main71630-37070iBU306,XZU307..VAN199905-200406

sub71630-37130

main71630-37090iXZU306..T5..DSLL;XZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..T3..4FC..(CBU,IV3);XZU301,302..(T4,T5)..20T..WT..DSL;XZU306,307,331,337,340,341,342,346,347..SCB.199905-200406

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37010-B0iXZU304,305,344200310-200406

MD.CHARCOAL,TRIM1#

sub71811-37011

71848BCAP, SEAT ADJUSTER COVER, RH

main71848-89101×2iBU30#,RZU300,XZU307,31#,347..DCB,VAN199905-200406

main72137-35050iXZU301,306..DSLL..IV3200206-200210

main72137-35050-B1iXZU304,305,344200310-200406

DK.CHARCOAL,TRIM1#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37020iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37020iXZU301..20T..DSLL200312-200406

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-37020iXZU368,378,388..SCB200406-200610

main72301-37030iXZU301..IV6..1NO;XZU306..T5..DSLL;XZU341..6F..295T;XZU351,352,362..DM2,DM7;XZU301,331..5F..DSLL..IV4;XZU341..(20T,30T)..(DSL,LPG);XZU301..(CNG,DSL,LPG)..(CBU,IV3,IV199905-200406

PLANT NO.P11

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-37020iXZU301..20T..DSLL200312-200406

main72510-37040iXZU306,308..VAN200406-200610

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37010-B0iXZU306..5F..DSLL..IV3200210-200406

MD.CHARCOAL,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-37030iXZU306,322..T5..4FC;XZU301..DM3..4FC..30T;XZU31#,321..SCB..(DM5,DM8)..20T;XZU301,306..(T3,T4,T5)..DSLL..IV3;XZU301,302,311,321..(DM5,DM7,T4)..DSL..(CBU,IV3)..1NO;BU199905-200206

72791LEVER, LUMBAR SUPPORT

main72791-12010-B9iXZU306,322..T5..4FC;XZU301..DM3..4FC..30T;XZU31#,321..SCB..(DM5,DM8)..20T;XZU301,306..(T3,T4,T5)..DSLL..IV3;XZU301,302,311,321..(DM5,DM7,T4)..DSL..(CBU,IV3)..1NO;BU199905-200206

MD.CHARCOAL,TRIM1#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01006iXZU306..5F..DSLL..IV3200210-200406

73178BCAP, SEAT BELT ANCHOR COVER

main72137-37010iXZU301,331..DSLL..IV4200210-200406

main72137-37010-B0iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

DK.CHARCOAL,TRIM1#

main73178-95J00×2iBU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-199910

9011908134

main90119-08134

9011910111

main90119-10111

9011910229

main90119-10229

9011910825

main90119-10825

9016740044

main90167-40044

9017908149

main90179-08149

9017911010

main90179-11010

9052001274

main90520-01274

9165160614

main91651-60614
