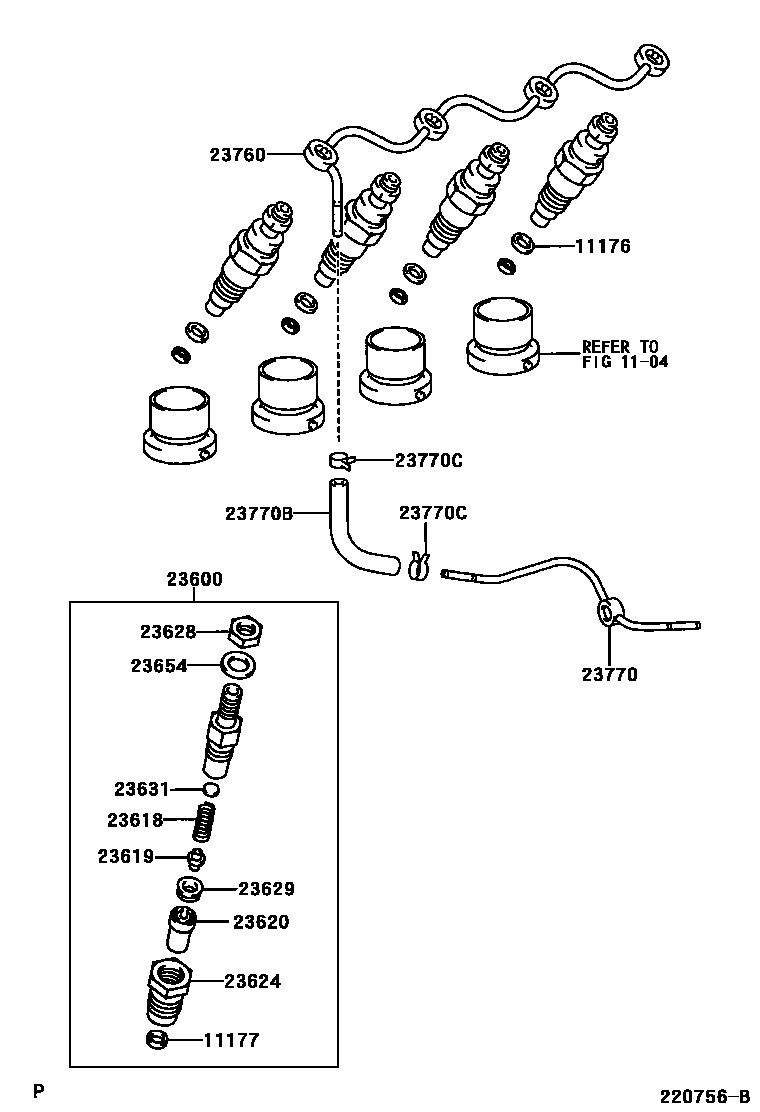

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1��������� ���� 0005 1��-�� ����� 0006 1����� �����

1104

11176SEAT, INJECTION NOZZLE

main11176-56010i4B..BU30#,346199905-200406

11177GASKET, INJECTION NOZZLE SEAT

main11177-56010i4B..BU30#,346199905-200406

main23682-78030iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200310-200406

sub23682-E0050

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59295i4B..BU30#,346199905-200406

main23600-78030iJ05C..XZU300,320,330,340,350199906-200009

sub23600-78031

main23600-78031iJ05C..XZU300,320,330,340,350200009-200406

subS2361-02162

main23600-78040iS05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200406

subS2361-02143

main23600-78070iS05D..XZU301,306,311,331,341,346,351..DSLL200210-200406

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-58110i4B..BU30#,346199905-200406

main23618-89101iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

subS2361-51270

23619PIN, NOZZLE HOLDER PRESSURE

main23619-58110i4B..BU30#,346199905-200406

main23619-89101iJ05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382199905-200406

subS2361-61310

23620NOZZLE ASSY

main23620-58110i4B..BU30#,346199905-200406

main23620-78070iS05D..XZU301,306,311,331,341,346,351..DSLL200210-200406

main23620-89103iS05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382199905-200004

sub23620-89105

main23620-89104iJ05C..XZU300,320,330,340,350199906-200009

sub23620-89106

main23620-89105iS05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3200004-200406

subS2365-01982

main23620-89106iJ05C..XZU300,320,330,340,350200009-200406

subS2365-01951

23624NUT, NOZZLE RETAINING

main23624-58110i4B..BU30#,346199905-200406

main23624-89101iS05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382200004-200406

subS2363-31880

main23624-89102iS05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382199905-200004

sub23624-89101

main23624-89103iJ05C..XZU300,330,340,350;S05D..XZU301,306,311,331,341,346,351..DSLL199906-200406

subS2363-32070

23628NUT(FOR RING PACKING SETTING)

main23628-58110i4B..BU30#,346199905-200406

main23628-89101iS05D..XZU301,306,311,331,341,346,351..DSLL200210-200406

main23628-89102iJ05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200406

subS2362-31500

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-58110i4B..BU30#,346199905-200406

main23629-89101iJ05C..XZU300,320,330,340,350199906-200406

subS2361-71620

main23629-89102iS05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382199905-200004

sub23629-89101

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-58110i4B..BU30#,346199905-200406

main23631-58111i4B..BU30#,346199905-200406

main23631-58112i4B..BU30#,346199905-200406

main23631-58113i4B..BU30#,346199905-200406

main23631-58114i4B..BU30#,346199905-200406

main23632-58110i4B..BU30#,346199905-200406

main23632-58111i4B..BU30#,346199905-200406

main23632-58112i4B..BU30#,346199905-200406

main23632-58113i4B..BU30#,346199905-200406

main23632-58114i4B..BU30#,346199905-200406

main23633-58110i4B..BU30#,346199905-200406

main23633-58111i4B..BU30#,346199905-200406

main23633-58112i4B..BU30#,346199905-200406

main23633-58113i4B..BU30#,346199905-200406

23654WASHER(FOR RING PACKING)

main23654-58110i4B..BU30#,346199905-200406

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78010iN04C..XZU304,305,308,314,334,338,344,348,354,368,378,388200310-200705

subS2308-12630

main23708-78020iS05D..XZU301,306,311,321,331,336,341,346,351200406-200610

sub23708-78021

main23760-56040i4B..BU30#,346199905-200406

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-58070i4B..BU30#,346199905-200406

23770BHOSE, FUEL

main95333-04020i4B..BU30#,346199905-200406

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-41000i4B..BU30#,346199905-200406

16 parts on this diagram · 6 diagrams in section
