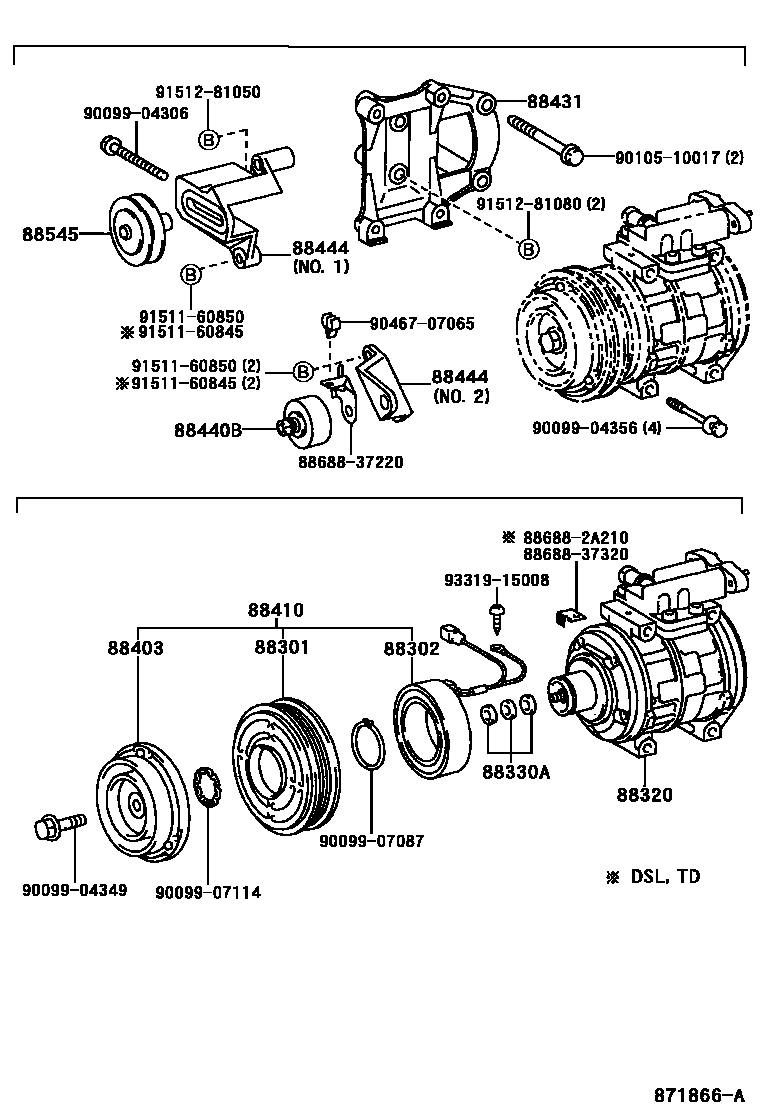

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0004 1������ 0005 1 0006 1 0007 1 0008 1�����

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iXZU130,140199510-199905

main88412-22240iBU132..T3,T4;BU10#,112,12#,137,14#,202,212,222,RZU100..DSL,LPGB,TD199505

main88412-26030iBU162,172,182,297199505-199906

main88412-95J00iRZU100,140..EFI,LPG199505

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22300iBU102,142,RZU100..LPGB199605

main88411-22310iRZU100199505-199708

main88411-2A030iRZU100,140..EFI,LPG199708

main88411-37020iBU10#,112,12#,13#,14#,202,212,222..DSL199505-199906

main88411-37030iXZU130,140199510-199905

main88411-60090iBU162,172,182,297199505-199906

88320COMPRESSOR ASSY, COOLER

main88320-36380iBU162,172,182199505-199906

sub88320-35H92

main88320-36460iBU162..03S..IV3;BU182..T3..20T..IV3199505-199906

sub88320-27H90

main88320-37040iBU10#,112,12#,13#,14#,202,212,222,RZU100..DSL,LPGB,TD199505-200005

sub88320-3AH90

main88320-37050iRZU100,140..EFI,LPG199505-200005

sub88320-35H92

main88320-37060iXZU130,140199510-199905

sub88320-43H90

main88320-65020iBU297199701-199905

sub88320-26H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iBU132..T3,T4;BU10#,112,12#,137,14#,202,212,222,RZU100,XZU130,140..DSL,LPGB,TD199505

main88335-14020iBU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD199505

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iBU10#,112,12#,13#,14#,202,212,222,RZU100..DSL,LPGB,TD199505

main88403-12040iXZU130,140199510-199905

main88403-30290iBU162,172,182,297,RZU100,140..DSL,EFI,LPG,TD199505

88410CLUTCH ASSY, MAGNET

main88410-22470iBU102,142,RZU100..LPGB199605

main88410-34020iRZU100,140..EFI,LPG199505

main88410-36440iBU162..03S..IV3;BU182..T3..20T..IV3199505-199906

main88410-37020iBU162,172,182,297199505-199906

main88410-37030iBU10#,112,12#,13#,14#,202,212,222..DSL,TD199505-199906

main88410-37040iXZU130,140199510-199905

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88345-37010iBU102,212..20T..(4FC,6F)199905-199906

main88431-34020iRZU100,140..EFI,LPG199505

main88431-36500iBU162,172,182199505-199906

main88431-36541iBU162..03S..IV3;BU182..T3..20T..IV3199505-199803

main88431-36542iBU162..03S..IV3;BU182..T3..20T..IV3199803-199906

main88431-37020iBU297199701-199905

main88431-37030iBU102..IV4199602-199609

main88431-37031iBU10#,112,12#,132,14#,202,212,222..CBU,IV3199602-199609

main88431-37051iBU162..03S..IV3;BU182..T3..20T..IV3199505-199906

main88431-37060iXZU130,140199510-199905

88440BPULLEY ASSY, IDLE

main44350-36040iBU297199701-199905

main88440-12160iBU162,172,182199505-199612

main88440-20160iRZU100,140..EFI,LPG199505

main88440-26070iBU10#,112,12#,13#,14#,202,212,222,RZU100..DSL,LPGB,TD199505

88444BRACKET, IDLE PULLEY

main88444-37020iBU297199701-199905

main88444-37030iBU132..TL4;BU212..T3..DSL..IV3;BU212..(T2,T4)..MTM..DSL..IV3199603-199906

main88444-37040iBU132..T3,T4;BU10#,112,12#,137,14#,202,212,222,RZU100..DSL,LPGB,TD199505-200005

main88444-37060iBU100,102..T4..20T;BU107..T2..IV3..5F;BU107..(T3,T4)..IV3;BU105,137..03S..IV3..5F;BU142,147..(T3,T4)..DSL..IV3..5F199708-199906

main88444-37070iBU212..T3..DSL..IV3;BU212..(T2,T4)..MTM..DSL..IV3199505-199906

88545PULLEY ASSY, IDLE

main88440-26090iBU10#,112,12#,13#,14#,202,212,222,RZU100..DSL,LPGB,TD199505

main88440-37020iXZU130,140199510-199905

886882A210BRACKET, COOLER DIAPHRAGM

main88688-2A210

8868837220BRACKET, COOLER DIAPHRAGM

main88688-37220

8868837320BRACKET, COOLER DIAPHRAGM

main88688-37320

9009904306

main90099-04306

9009904349

main90099-04349

9009904356

main90099-04356

9009907087

main90099-07087

9009907114

main90099-07114

9010510017

main90105-10017

9046707065

main90467-07065

9151160845

main91511-60845

9151160850

main91511-60850

9151281050

main91512-81050

9151281080

main91512-81080

9331915008

main93319-15008

25 parts on this diagram · 7 diagrams in section
