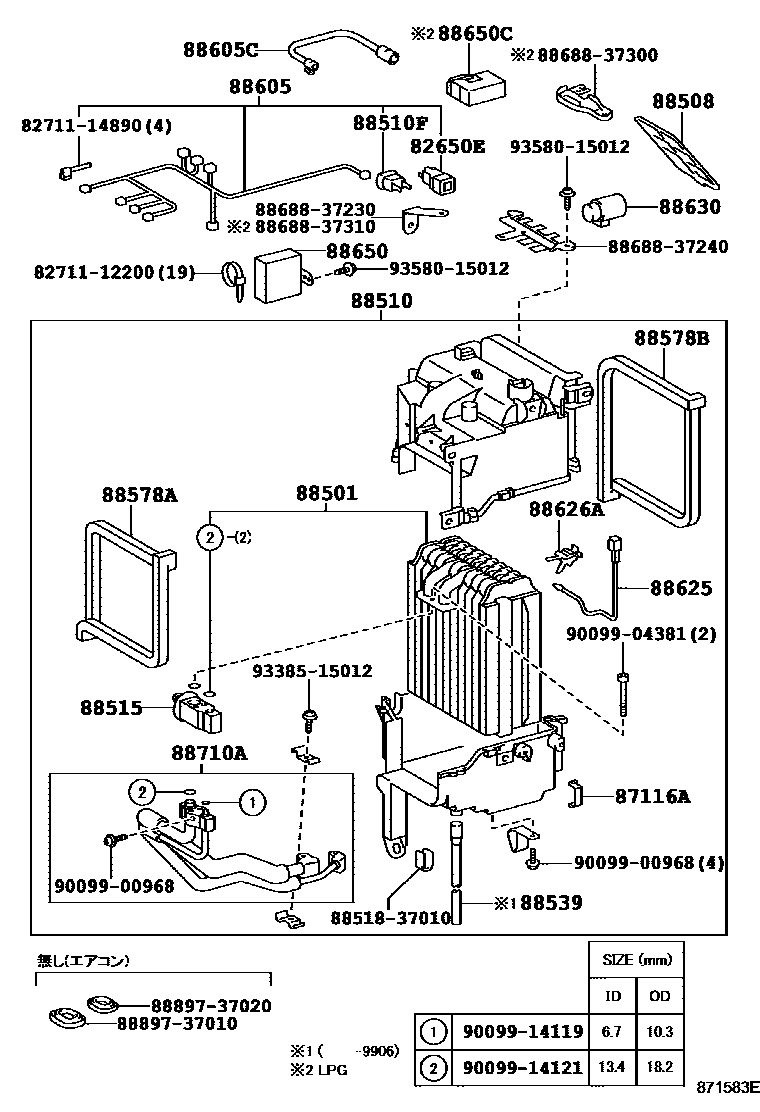

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82650EBREAKER ASSY, WIRING CIRCUIT

main82650-12020iRZU100..LPG;BU162,182..TR..20T..IV3;BU102,172,XZU130..DM7,TW1199505-199905

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35020iBU162,182..TR..20T..IV3199505-199610

sub88501-35021

main88501-35021iBU105..T2;BU132..IV3;BU107..T2,T4;BU107..06S..5F;BU132..CBU..5F;BU102..20T..4FC;BU147..T2,T4,TW4;BU102,137..T4..20T..5F;RZU100..DM6,T2,T3,T4,TW1,TW4;BU100,112,12#,1199505-199905

88508FILTER SUB-ASSY, CLEAN AIR

main88508-37020iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-199905

88510UNIT ASSY, COOLER

main88510-25060iBU10#,142,162,182,212,RZU100,140199905

main88510-37050iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130199505-199905

sub88510-25060

main88510-37051iBU102..T4;BU100,142,162,182,212..(T3,T4)..20T199708-199906

sub88510-25060

88510FHOLDER, FUSE

main82630-95J03iBU142..4FC;BU102..T2..4FC;BU105..03S..IV3;BU182..T3..20T..IV3;BU100,XZU130..DM7,T4;BU142..(T3,T4)..DSL..IV3..5F;BU102,132..(T3,T4)..30T..4FC;BU102,162..(T4,TW1)..20199505-199905

88515VALVE, COOLER EXPANSION

main88515-20100iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-26150iBU162,182199505-199906

main88539-26150iBU100,140199505-199905

main88539-37020iBU297199701-199905

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400iBU162..03S..IV3;BU182..T3..20T..IV3199505

88578BPACKING, COOLING UNIT, NO.1

main88578-20470iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-25080iRZU100..LPG199505

main88605-37160iBU100,140199505-199905

main88605-37160iBU100..TR..03S..WT..IV3;BU102,105,107,112,12#,13#,142,145,147,162,172,182,XZU130,140..DSL199603-199906

main88605-37170iBU202,212,222,297199505-199906

main88605-37180iRZU100,140..EFI199505

main88605-37210iBU102,142,RZU100..LPGB199605

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-37200iBU162..03S..IV3;BU182..T3..20T..IV3199505

88625THERMISTOR, COOLER, NO.1

main88625-3A020iBU102,112,12#,132,142,162,172,182,202,212,222,RZU100,XZU130199505-199905

sub88625-3A090

main88625-3A020iBU100..TR..03S..WT..IV3;BU102,105,107,112,12#,13#,142,145,147,162,172,182,202,212,222,297,RZU100,140,XZU130,140199603

sub88625-3A090

88626AHOLDER, THERMISTOR

main88626-28010iBU172..30T;BU172..05S;BU10#,112,12#,132,14#,162,182,202,212,222,RZU100,XZU130199505-199603

88630RELAY ASSY, COOLER

main88630-37010iBU132,297..TL4,TW1199701-199905

main88630-37060iBU100,140199505-199905

main88630-37060iBU132..T3,T4;BU100..TR..03S..WT..IV3;BU102,105,107,112,12#,137,142,145,147,162,172,182,202,212,222,XZU130,140..DSL,TD199603-199906

main88630-95702iBU102,142,RZU100,140..EFI,LPG,LPGB199505

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-37020iBU132,297..TL4,TW1199701-199905

main88650-37050iBU102,112,12#,132,142,162,172,182,202,212,222,XZU130199505-199905

main88650-37050iBU132..T3,T4;BU100..TR..03S..WT..IV3;BU102,105,107,112,12#,137,142,145,147,162,172,182,202,212,222,XZU130,140..DSL,TD199603-199906

main88650-37070iRZU100,140..EFI199505

main88650-37080iRZU100..LPG199505

main88650-37100iBU102,142,RZU100..LPGB199605

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-37050iBU297199701-199905

main88650-37090iBU102,142,RZU100..LPGB199605

88710ATUBE ASSY, AIR CONDITIONER

main88710-37150iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130199505-199708

sub88710-37190

main88710-37190iBU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199708-199906

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14890

8851837010HOLDER, COOLING UNIT DOOR

main88518-37010

8868837230BRACKET, COOLER DIAPHRAGM

main88688-37230

8868837240BRACKET, COOLER DIAPHRAGM

main88688-37240

8868837300BRACKET, COOLER DIAPHRAGM

main88688-37300

8868837310BRACKET, COOLER DIAPHRAGM

main88688-37310

8889737010VALVE, COOLER MAGNET

main88897-37010

8889737020VALVE, COOLER MAGNET

main88897-37020

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9338515012

main93385-15012

9358015012

main93580-15012

33 parts on this diagram · 2 diagrams in section
