INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-37010-B1iBU142,RZU100..03S..(EFI,LPG,LPGB)199505-199610

main81240-37020-B0iBU102,132,142..(T2,T4)..20T199610-199906

LT.GRAY,TRIM1#

main81240-37030-B0iBU102,142,RZU100,140..03S..(EFI,LPG,LPGB)199610-200005

LT.GRAY,TRIM1#

main81240-95014-B0iBU10#,142,147,172,212,297..05S,06S,07S199505-199905

LT.GRAY,TRIM1#

main81240-95401×2iBU12#199505-199905

main81240-95404-B0iBU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL199505-199610

main81240-95405-B0iBU202,212,222..03S199505-199610

main81240-95704-B0iRZU100..06S199505-200005

BLUEISH GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11004iRZU100..06S199505

main90981-11033×2iBU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S199505-199610

main90981-11053iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199610

main90981-16019iBU12#199505-199905

81241LENS, ROOM LAMP, NO.1

main81241-37020iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199610-200005

sub81241-37021

main81241-95013iBU10#,142,147,172,212,297,RZU100..05S,06S,07S199505-200005

main81241-95A02×2iBU12#199505-199905

main81241-95J00iBU10#,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S199505-199610

81242GASKET, ROOM LAMP, NO.1

main81242-37040iBU10#,112,132,14#,162,172,182,RZU100,XZU130..02S,03S199608-199610

main81242-95400iBU10#,112,132,14#,162,172,182,XZU130..(02S,03S)..DSL199606-199608

81248COVER, ROOM LAMP, NO.1

main81247-95A02×2iBU12#199505-199905

main81248-95401×4iBU12#199505-199905

81365AKNOB, ROOM LAMP SWITCH

main81365-37010-B0iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199610-200005

LT.GRAY,TRIM1#

81952CCOVER, REAR LAMP

main81952-37020iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199610

9015040004

main90150-40004

9015950087

main90159-50087

9321016016

main93210-16016

9322944030

main93229-44030

9351013008

main93510-13008

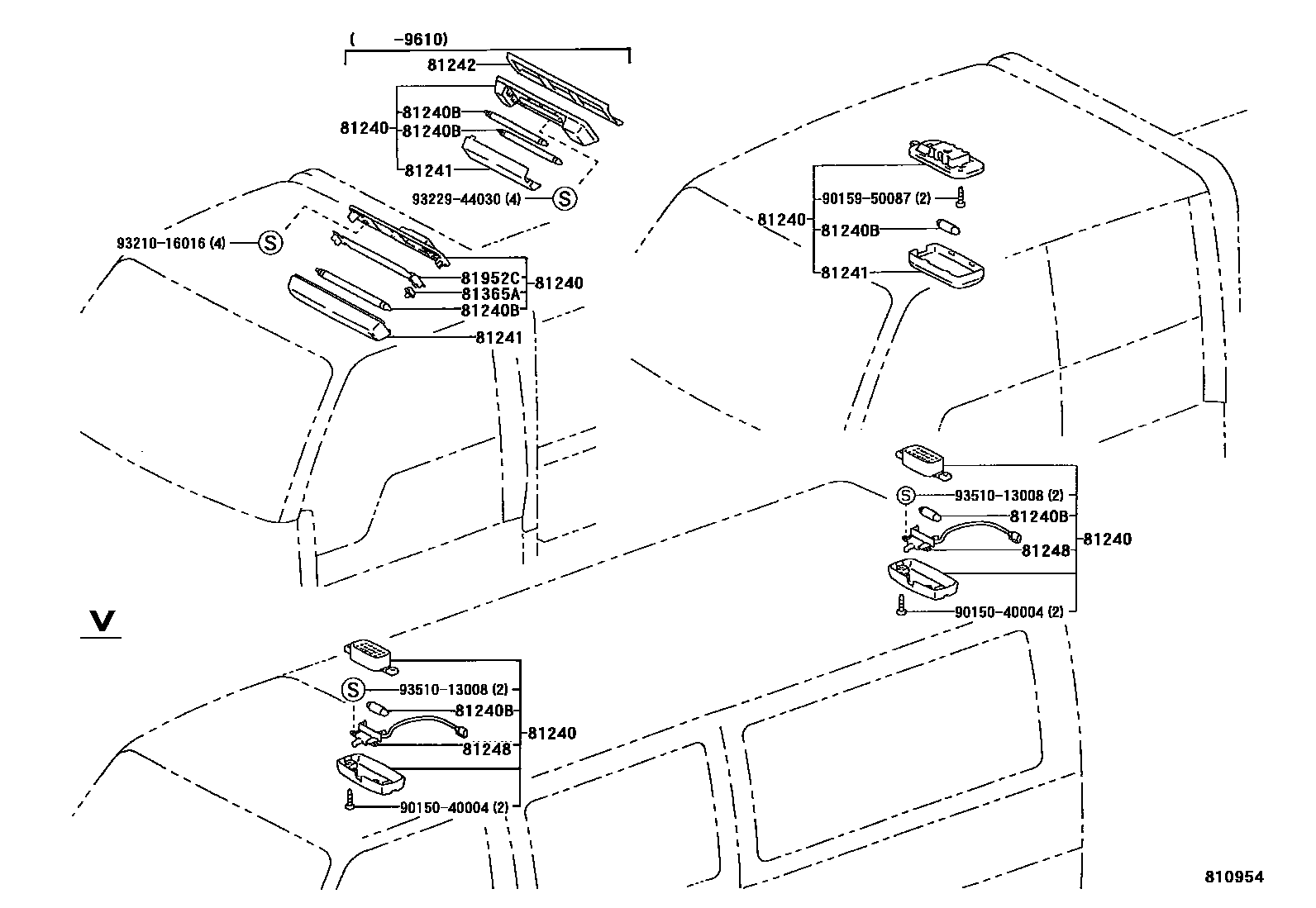

12 parts on this diagram · 1 diagram in section
