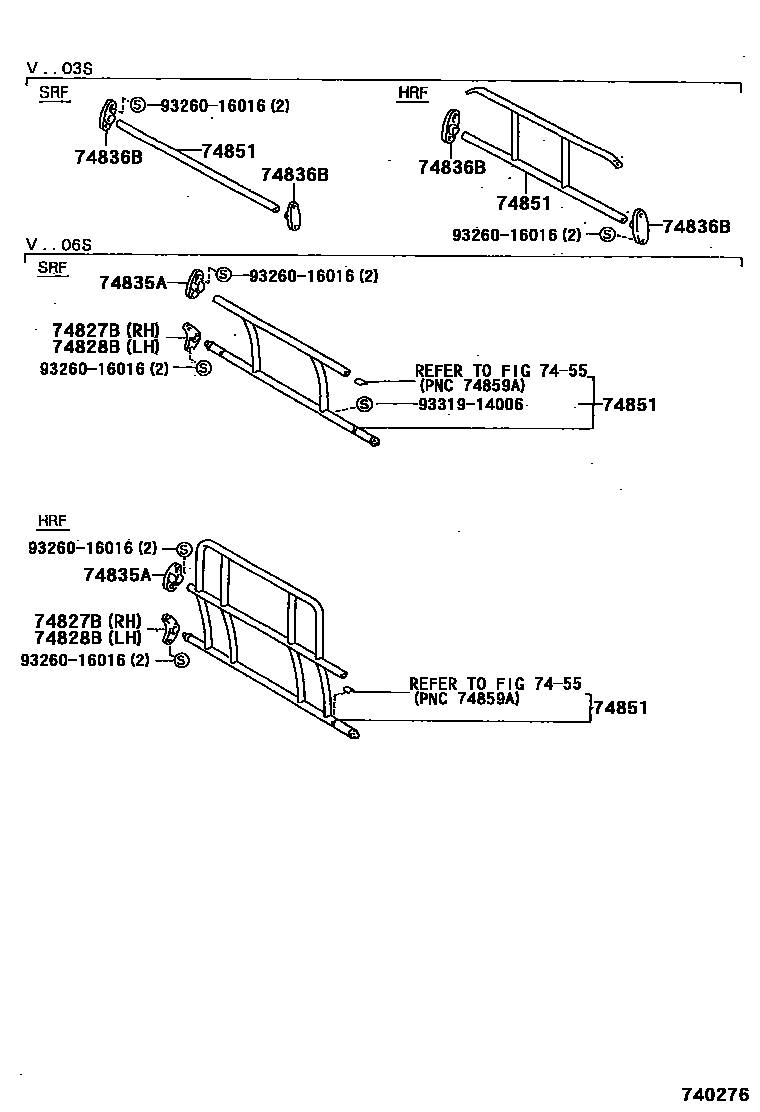

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1

7455

74827BBRACKET, SEPARATOR BAR, RH

main74827-92600-C0×2iBU120..06S199505-199905

BLACK,TRIM1#

74828BBRACKET, SEPARATOR BAR, LH

main74828-92600-C0×2iBU120..06S199505-199905

BLACK,TRIM1#

74835ABRACKET, SEPARATOR

main74835-92602-C0×4iBU120..06S199505-199905

BLACK,TRIM1#

74836BBRACKET, SEPARATOR BAR, NO.2

main74836-92602-C0×2iBU12#..03S199505-199905

BLACK,TRIM1#

74851BAR, SEPARATOR

main74808-92601iBU120..03S199505-199905

main74851-92605iBU12#..03S199505-199905

main74860-92126iBU120..06S199505-199905

main74860-92626iBU120..06S199505-199905

9326016016

main93260-16016

9331914006

main93319-14006

8 parts on this diagram · 2 diagrams in section
