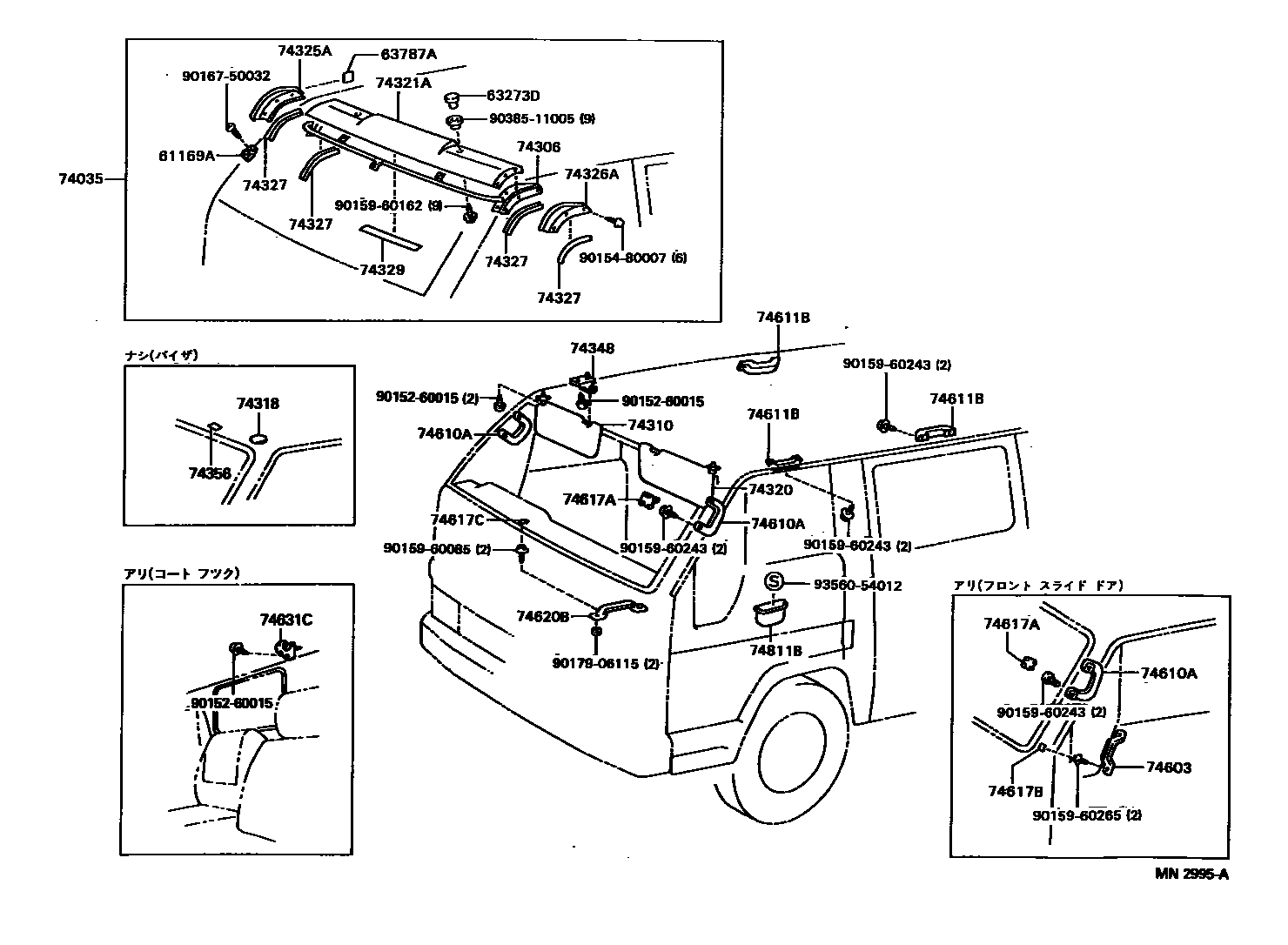

ARMREST & VISOR

61169ASPACER, ANTENNA HOLDER

main61169-95400iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S,06S)..(CBU,IV3)199505

63273DRETAINER, ROOF WINDOW HINGE

main63273-95701iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S,06S)..(CBU,IV3)199505

63787APAD, ROOF AIR DEFLECTOR, NO.1

main63787-95400iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S,06S)..(CBU,IV3)199505

74035FRONT VISOR SET

main74035-37010iBU102..T5..CBU;RZU100..DM6..LPG;BU142..T3..20T..CBU..5F;RZU100..(DM6,T4)..EFI..IV3;BU10#,132,14#,162,172,182..(DM6,T2,T3,T4,T5)..WT..IV3199505-199708

main74035-37010iBU142..CBU..4FC;BU142..(T2,T4)..CBU..5F;BU140,172,182..(02S,03S)..CBU;BU102,142..T3..(275T,30T)..CBU;RZU100,XZU130..(DM7,T3,T4)..(DSL,LPG)199505-199708

***

main74035-95402iBU112..30T..IV3;BU147..06S..CBU;BU182..T3..20T..IV3;RZU100..20T..LPG..IV3;BU102,142,145,147..IV3;BU102,142..20T..CBU..5F;BU100,105,107,112,137,140,162..175T,20T;BU1199505-199708

main74035-95402iBU100,102..ST..IV3;BU100,107..06S..20T..IV3;BU102..TR..03S..20T..CBU;RZU100..(T2,T3)..EFI..IV3;BU102,142..DM2,DM3,DM5,TW4;BU112,147,162..(DM5,DM7,DM8,T3,TW4)..20T;B199505-199708

***

74306SUPPORT, SUB-ASSY, FRONT VISOR

main74306-37010iBU132..TL4;BU142..CBU..4FC;BU112,142..30T..CBU;RZU100..30T..LPG..IV3;BU172,182,XZU130..02S,03S;BU102,140,147,RZU100..(T2,T3,T4)..WT..(DSL,LPG)..CBU199505-199708

main74306-95400iBU13#..T3,T4;BU102..T5..CBU;BU112..30T..IV3;BU142..20T..CBU..5F;RZU100..(DM6,T4)..IV3;BU10#,14#,162..(DM6,T2,T3,T4,T5)..WT..IV3199505-199708

main74306-95400iBU100,102..ST..IV3;BU100,107..06S..20T..IV3;BU102..TR..03S..20T..CBU;RZU100..(T2,T3)..EFI..IV3;BU102,142..DM2,DM3,DM5,TW4;BU112,147,162..(DM5,DM7,DM8,T3,TW4)..20T;B199505-199708

74310VISOR ASSY, RH

main74310-25010-B0iBU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130199505-200005

LT. GRAY,TRIM1#

main74310-37010-B0iBU212..(06S,07S)..6F;BU202,212,222,297..03S,05S199505-199906

LT. GRAY,TRIM1#

main74310-37020-B0iBU102..T5;BU100..WT..CBU;BU122,140..CBU;BU142..30T..DSL..5F199703-200005

main74310-37030-B0iBU212,222..5F199703-199906

74318COVER, VISOR BRACKET, LH

main74318-25010-B0iRZU100;BU10#,112,13#,14#,162,172,182,202,212,222..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TL4,TW2,TW4)..(02S,03S,06S)199505-199708

LT.GRAY,TRIM1#

sub74318-25010

74320VISOR ASSY, LH

main74320-25010-B0iBU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130199505-200005

LT. GRAY,TRIM1#

main74320-37010-B0iBU212..(06S,07S)..6F;BU202,212,222,297..03S,05S199505-199906

LT. GRAY,TRIM1#

74321AVISOR, FRONT

main74321-95402iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S,06S)..(CBU,IV3)199505

74325ASUPPORT, FRONT VISOR, NO.1

main74325-37010iBU142..CBU..4FC;BU142..(T2,T4)..CBU..5F;BU140,172,182..(02S,03S)..CBU;BU102,142..T3..(275T,30T)..CBU;RZU100,XZU130..(DM7,T3,T4)..(DSL,LPG)199505-199708

main74325-95401iBU100,102..ST..IV3;BU100,107..06S..20T..IV3;BU102..TR..03S..20T..CBU;RZU100..(T2,T3)..EFI..IV3;BU102,142..DM2,DM3,DM5,TW4;BU112,147,162..(DM5,DM7,DM8,T3,TW4)..20T;B199505-199708

main74325-95401iBU102..T5..CBU;RZU100..DM6..LPG;BU142..T3..20T..CBU..5F;RZU100..(DM6,T4)..EFI..IV3;BU10#,132,14#,162,172,182..(DM6,T2,T3,T4,T5)..WT..IV3199505-199708

74326ASUPPORT, FRONT VISOR, NO.2

main74326-37010iBU142..CBU..4FC;BU142..(T2,T4)..CBU..5F;BU140,172,182..(02S,03S)..CBU;BU102,142..T3..(275T,30T)..CBU;RZU100,XZU130..(DM7,T3,T4)..(DSL,LPG)199505-199708

main74326-95400iBU102..T5..CBU;RZU100..DM6..LPG;BU142..T3..20T..CBU..5F;RZU100..(DM6,T4)..EFI..IV3;BU10#,132,14#,162,172,182..(DM6,T2,T3,T4,T5)..WT..IV3199505-199708

main74326-95400iBU100,102..ST..IV3;BU100,107..06S..20T..IV3;BU102..TR..03S..20T..CBU;RZU100..(T2,T3)..EFI..IV3;BU102,142..DM2,DM3,DM5,TW4;BU112,147,162..(DM5,DM7,DM8,T3,TW4)..20T;B199505-199708

74327PAD, FRONT VISOR, NO.1

main74327-95400iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S,06S)..(CBU,IV3)199505

74329PAD, FRONT VISOR, NO.3

main74329-95400iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S,06S)..(CBU,IV3)199505

74348HOLDER, VISOR

main74348-25010-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130199505-200005

LT.GRAY,TRIM1#

main74348-25010-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130199505-200005

74356COVER, VISOR HOLDER HOLE

main74356-25010-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130199505-200005

LT.GRAY,TRIM1#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-12030-B0iBU100,102,RZU100..DM6199505

GRAY,TRIM1#

sub74610-12030

sub74610-16010

sub74603-16010

74610AGRIP SUB-ASSY, ASSIST

main74610-95404-B0iBU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

GRAY,TRIM1#

sub74610-95404

sub74610-95405

main74620-87001-B0iBU12#199505-199905

GRAY,TRIM1#

sub74620-87001

74611BGRIP, ASSIST

main74611-92601-B0iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199505-200005

GRAY,TRIM1#

sub74611-92601

74617APLUG, ASSIST GRIP

main74617-95J00-B0iBU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

GRAY,TRIM1#

sub74617-95J00

74617BPLUG, DOOR ASSIST GRIP

main74617-16010-B2iBU100,102,RZU100..DM6199505

GRAY,TRIM1#

sub74617-16010

74617CPLUG, ASSIST GRIP

main74617-16010-B2iBU222..T3;BU222..T4..TD;BU132,RZU100..03S..5F;BU10#,112,120,14#,202,212199505-199511

GRAY,TRIM1#

sub74617-16010

74620BGRIP ASSY, ASSIST, REAR

main74610-20040-B0iBU222..T3;BU222..T4..TD;BU132,RZU100..03S..5F;BU10#,112,120,14#,202,212199505-199511

GRAY,TRIM1#

sub74610-20040

74631CHOOK, COAT

main74348-12010-B0iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199505

GRAY,TRIM1#

sub74348-12010

sub74348-30010

74811BHANDLE, DOOR PULL

main74811-87001-B0iBU100,102,RZU100..DM6199505-200005

sub74811-87001

main74811-87001-B0iBU100,102,RZU100..DM6199505-200005

GRAY,TRIM1#

sub74811-87001

9015260015

main90152-60015

9015480007

main90154-80007

9015960085

main90159-60085

9015960162

main90159-60162

9015960243

main90159-60243

9015960265

main90159-60265

9016750032

main90167-50032

9017906115

main90179-06115

9038511005

main90385-11005

9356054012

main93560-54012

34 parts on this diagram · 1 diagram in section
