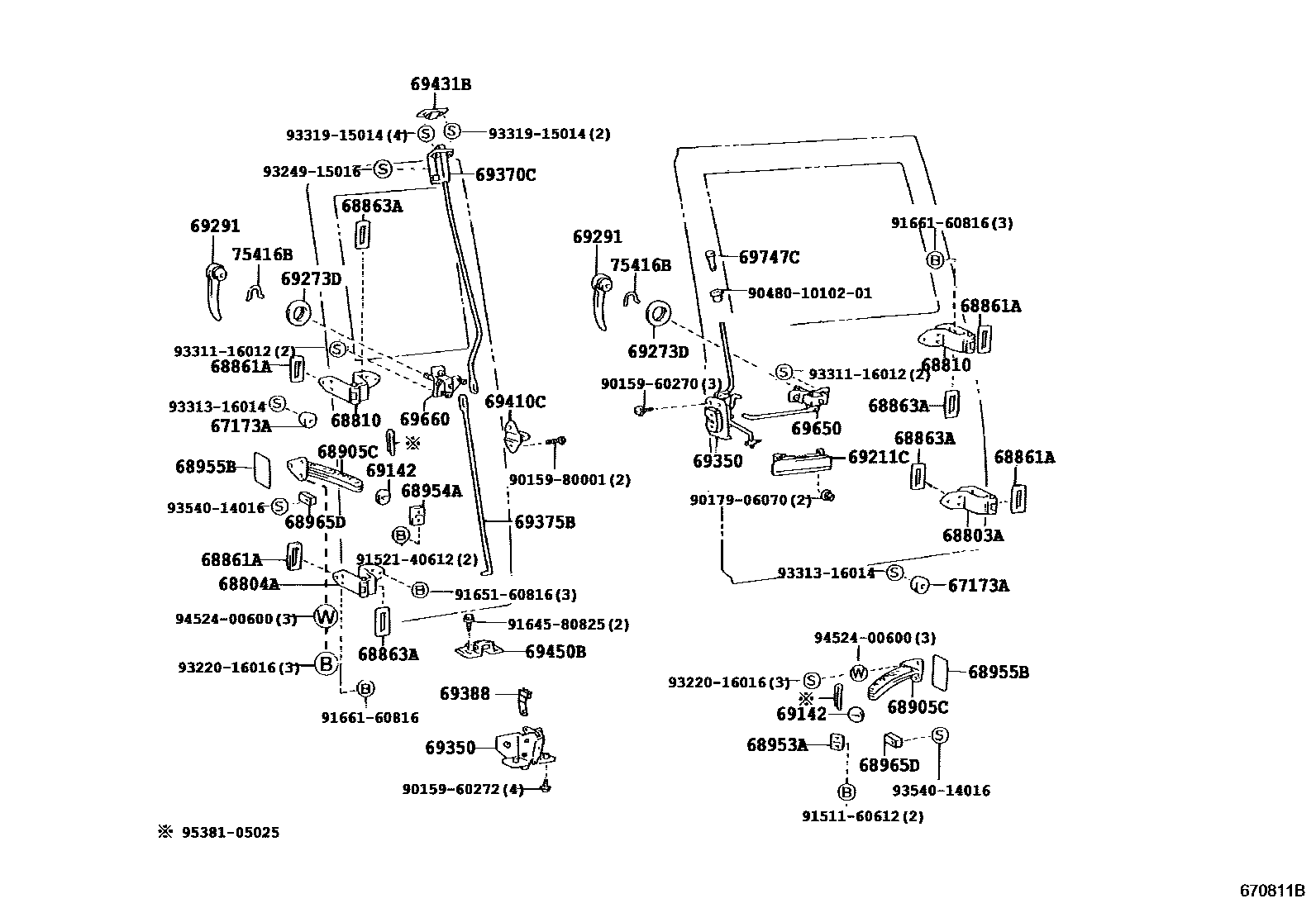

BACK DOOR LOCK & HINGE
67173ACUSHION
68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH
68804AHINGE SUB-ASSY, BACK DOOR, LOWER LH
68810HINGE ASSY, BACK DOOR, UPPER
68861APAD, BACK DOOR HINGE
68863APAD, BACK DOOR HINGE
68905CSTOPPER SUB-ASSY, BACK DOOR OPEN
68953APLATE, BACK DOOR OPEN STOPPER, RH
68954APLATE, BACK DOOR OPEN STOPPER, LH
68955BSILENCER, BACK DOOR OPEN STOPPER
68965DGUIDE, BACK DOOR OPEN STOPPER, NO.2
69142CUSHION, DOOR OPEN STOPPER
69211CHANDLE, BACK DOOR OUTSIDE
69273DPLATE, DOOR INSIDE
69291HANDLE ASSY, BACK DOOR INSIDE
69350LOCK ASSY, BACK DOOR
UPPER
LOWER
69370CLOCK ASSY, BACK DOOR, UPPER
69375BLINK, BACK DOOR LOWER
69388SNAP, ROD(FOR DOOR LOCK)
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69431BCHECK, BACK DOOR
69450BSTRIKER ASSY, BACK DOOR
69650CONTROL ASSY, BACK DOOR LOCK REMOTE, RH
69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH
69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)
75416BRING, SNAP (FOR BACK DOOR INSIDE HANDLE)
9015960270
main90159-60270
9015960272
main90159-60272
9015980001
main90159-80001
9017906070
main90179-06070
904801010201
main90480-1010201
9151160612
main91511-60612
9152140612
main91521-40612
9164580825
main91645-80825
9165160816
main91651-60816
9166160816
main91661-60816
9322016016
main93220-16016
9324915016
main93249-15016
9331116012
main93311-16012
9331316014
main93313-16014
9331915014
main93319-15014
9354014016
main93540-14016
9452400600
main94524-00600
9538105025
main95381-05025
44 parts on this diagram · 1 diagram in section
