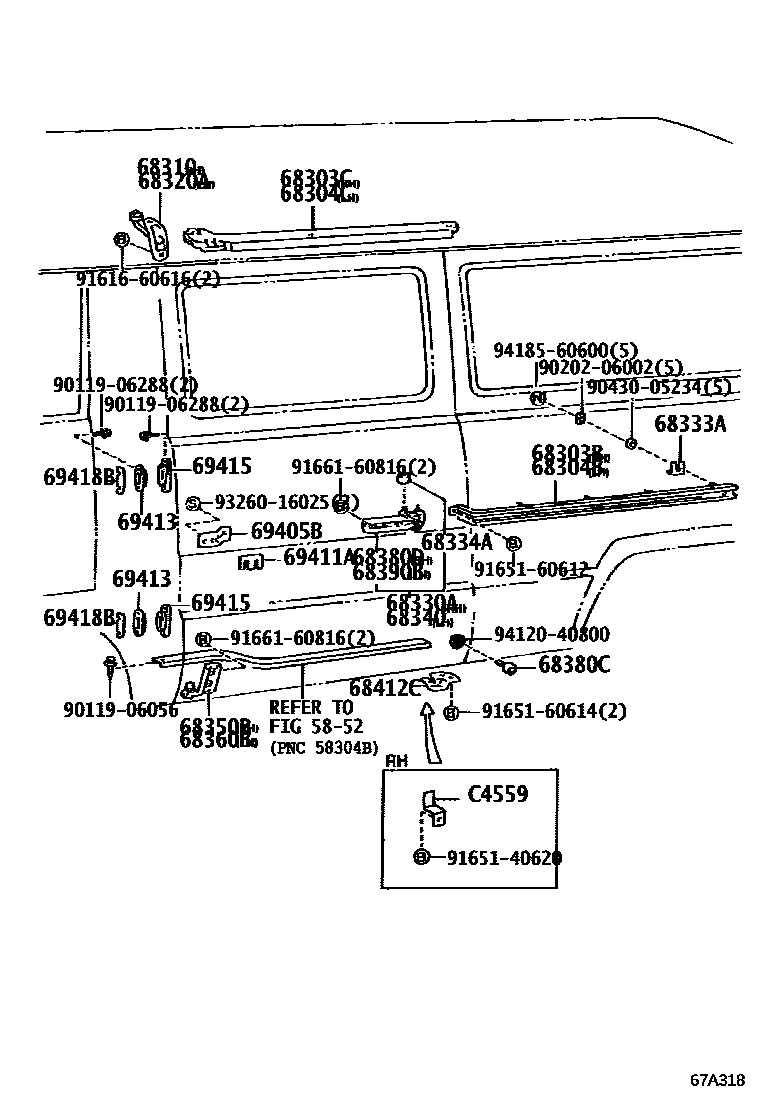

SLIDE ROLLER & RAIL
5852
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303CBRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL, RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304CBRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL, LH
68310ROLLER ASSY, SLIDE DOOR, UPPER
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
68330AROLLER ASSY, SLIDE
68333ASPACER, SLIDE DOOR CENTER RAIL
68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE
68340ROLLER ASSY, SLIDE, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68380CBUMPER, HOOD, REAR
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68390BHINGE ASSY, SLIDE, LH
68412CGUARD, SLIDE DOOR LOWER RAIL, REAR LH
69405BSTOP SUB-ASSY, SLIDE DOOR OPEN
69411ASPACER, SLIDE DOOR OPEN STOP
69413STOP, SLIDE DOOR DOWN MALE
69415STOPPER, SLIDE DOOR DOWN FEMALE
69418BSHIM, SLIDE DOOR DOWN STOP MALE
C4559COVER, SLIDE DOOR LOWER RAIL, REAR
9011906056
main90119-06056
9011906288
main90119-06288
9020206002
main90202-06002
9043005234
main90430-05234
9161660616
main91616-60616
9165140620
main91651-40620
9165160612
main91651-60612
9165160614
main91651-60614
9166160816
main91661-60816
9326016025
main93260-16025
9412040800
main94120-40800
9418560600
main94185-60600
35 parts on this diagram · 1 diagram in section
