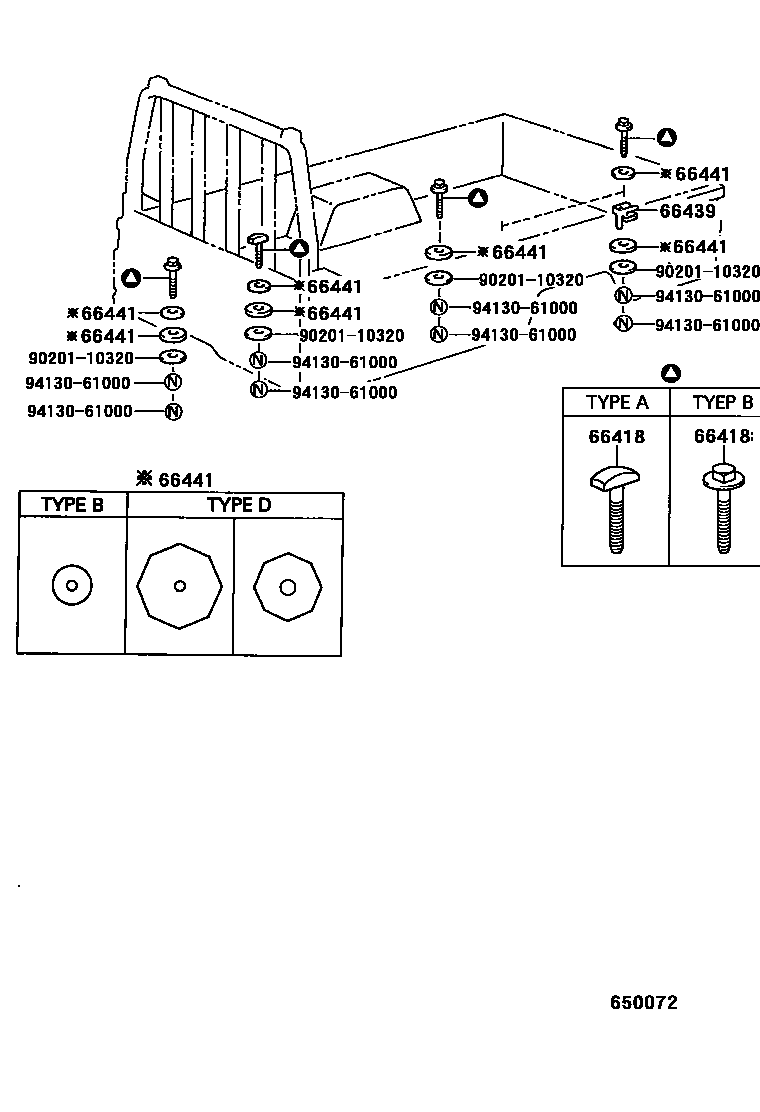

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

66418BOLT, MOUNTING

main66418-95400×2iBU100..(T1,TW2)..CBU199505-199905

main66445-93300iXZU130..CBU199510-199905

L=290

main66461-92820×4iBU132,XZU140..CBU199610-199905

L=363

main66462-92820×2iBU102..T5..CBU;BU100,102..T3..20T..CBU;BU132,162..03S..CBU..5F;BU172,RZU100..(T3,TW1)..CBU199505

L=317

main66463-92200×2iBU172..T4..CBU199708-199905

L=282

main66463-92707×2iBU14#,172,212..T3..CBU199505-199610

L=336

main90117-12021×2iRZU100..TW1199610

L=346

main90117-12022×2iBU105,107..T4..CBU..5F199610-199905

main90117-12023×4iBU14#..T3..CBU199505-199905

main90117-12025×2iBU222..T3..CBU199505-199905

main90117-12026×2iRZU100..T4..LPG..IV3199505

main90117-12027×2iBU162..03S..CBU;BU212,222..(T3,TW1)..CBU199610-199905

main90117-12030×2iBU162,202,212,222..(T4,TW4)..CBU199505-199610

L=268

main90117-12031×4iBU102..T3..WT..CBU199505-199905

L=415

main90117-12034×2iBU142,147..T4..CBU;BU10#,202,212,222,RZU100,140..(T4,TW4)..CBU199505

main90117-12035×4iXZU130..CBU199510-199905

main90117-12036iXZU130..CBU199510-199905

main90119-10490×6iBU100..175T..CBU199505-199905

66439SHIM, SUPPORT

main66439-95400iBU100..T1..CBU199505-199905

66441SHIM, MOUNTING, NO.1

main66441-27010×2iBU112..T3..CBU;BU10#,14#,212,RZU100..T2..CBU199506

5TH

main66441-95A01×8iBU100..175T..CBU199505-199905

main90564-10167×10iBU100..175T..CBU199505-199905

main90564-15142×8iBU112..T3..CBU;BU10#,RZU100..T2..CBU199506

9020110320

main90201-10320

9413061000

main94130-61000

5 parts on this diagram · 10 diagrams in section
