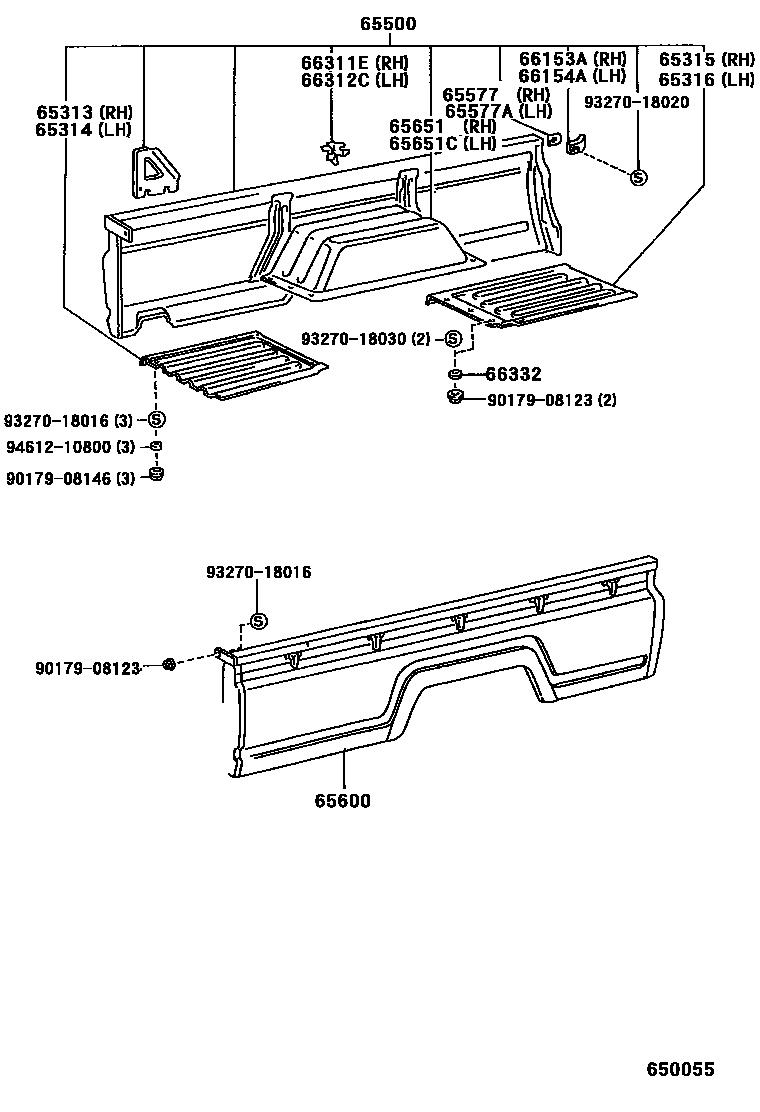

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1��(�������-�) 0007 1��(�������-�) 0008 1��(��� ���) 0009 1 0010 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-37050iBU100..T1..CBU199505-199905

main65313-37060iBU100..175T..CBU199505-199905

65314PANEL, FLOOR FRONT CORNER, LH

main65314-37010iBU100..T1..CBU199505-199905

main65314-37020iBU100..175T..CBU199505-199905

65315PANEL, FLOOR REAR CORNER, RH

main65315-60010iBU100..(T1,TW2)..CBU199505-199905

65316PANEL, FLOOR REAR CORNER, LH

main65316-60010iBU100..(T1,TW2)..CBU199505-199905

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-25090iBU162..03S..CBU199708-199905

sub65500-37860

sub90950-01753

main65500-25100iBU105,107,RZU100..T4..(DSL,EFI)..CBU199708

sub65500-37840

sub90950-01753

main65500-25150iBU105,107..T4..CBU..5F199708-199905

sub65500-37850

sub90950-01753

main65500-25160iBU105,107..T4..CBU..5F199708-199905

sub65500-37870

sub90950-01753

main65500-37130iBU100..T1..CBU199505-199905

main65500-37140iBU100..175T..CBU199505-199905

main65500-37180iBU222..CBU199505-199905

main65500-37190iBU222..CBU199505-199905

main65500-37200iBU202..CBU199505-199905

main65500-37210iBU212..(T2,T3)..CBU199505-199905

sub65500-37250

sub90950-01753

main65500-37220iBU212..(06S,07S)..CBU199505-199905

main65500-37230iBU212..T4..CBU199505-199905

main65500-37240iBU13#..CBU199610-199905

main65500-37250iBU212..(T2,T3)..CBU199505-199905

main65500-37280iBU172..02S..CBU;BU102..T3..WT..CBU199505-199905

sub65500-37780

sub90950-01753

main65500-37290iBU14#,RZU140..03S..CBU199505

sub65500-37300

sub90950-01753

main65500-37300iBU14#,RZU140..03S..CBU199505

main65500-37310iBU142,147..06S..CBU199505-199905

main65500-37320iBU147..06S..IV3199505-199905

main65500-37330iBU102..ST..CBU;BU102..(T2,T4,T5)..CBU;BU100,107,112,RZU100..(T2,T3,T4)..CBU199505-199708

sub65500-25100

main65500-37340iBU10#,RZU100..06S..20T..CBU199505

sub65500-25110

main65500-37350iBU162..03S..CBU199505-199708

sub65500-25090

main65500-37360iBU172..05S..CBU199505-199905

main65500-37370iBU182,XZU140..CBU199505-199905

sub65500-37640

sub90950-01753

main65500-37390iBU100..T3..ST..CBU;BU100,107..(T2,T4)..CBU..5F;BU102,112..TR..03S..20T..CBU..5F199505-199905

sub65500-25150

main65500-37400iBU100..T3..ST..CBU;BU100,107..(T2,T4)..CBU..5F;BU102,112..TR..03S..20T..CBU..5F199505-199905

sub65500-25160

main65500-37420iBU212..T4..MTM..DSL..CBU199505-199905

main65500-37430iBU212..T4..MTM..DSL..CBU199505-199905

main65500-37440iBU212..07S..CBU199505-199905

main65500-37450iBU212..07S..CBU199505-199905

main65500-37460iBU212..T3..MTM..DSL..CBU199505-199905

main65500-37470iBU212..T3..MTM..DSL..CBU199505-199905

main65500-37480iBU212..T3..MTM..DSL..CBU199505-199905

main65500-37490iBU147..T3..CBU..5F199505-199905

sub65500-37530

sub90950-01753

main65500-37500iBU147..T3..CBU..5F199505-199905

sub65500-37570

sub90950-01753

main65500-37510iBU142..T3..20T..CBU..5F199505-199905

sub65500-37580

sub90950-01753

main65500-37520iBU212..T3..MTM..DSL..CBU199505-199905

sub65500-37460

sub90950-01753

main65500-37530iBU147..T3..CBU..5F199505-199905

main65500-37540iBU212..T4..MTM..DSL..CBU199505-199905

sub65500-37420

sub90950-01753

main65500-37550iBU212..T3..MTM..DSL..CBU199505-199905

sub65500-37470

sub90950-01753

main65500-37560iBU212..T3..MTM..DSL..CBU199505-199905

sub65500-37480

sub90950-01753

main65500-37570iBU142..T3..20T..CBU..5F199505-199905

main65500-37580iBU142..T3..20T..CBU..5F199505-199905

main65500-37590iBU212..T4..DSL..CBU..5F199505-199708

sub65500-37430

sub90950-01753

main65500-37620iBU212..T4..CBU199505-199905

sub65500-37230

sub90950-01753

main65500-37630iBU202..CBU199505-199905

sub65500-37200

sub90950-01753

main65500-37640iBU182,XZU140..CBU199505-199905

main65500-37650iBU222..CBU199505-199905

sub65500-37180

sub90950-01753

main65500-37700iBU142,147..06S..CBU199505-199905

main65500-37710iRZU100..TR..LPG..IV3199505

main65500-37750iBU112..T3..CBU199610-199905

main65500-37770iRZU100..(T2,T3)..CBU;BU10#..(T2,T3)..20T..CBU;BU102,RZU100..T4..(DSL,LPG)..CBU199610-199708

sub65500-37840

main65500-37780iBU102..T3..WT..CBU199610-199905

main65500-37790iBU172..02S..CBU199610-199905

main65500-37800iBU162..03S..CBU199610-199708

sub65500-37860

main65500-37810iBU112..T3..CBU..5F;BU100,102..T3..ST..CBU;BU100,107..(T2,T4)..CBU..5F199610-199905

sub65500-37870

main65500-37830iBU105,107..T2..CBU..5F;BU100,102,112..T3..20T..CBU..5F199610-199905

sub65500-37850

main65500-37840iBU105,107,RZU100..T4..(DSL,EFI)..CBU199708

main65500-37850iBU105,107..T4..CBU..5F199708-199905

main65500-37860iBU162..03S..CBU199708-199905

main65500-37870iBU105,107..T4..CBU..5F199708-199905

main65500-37880iBU13#..CBU199610-199905

sub65500-37240

sub90950-01753

main65500-37890iRZU100..20T..LPG..CBU199610

sub65500-3V010

sub90950-01753

main65500-3V010iRZU100..20T..LPG..CBU199610

main65500-3V020iRZU100..30T..LPG..CBU199610

sub65500-3V030

sub90950-01753

main65500-3V030iRZU100..30T..LPG..CBU199610

main65500-93119iBU112..DM7..CBU199505-199905

main65500-93120iBU112..DM8199505-199905

main65500-93121iBU102..(DM2,DM5)..CBU199505-199905

main65500-93122iBU102..(DM2,DM5)..CBU199505-199905

main65500-93124iBU162..DM5..CBU199505-199905

main65500-93125iBU162..DM7..CBU199505-199905

main65500-93127iRZU100..DM5..CBU199708

main65500-93128iRZU100..DM5..CBU199708

main65500-93201iXZU130..CBU199510-199905

main65500-93305iBU102..DM3199505-199807

main65500-93306iBU102..DM3199807-199905

main65660-37020iBU222..CBU199505-199905

main65660-37050iRZU100..T4..LPG..IV3199505

main65660-37060iRZU100..30T..LPG..IV3199505

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iBU100..(T1,TW2)..CBU199505-199905

65577ARETAINER, TAIL GATE FEMALE

main65577-95012iBU100..(T1,TW2)..CBU199505-199905

65600PANEL ASSY, REAR BODY SIDE, LH

main65500-93305iBU102..DM3199505-199807

main65600-25090iBU162..03S..CBU199708-199905

sub65600-3V060

sub90950-01753

main65600-25100iBU105,107,RZU100..T4..(DSL,EFI)..CBU199708

sub65600-3V040

sub90950-01753

main65600-25150iBU105,107..T4..CBU..5F199708-199905

sub65600-3V050

sub90950-01753

main65600-25160iBU105,107..T4..CBU..5F199708-199905

sub65600-3V070

sub90950-01753

main65600-37130iBU100..T1..CBU199505-199905

main65600-37140iBU100..175T..CBU199505-199905

main65600-37180iBU222..CBU199505-199905

main65600-37190iBU222..CBU199505-199905

main65600-37200iBU202..CBU199505-199905

main65600-37210iBU212..(T2,T3)..CBU199505-199905

sub65600-37250

sub90950-01753

main65600-37220iBU212..(06S,07S)..CBU199505-199905

main65600-37230iBU212..T4..CBU199505-199905

main65600-37240iBU13#..CBU199610-199905

main65600-37250iBU212..(T2,T3)..CBU199505-199905

main65600-37280iBU172..02S..CBU;BU102..T3..WT..CBU199505-199905

sub65600-37780

sub90950-01753

main65600-37290iBU14#,RZU140..03S..CBU199505

sub65600-37300

sub90950-01753

main65600-37300iBU14#,RZU140..03S..CBU199505

main65600-37310iBU142,147..06S..CBU199505-199905

main65600-37320iBU147..06S..IV3199505-199905

main65600-37330iBU102..ST..CBU;BU102..(T2,T4,T5)..CBU;BU100,107,112,RZU100..(T2,T3,T4)..CBU199505-199708

sub65600-25100

main65600-37340iBU10#,RZU100..06S..20T..CBU199505

sub65600-25110

main65600-37350iBU162..03S..CBU199505-199708

sub65600-25090

main65600-37360iBU172..05S..CBU199505-199905

main65600-37370iBU182,XZU140..CBU199505-199905

sub65600-37640

sub90950-01753

main65600-37390iBU212..T4..MTM..DSL..CBU199505-199905

main65600-37400iBU100..T3..ST..CBU;BU100,107..(T2,T4)..CBU..5F;BU102,112..TR..03S..20T..CBU..5F199505-199905

sub65600-25150

main65600-37410iBU100..T3..ST..CBU;BU100,107..(T2,T4)..CBU..5F;BU102,112..TR..03S..20T..CBU..5F199505-199905

sub65600-25160

main65600-37430iBU212..07S..CBU199505-199905

main65600-37440iBU212..07S..CBU199505-199905

main65600-37450iBU212..T4..MTM..DSL..CBU199505-199905

main65600-37460iBU212..T3..MTM..DSL..CBU199505-199905

main65600-37470iBU212..T3..MTM..DSL..CBU199505-199905

main65600-37480iBU212..T3..MTM..DSL..CBU199505-199905

main65600-37490iBU147..T3..CBU..5F199505-199905

sub65600-37550

sub90950-01753

main65600-37500iBU142..T3..20T..CBU..5F199505-199905

sub65600-37560

sub90950-01753

main65600-37510iBU142..T3..20T..CBU..5F199505-199905

sub65600-37570

sub90950-01753

main65600-37520iBU212..T3..MTM..DSL..CBU199505-199905

sub65600-37460

sub90950-01753

main65600-37530iBU212..T3..MTM..DSL..CBU199505-199905

sub65600-37470

sub90950-01753

main65600-37540iBU212..T3..MTM..DSL..CBU199505-199905

sub65600-37480

sub90950-01753

main65600-37550iBU142..T3..20T..CBU..5F199505-199905

main65600-37560iBU142..T3..20T..CBU..5F199505-199905

main65600-37570iBU142..T3..20T..CBU..5F199505-199905

main65600-37580iBU212..T4..MTM..DSL..CBU199505-199905

sub65600-37390

sub90950-01753

main65600-37590iBU212..T4..MTM..DSL..CBU199505-199905

sub65600-37450

sub90950-01753

main65600-37620iBU212..T4..CBU..5F199505-199905

sub65600-37230

sub90950-01753

main65600-37630iBU202..CBU199505-199905

sub65600-37200

sub90950-01753

main65600-37640iBU182,XZU140..CBU199505-199905

main65600-37650iBU222..CBU199505-199905

sub65600-37180

sub90950-01753

main65600-37700iBU142,147..06S..CBU199505-199905

main65600-37710iRZU100..TR..LPG..IV3199505

main65600-37750iBU112..T3..CBU199610-199905

main65600-37770iBU102..T5..CBU;RZU100..03S..CBU;BU10#..(T2,T3,T4)..20T..CBU199610-199708

sub65600-3V040

main65600-37780iBU102..T3..WT..CBU199610-199905

main65600-37790iBU172..02S..CBU199610-199905

main65600-37800iBU162..03S..CBU199610-199708

sub65600-3V060

main65600-37810iBU112..T3..CBU..5F;BU100,102..T3..ST..CBU;BU100,107..(T2,T4)..CBU..5F199610-199905

sub65600-3V070

main65600-37830iBU105,107..T2..CBU..5F;BU100,102,112..T3..20T..CBU..5F199610-199905

sub65600-3V050

main65600-37880iBU13#..CBU199610-199905

sub65600-37240

sub90950-01753

main65600-37890iRZU100..20T..LPG..CBU199610

sub65600-3V010

sub90950-01753

main65600-3V010iRZU100..20T..LPG..CBU199610

main65600-3V020iRZU100..30T..LPG..CBU199610

sub65600-3V030

sub90950-01753

main65600-3V030iRZU100..30T..LPG..CBU199610

main65600-3V040iBU105,107,RZU100..T4..(DSL,EFI)..CBU199708

main65600-3V050iBU105,107..T4..CBU..5F199708-199905

main65600-3V060iBU162..03S..CBU199708-199905

main65600-3V070iBU105,107..T4..CBU..5F199708-199905

main65600-93120iBU112..DM7..CBU199505-199905

main65600-93121iBU112..DM8199505-199905

main65600-93122iBU102..(DM2,DM5)..CBU199505-199905

main65600-93123iBU102..(DM2,DM5)..CBU199505-199905

main65600-93125iBU162..DM5..CBU199505-199905

main65600-93126iBU162..DM7..CBU199505-199905

main65600-93128iRZU100..DM5..CBU199708

main65600-93129iRZU100..DM5..CBU199708

main65600-93201iXZU130..CBU199510-199905

main65600-93300iBU102..DM3199807-199905

main65670-37020iBU222..CBU199505-199905

main65670-37050iRZU100..T4..LPG..IV3199505

main65670-37060iRZU100..30T..LPG..IV3199505

65651PANEL, WHEEL HOUSE

main65651-37010iBU100..(T1,TW2)..CBU199505-199905

65651CPANEL, WHEEL HOUSE

main65651-37010iBU100..(T1,TW2)..CBU199505-199905

66153ALATCH, TAIL GATE FEMALE, RH

main66153-95012iBU100..(T1,TW2)..CBU199505-199905

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iBU100..(T1,TW2)..CBU199505-199905

66311EHOOK, ROPE

main66311-90K00iBU100..T1..CBU199505-199905

66312CHOOK, ROPE

main66311-90K00iBU100..T1..CBU199505-199905

66332CUSHION, RUBBER

main66332-95A00iBU100..(T1,TW2)..CBU199505-199905

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

21 parts on this diagram · 7 diagrams in section
