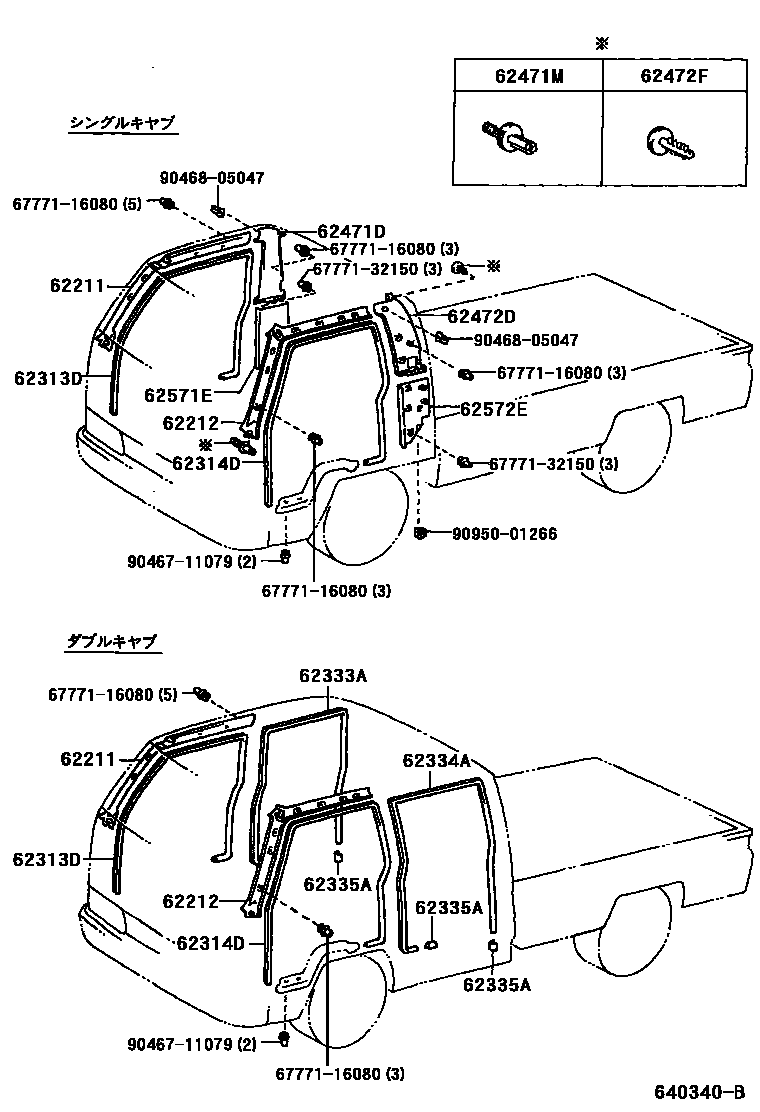

INSIDE TRIM BOARD

0001 1 0002 1

62211GARNISH, FRONT PILLAR, RH

main62211-25010-B0iBU182..T3..20T..IV3199708-199906

main62211-25010-B0iBU102..T5..CBU;BU10#,RZU100..DM6;BU102..(275T,30T)..IV3;BU132,14#,172,182..(02S,03S)..IV3199505-200005

main62211-25010-B0iBU142..T3..20T..CBU..5F199505-199905

main62211-25010-B0iBU137..4FC;BU145..IV3;BU142..IV3..6F;BU132..CBU..4FC;BU147..06S..CBU;BU142,212..06S,07S;BU102..T3..IV3..4FC;BU102..T4..30T..IV3;BU147..(T3,TW4)..IV3;BU102..(DM6,T3)199505-200005

LT.GRAY,TRIM1#

main62211-25020-B0iBU112..30T;RZU100..LPG..CBU;BU102..(T2,T4)..IV3;RZU100..(DM6,T4)..IV3;RZU100..30T..LPG..IV3;BU102..(DM6,T3,T5,TW1)..WT;BU100,107,162..03S..WT..IV3;BU13#,14#,172,182199505-200005

62212GARNISH, FRONT PILLAR, LH

main62212-25010-B0iBU142..T3..20T..CBU..5F199505-199905

main62212-25010-B0iBU102..T5..CBU;BU10#,RZU100..DM6;BU102..(275T,30T)..IV3;BU132,14#,172,182..(02S,03S)..IV3199505-200005

main62212-25010-B0iBU182..T3..20T..IV3199708-199906

main62212-25010-B0iBU137..4FC;BU145..IV3;BU142..IV3..6F;BU132..CBU..4FC;BU147..06S..CBU;BU142,212..06S,07S;BU102..T3..IV3..4FC;BU102..T4..30T..IV3;BU147..(T3,TW4)..IV3;BU102..(DM6,T3)199505-200005

LT.GRAY,TRIM1#

main62212-25020-B0iBU107..T3..IV3;BU105..03S..IV3;RZU100..LPG,LPGB;RZU100..DM6..EFI;BU102,112,XZU140..275T,30T;BU100,102,XZU130..DM6,DM7,TW1;BU13#,14#,172,182,202,212,222,RZU140..02S,199505-200005

main62212-25020-B0iRZU100..T4..EFI..IV3;BU10#,162..TR..03S..WT..20T..IV3199505-200005

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37020-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37020-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-200005

BLUISH GRAY,TRIM1#

main62313-37030-B0iBU100,102,RZU100..DM6199505-200005

sub62313-37020

62333ATRIM, REAR DOOR OPENING, RH

main62333-37010-B0iBU297199701-199905

BLUISH GRAY,TRIM1#

sub62333-25010

main62333-95400-B0iBU10#,142,147,172,212,RZU100..05S,06S,07S199505

GRAY,TRIM1#

sub62333-25010

62334ATRIM, REAR DOOR OPENING, LH

main62333-37010-B0iBU297199701-199905

BLUISH GRAY,TRIM1#

sub62333-25010

main62333-95400-B0iBU10#,142,147,172,212,RZU100..05S,06S,07S199505

GRAY,TRIM1#

sub62333-25010

62335ACOVER, REAR DOOR OPENING TRIM

main62335-92600-B0iBU10#,142,147,172,212,297,RZU100..05S,06S,07S199505

GRAY,TRIM1#

sub62335-92600

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-25010-B0iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S199505-200005

LT.GRAY,TRIM1#

main62471-37010-B0iBU202,212,222..03S199505-199906

LT.GRAY,TRIM1#

62471MCLIP

main90467-07043-B1iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,202,212,222,RZU100..02S,03S,05S199505-200005

LIGHT GRAY,TRIM1#

sub90467-07043

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-25010-B0iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S199505-200005

LT.GRAY,TRIM1#

main62472-37010-B0iBU202,212,222..03S199505-199906

LT.GRAY,TRIM1#

62472FCLIP(FOR REAR PILLAR GARNISH)

main90467-06171-B1iBU162,172,182,XZU130,140..02S,03S199505-199906

LT.GRAY,TRIM1#

sub90467-06171

62571EGARNISH, REAR PILLAR, LOWER RH

main62571-25010-B0iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,202,212,222,RZU100..02S,03S,05S199505-200005

LT.GRAY,TRIM1#

62572EGARNISH, REAR PILLAR, LOWER LH

main62572-25010-B0iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S199505-200005

LT.GRAY,TRIM1#

main62572-25020-B0iBU100,102,RZU100..DM6199505-200005

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

9046711079

main90467-11079

9046805047

main90468-05047

9095001266

main90950-01266

18 parts on this diagram · 2 diagrams in section
