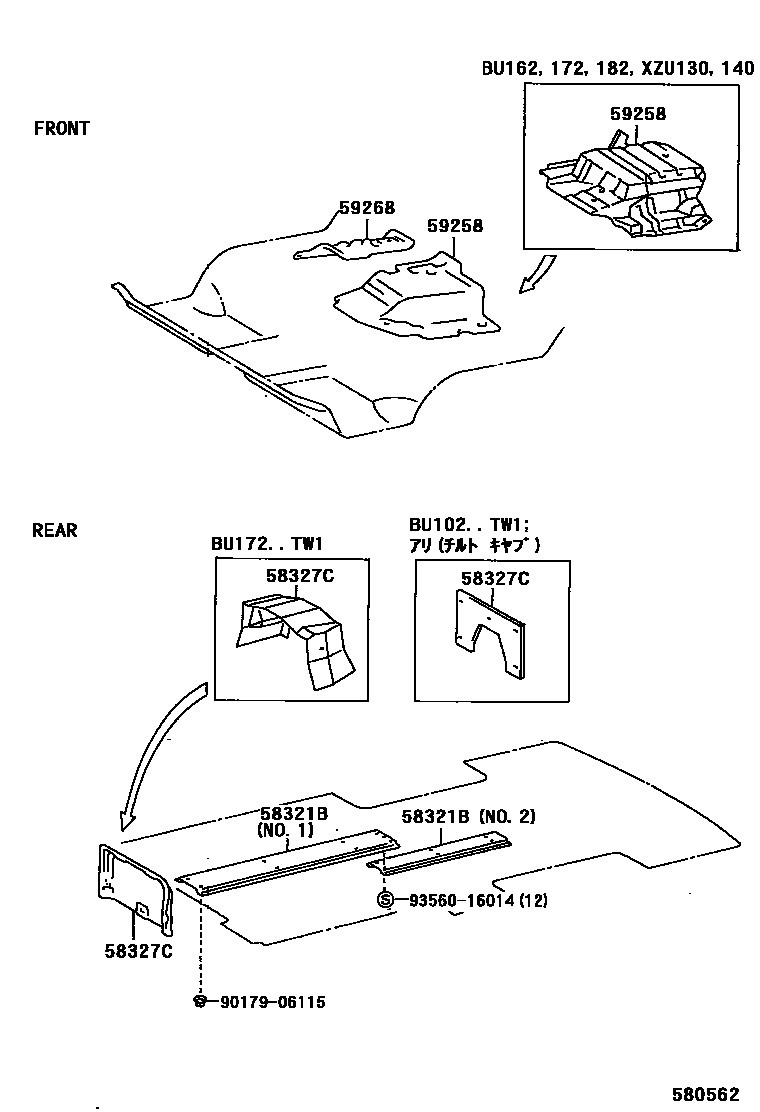

FLOOR INSULATOR

0001 1 0002 1

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58045-92600iBU12#199505-199905

main58321-37010iBU12#199505-199905

main58321-37040×2iBU297199701-199905

58327CINSULATOR, TRANSMISSION SERVICE HOLE COVER

main58327-37010iRZU100..06S199708

main58327-37020iBU12#;BU10#,142,RZU100..06S..(CBU,IV3)199505-199606

sub58207-37021

main58327-37021iBU10#,142,RZU100..06S..(CBU,IV3)199606-199609

main58327-37030iBU102..IV4199507-199609

main58327-37031iBU102..IV4199609-199905

main58327-37040iBU102..IV4199507-199905

main58327-37050iBU172..05S199505-199905

main58327-37060iBU212..06S,07S199505-199905

main58327-37080iBU297199701-199905

59258INSULATOR, ENGINE SERVICE HOLE COVER MAIN

main59258-37020iXZU130,140199510-199905

main59258-37060iBU10#,112,12#,13#,14#,202,212,222,297,RZU100,140199505

main59258-37080iBU162,172,182199505

59268INSULATOR, ENGINE SUB COVER

main59268-37020iBU297199701-199905

main59268-37030iBU10#,112,12#,13#,14#,202,212,222,RZU100,140199505

9017906115

main90179-06115

9356016014

main93560-16014

6 parts on this diagram · 2 diagrams in section
