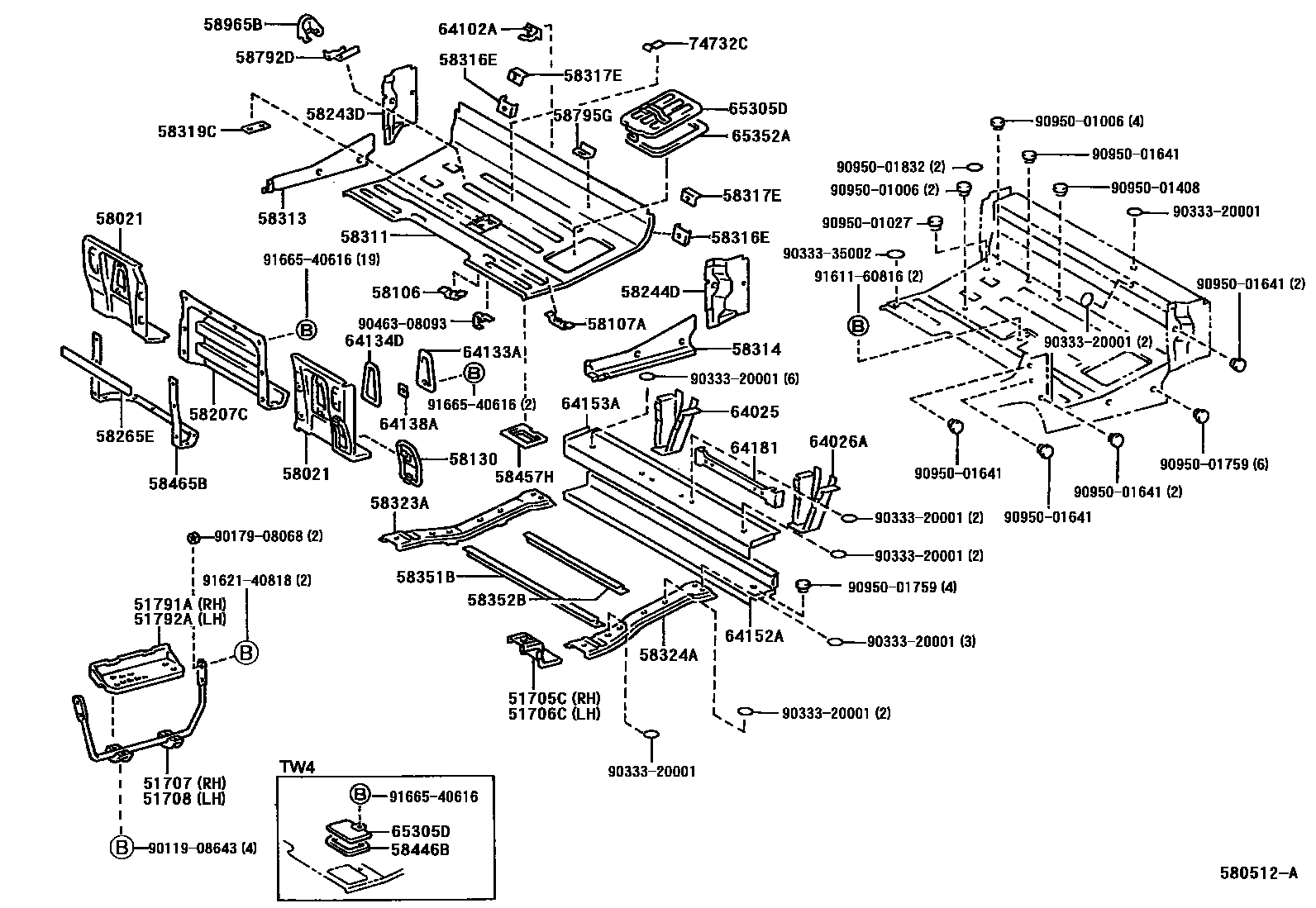

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1��� ���� 0004 1 0005 1 0006 1 0007 1 0008 1

51705CBRACKET SUB-ASSY, CAB REAR MOUNTING, RH

main51705-95400iBU10#,142,147,212,RZU100..06S,07S199505

main51733-37040×2iBU297199701-199905

main51733-92600iBU172..05S199505-199905

51706CBRACKET SUB-ASSY, CAB REAR MOUNTING, LH

main51706-95400iBU10#,142,147,212,RZU100..06S,07S199505

main51743-92600iBU172..05S199505-199905

51707STEP SUB-ASSY, RH

main51770-37030iBU172..05S..(CBU,IV3)199505-199905

main51770-37060iBU102,172..IV4199507-199702

main51770-37061iBU102,172..IV4199702-199905

main51770-37070iBU297199701-199905

main58307-95403iBU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3)199505

51708STEP SUB-ASSY, LH

main51780-37020iBU102,172..IV4199507-199905

main51780-37030iBU172..05S..(CBU,IV3)199505-199905

main51780-37060iBU297199701-199905

main58308-95400iBU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3)199505

51791APANEL, STEP, REAR RH

main51791-95A00iBU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3)199505

sub51791-37030

51792APANEL, STEP, REAR LH

main51791-95A00iBU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3)199505

sub51791-37030

58021PANEL SUB-ASSY, HEADER

main58021-37010iBU10#,142,147..06S199708-199905

main58021-37020iBU102..IV4199507-199905

main58021-37030iBU212..06S,07S199505-199905

main58021-37100iRZU100..06S199708

main58021-92610iBU172..05S199505-199905

main58022-37010iBU10#,142,147,RZU100..06S199505-199708

main58022-37020iBU102..IV4199507-199905

main58022-37030iBU172..05S199505-199905

main58022-37060iBU212..06S,07S199505-199905

main58022-37110iRZU100..06S199708

58106BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

main58106-95A00iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

58107ABRACKET SUB-ASSY, CLAMP SET, NO.1

main58107-95A00iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iBU12#;BU10#,142,147,212,RZU100..06S,07S199505

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-37020iBU12#199606-199609

sub58327-37021

main58207-37021iBU10#,142,RZU100..06S..(CBU,IV3)199606-199609

main58207-37030iBU102..IV4199507-199609

sub58327-37031

main58207-37031iBU102..IV4199609-199905

main58207-37040iBU102..IV4199507-199905

main58207-37050iBU172..05S199505-199905

main58207-37060iRZU100..06S199708

main58207-37070iBU297199701-199905

main58207-92607iBU212..06S,07S199505-199905

58243DPANEL, FLOOR SIDE, REAR RH

main58025-37050iBU12#199505-199905

main58025-37060iBU120199505-199905

main58043-37010iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

main58243-37080iBU172..05S199505-199905

main58243-37090iBU297199701-199905

main58243-95415iBU102..IV4;BU212..06S,07S199505-199905

58244DPANEL, FLOOR SIDE, REAR LH

main58044-37010iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

main58244-37040iBU172..05S199505-199905

main58244-95411iBU102,297..TW1;BU212..06S,07S199505-199905

58265EPACKING, TRANSMISSION COVER, C

main58265-92602iBU172..05S199505-199905

main58265-95400iBU12#;BU10#,142,147,RZU100..06S199505-199708

58311PAN, REAR FLOOR

main58311-37090iBU102..IV4199507-199905

main58311-37100iBU102..IV4199507-199905

main58311-37110iBU172..05S199505-199905

main58311-37120iRZU100..TW4199708

main58311-37140iRZU100..TW1199708

main58311-92647iBU212..06S,07S199505-199905

main58311-95415iBU10#,142,147,RZU100..TW4199505-199708

main58311-95417iBU100,RZU100..TW1,TW2199505-199708

58313PANEL, REAR FLOOR SIDE, RH

main58313-95402iBU10#,142,147,172,212,RZU100..05S,06S,07S199505

58314PANEL, REAR FLOOR SIDE, LH

main58314-95403iBU10#,142,147,172,212,RZU100..05S,06S,07S199505

58316ERETAINER, REAR SEAT SET

main58316-95402×2iBU10#,142,147,212,297,RZU100..(05S,06S,07S)..(CBU,IV3)199505

58317ERETAINER, REAR SEAT, NO.2

main58317-95402×4iBU297199701-199905

58319CANCHOR, REAR SEAT

main58319-95400iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

58323ABRACE, CENTER TO REAR MOUNTING, RH

main58323-37010iBU172..05S199505-199905

main58323-37030iBU297199701-199905

main58323-92602iBU212..06S,07S199505-199905

main58323-95403iBU10#,142,147,RZU100..06S199505

58324ABRACE, CENTER TO REAR MOUNTING, LH

main58324-37010iBU172..05S199505-199905

main58324-37030iBU297199701-199905

main58324-92602iBU212..06S,07S199505-199905

main58324-95403iBU10#,142,147,RZU100..06S199505

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-37020iBU297199701-199905

main58351-92600iBU212..06S,07S199505-199905

main58351-95406iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58352-37020iBU297199701-199905

main58352-92601iBU212..06S,07S199505-199905

main58352-95402iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

58446BPACKING, BATTERY SERVICE HOLE, NO.2

main58446-95402iBU10#,142,147,RZU100..TW4199505

58457HBASE, BATTERY SERVICE HOLE, NO.2

main58457-95401iBU10#,142,147,RZU100..TW4199505

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-37010iBU102..IV4199507-199905

main58465-37020iBU172..05S199505-199905

main58465-37030iRZU100..06S199708

main58465-37040iBU297199701-199905

main58465-92601iBU120;BU10#,142,147..06S..(CBU,IV3)199708-199905

main58465-92603iBU212..06S,07S199505-199905

58792DSUPPORT, JACK

main58792-95401iBU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S199505

main58792-95A00iBU212..06S,07S199505-199905

58795GPLATE, JACK CLAMP

main58795-95500iBU10#,142,147,172,212,297,RZU100..05S,06S,07S199505

58965BHOLDER, JACK

main58965-95400iBU102..TW4;BU100,105,107,142,147,172,212,RZU100..05S,06S,07S199505

64025BRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-37060iBU297199701-199905

main64025-92602iBU212..06S,07S199505-199905

main64025-95401iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

64026ABRACKET SUB-ASSY, REAR MOUNTING, LH

main64025-95401iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

main64026-37070iBU297199701-199905

main64026-92601iBU212..06S,07S199505-199905

64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT

main64102-92601×2iBU212..06S,07S199505-199905

main64102-95403×2iBU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S199505

64133ACOVER, HEADER PANEL

main64133-95400×2iBU12#;BU10#,142,147,212,RZU100..06S,07S199505

64134DPACKING, HEADER PANEL COVER

main64134-37010×2iBU297199701-199905

main64134-95400×2iBU12#;BU10#,142,147,212,RZU100..06S,07S199505

64138ASEAL, HEADER PANEL COVER

main64138-95400×2iBU12#;BU10#,142,147,RZU100..06S..(CBU,IV3)199505-199708

64152AFRAME, BACK, LOWER

main64152-92603iBU212,297..TW1,TW4199505-199905

main64152-95402iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

64153AREINFORCEMENT, BACK FRAME

main64153-92600iBU212..06S,07S199505-199905

main64153-92602iBU172..05S199505-199905

main64153-95403iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64084-92604iBU212..06S,07S199505-199905

main64181-95401iBU10#,142,147,RZU100..06S..(CBU,IV3)199505

65305DCOVER SUB-ASSY, BATTERY HOLE

main65305-95A03iBU212..06S,07S;BU100,102,RZU100..TW1,TW2199505-199708

395 X 235

main65306-92605×2iBU297199701-199905

main65350-95405iBU10#,142,147..TW4199708-199905

176 X 142

65352APACKING, BATTERY HOLE COVER, NO.2

main65352-37010iBU12#199505-199905

main65352-95A02iBU10#,142,147,212,RZU100..06S,07S199505

74732CBRACKET, TOOL BAG SET BAND

main74732-95600×2iBU102..TW4;BU100,105,107,142,147,172,212,297,RZU100..05S,06S,07S199505

9011908643

main90119-08643

9017908068

main90179-08068

9033320001

main90333-20001

9033335002

main90333-35002

9046308093

main90463-08093

9095001006

main90950-01006

9095001027

main90950-01027

9095001408

main90950-01408

9095001641

main90950-01641

9095001759

main90950-01759

9095001832

main90950-01832

9161160816

main91611-60816

9162140818

main91621-40818

9166540616

main91665-40616

56 parts on this diagram · 8 diagrams in section
