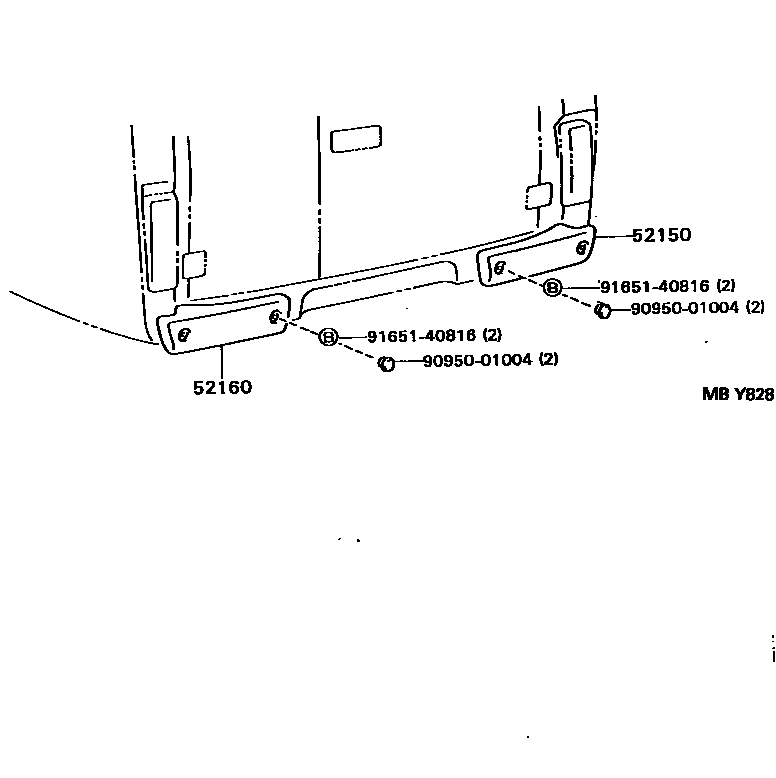

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

52150BUMPER ASSY, REAR RH

main52150-92602-A0iBU12#199505-199905

WHITE,048

sub52150-37902¥13,700

main52150-92602-J0iBU12#199610-199905

PASTEL BLUE,8L0

sub52150-37902¥13,700

52160BUMPER ASSY, REAR LH

main52160-92602-A0iBU12#199505-199905

WHITE,048

sub52160-37902¥13,700

main52160-92602-J0iBU12#199610-199905

PASTEL BLUE,8L0

sub52160-37902¥13,700

9095001004

main90950-01004¥230

9165140816

main91651-40816¥80

4 parts on this diagram · 9 diagrams in section
