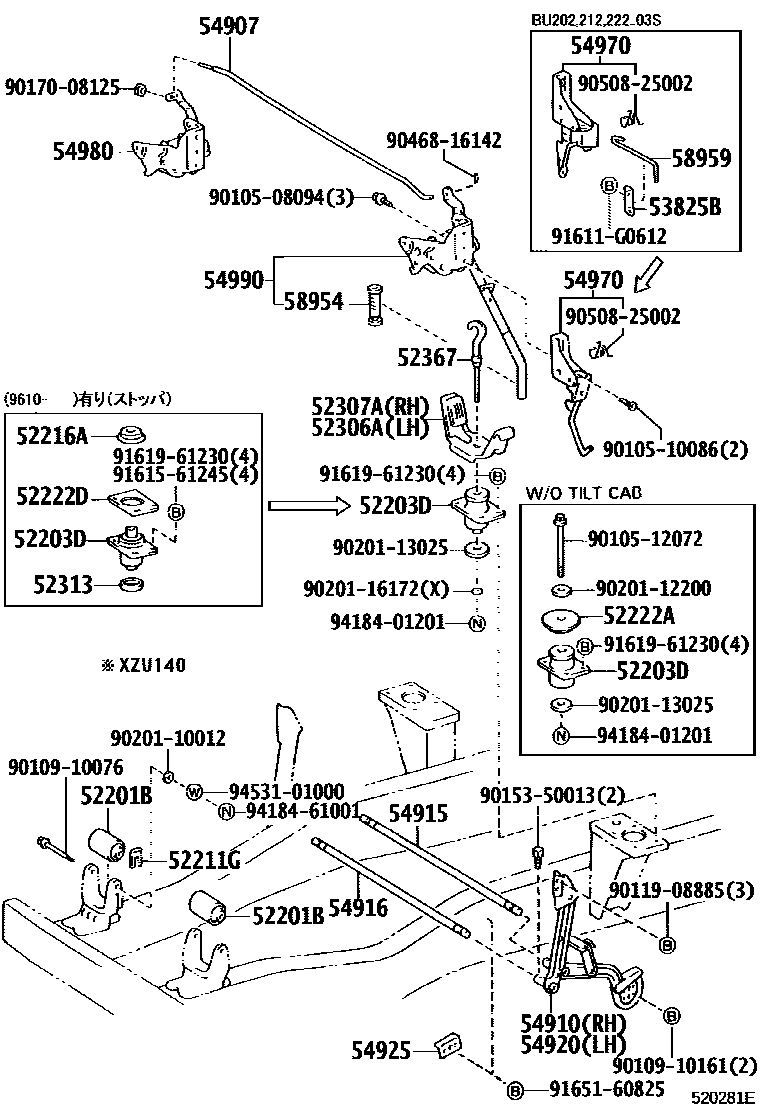

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1��� ���� 0004 1 0005 1

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37020iBU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182..02S,05S,06S199505-199906

main52201-37030iBU202,212,222199505-199906

main52201-37040iRZU100,140..03S199610-199906

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-35050iBU147..06S..IV3199610-199905

main52203-35050iBU12#199505-199905

main52203-36060iBU12#199505-199905

main52203-37010iBU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S199505-199906

main52203-37020iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3;BU100,105,107,112,137,140,145,147,202,212,222,RZU100,140,XZU130,140..02S,03S199610-199904

sub52203-37030

main52203-37030iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3;BU100,105,107,112,137,140,145,147,202,212,222,RZU100,140,XZU130,140..(02S,03S)..(DSL,EFI,LPG,199904-199906

52211GSPACER, CAB FRONT MOUNTING

main52211-36020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505-199906

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-37010iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU102,132..DM2,DM3,DM5,DM6,T3;BU100,105,107,112,137,140,145,147,202,212,222,RZU100,140,XZU130,140..02S,03S199610-199906

main52216-92601iBU102,172..TW1199505-199905

52222ASPACER, CAB REAR MOUNTING, UPPER

main52222-36030iBU12#;BU10#,142,147,212,297,RZU100..05S,06S,07S199505

52222DSPACER, CAB REAR MOUNTING, UPPER

main52222-37010iXZU130,140;BU102,142,RZU100,140..03S..(EFI,LPG,LPGB)199708

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-36020iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S,05S199505-199610

sub52306-36021

main52306-36021iRZU100,140..03S199610-199906

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-36020iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S,05S199505-199610

sub52307-36021

main52307-36021iBU100,102,105..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1;BU107,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..(ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..(02S,03S,05S)199610-199906

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37020iBU142..T3..DSL;BU102,132..(DM2,DM3,DM5,DM6,T3,T5)..5F;BU100,107,112,137,140,147,202,212,222..03S199610-199906

52367HOOK, CAB REAR MOUNTING

main52367-36030iRZU100,140..03S199505-199906

main52367-37030iBU102..IV4199507-199905

sub52367-37070

main52367-37030iBU172..05S199505-199905

sub52367-37070

53825BBRACKET, REAR LOCK HANDLE ROD

main53825-95401iBU202,212,222..03S199505

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-95400iBU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5199505

main54907-95401iBU202,212,222..03S199505

main54907-95402iBU162,172,182,XZU130,140..02S,03S199505

54910ARM ASSY, TILT CAB SPRING SUPPORT, RH

main54910-37010iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,RZU100,XZU130..02S,03S,05S199505-199609

main54910-37011iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,RZU100,XZU130..02S,03S,05S199609-199610

main54910-37030iBU202,212,222..03S199505-199609

main54910-37031iBU202,212,222..03S199609

main54910-37040iBU105,107,137,145,147..03S199610-199905

main54910-37050iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,140,142,RZU100,140,XZU130,140..DM5,DM6,DM7,DM8,T1,T2,T3,T4199610

54915SPRING, TILT CAB, NO.1

main54915-37020iBU100,112,132,14#,172,RZU100..03S,05S;BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1199505-199609

main54915-37021iBU100,112,132,14#,172,RZU100..03S,05S;BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1199609-199905

main54915-37030iBU202,212,222..03S199505-199609

main54915-37031iBU202,212,222..03S199609

main54915-37040iBU10#,RZU100..DM6199505-199609

main54915-37040iBU162,172,182,XZU130..02S,03S199505-199609

main54915-37041iBU10#,112,132,14#,RZU100..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199609-199610

main54915-37041iBU162,172,182,XZU130,140..02S,03S199609

main54915-37041iBU10#,RZU100..DM6199609-199610

main54915-37070iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,105,107,112,13#,14#,RZU100,140..DM5,DM6,DM7,DM8,T1,T2,T3,T4199610

main54915-37080iBU100,102,112,132,140,142,RZU100,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4199610-199708

main54915-37080iBU10#,112,13#,14#,RZU100..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-199708

54916SPRING, TILT CAB, NO.2

main54916-37010iBU100,112,132,14#,172,RZU100..03S,05S;BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1199505-199609

main54916-37011iBU172..05S199609-199905

main54916-37020iBU202,212,222..03S199505-199609

main54916-37021iBU202,212,222..03S199609

main54916-37030iBU10#,112,132,14#,RZU100..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199505-199609

main54916-37030iBU162,172,182,XZU130..02S,03S199505-199609

main54916-37031iBU10#,RZU100..DM6199609-199610

main54916-37031iBU10#,RZU100..DM6199609-199610

main54916-37031iBU162,172,182,XZU130,140..02S,03S199609

main54916-37060iBU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,105,107,112,13#,14#,RZU100,140..DM5,DM6,DM7,DM8,T1,T2,T3,T4199610

main54916-37070iBU10#,112,13#,14#,RZU100..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-199708

main54916-37070iBU10#,112,13#,14#,RZU100..DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5199610-199708

54920ARM ASSY, TILT CAB SPRING SUPPORT, LH

main54920-37010iBU10#,112,132,14#,RZU100,XZU130..02S,03S199505-199609

main54920-37011iBU10#,112,132,14#,RZU100,XZU130..02S,03S199609-199610

main54920-37020iBU162,172,182..02S,03S199505-199609

main54920-37021iBU162,172,182..02S,03S199609

main54920-37040iBU202,212,222..03S199505-199609

main54920-37041iBU202,212,222..03S199609

main54920-37050iBU102,172..TW1199505-199609

main54920-37060iBU105,107,137,145,147..03S199610-199905

main54920-37080iBU100,102,112,132,140,142,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5199610

main54920-37090iBU102..IV4199610-199905

main54920-37110iBU172..05S199610-199905

54925RETAINER, TILT CAB SPRING

main54925-37020iBU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140199505

main54926-37010iBU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140199505

54970LATCH ASSY, TILT CAB STOPPER

main54970-92600iBU102,172..TW1199505-199905

main54970-95400iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5199505

main54970-95401iBU202,212,222..03S199505

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-92600iBU102,172..TW1199505-199905

main54980-95400iBU162,172,182,XZU130,140..02S,03S199505

main54980-95401iBU10#,112,13#,14#,202,212,222,RZU100,140..ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5199505

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37010iBU202,212,222..03S199510

main54990-92600iBU102,172..TW1199505-199905

main54990-95403iBU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5199505

main54990-95404iBU202,212,222..03S199505-199510

sub54990-37010

58954COVER, REAR LOCK HANDLE GRIP

main58954-95400iBU100,102,105..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1;BU107,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..(ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..(02S,03S,05S)199505

58959ROD, REAR LOCK, HANDLE LATCH

main58959-95402iBU202,212,222..03S199505

9010508094

main90105-08094

9010510086

main90105-10086

9010512072

main90105-12072

9010910076

main90109-10076

9010910161

main90109-10161

9011908885

main90119-08885

9015350013

main90153-50013

9017008125

main90170-08125

9020110012

main90201-10012

9020112200

main90201-12200

9020113025

main90201-13025

9020116172

main90201-16172

9046816142

main90468-16142

9050825002

main90508-25002

91611G0612

main91611-G0612

9161561245

main91615-61245

9161961230

main91619-61230

9165160825

main91651-60825

9418401201

main94184-01201

9418461001

main94184-61001

9453101000

main94531-01000

43 parts on this diagram · 5 diagrams in section
