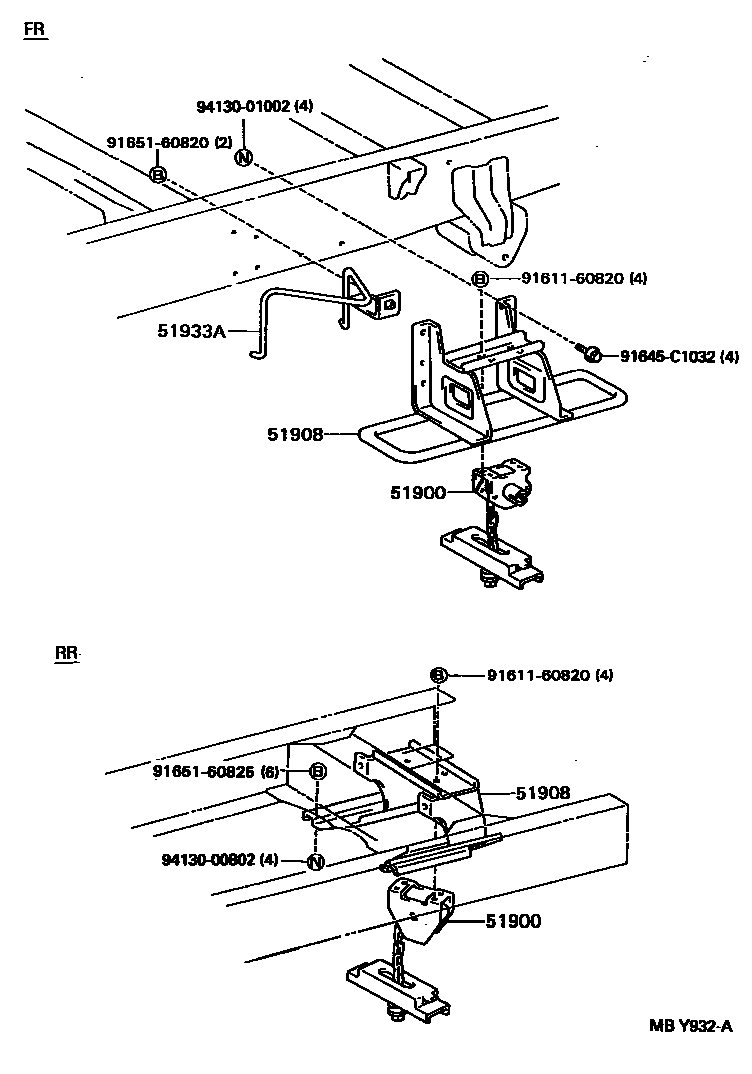

SPARE WHEEL CARRIER

0001 1 0002 1 0005 1����� ��� 0006 1 0007 1 0009 1 0010 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36101×2iBU172..(T4,TW1)..(CBU,IV3);RZU100,XZU130..DMP..(DSL,LPG)..IV3;BU112,12#,13#,182,202,222,RZU140,XZU140..TR,V;BU10#,14#,162,212,RZU100..(ALV,DM5,T1,T3,T4,T5,TW1,TW2,T199505-199905

main51900-36102iRZU100..DM6..LPG;RZU100,140..DM5,T3,T4,TW1,TW4199907

main51900-37040iBU172..T3199505-199905

main51900-93100iBU112..DMP..CBU..5F;BU112..30T..CBU..4FC199505-199905

main51900-93106iBU162..DM7..CBU199505-199905

main51900-93107iBU112..DM7..20T..CBU..4FC199505-199905

main51900-93202iXZU130..CBU199510-199905

main51900-93300iBU102..DM3199505-199807

main51900-93302iBU102..DM3199807-199905

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-36040iBU10#,RZU100..DM2,T2199505-199906

main51908-36050iRZU100..T2199906

main51908-36060iRZU100..T4..LPGB199905

main51908-36071iBU14#,212..T2199505-199906

main51908-36080iBU140,142,212..T2199505-199906

main51908-36100iBU105,107..T2199610-199905

main51908-36120iBU162,172..DM5,T4199505-199906

main51908-37010iBU147..T3..IV3;BU142..T3..IV3..6F;BU212..(T3,T4)..IV3..6F199708-199906

main51908-37020iBU13#..(T3,T4)..5F199708-199905

main51908-37030iBU145,147..T2199610-199905

main51908-37040iBU105,107..T3199708-199905

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36050iBU202,212,222..T4,TW4;BU142..T3..30T..DSL..IV3199505-199906

main51933-36010×2iBU212..T4..IV3..(4FC,5F)199505-199905

main51933-36040×2iBU100,102,12#..ST199505-199905

main51933-36110iBU102,107..T2..4FC199505

9161160820

main91611-60820

91645C1032

main91645-C1032

9165160820

main91651-60820

9165160825

main91651-60825

9413000802

main94130-00802

9413001002

main94130-01002

9 parts on this diagram · 7 diagrams in section
