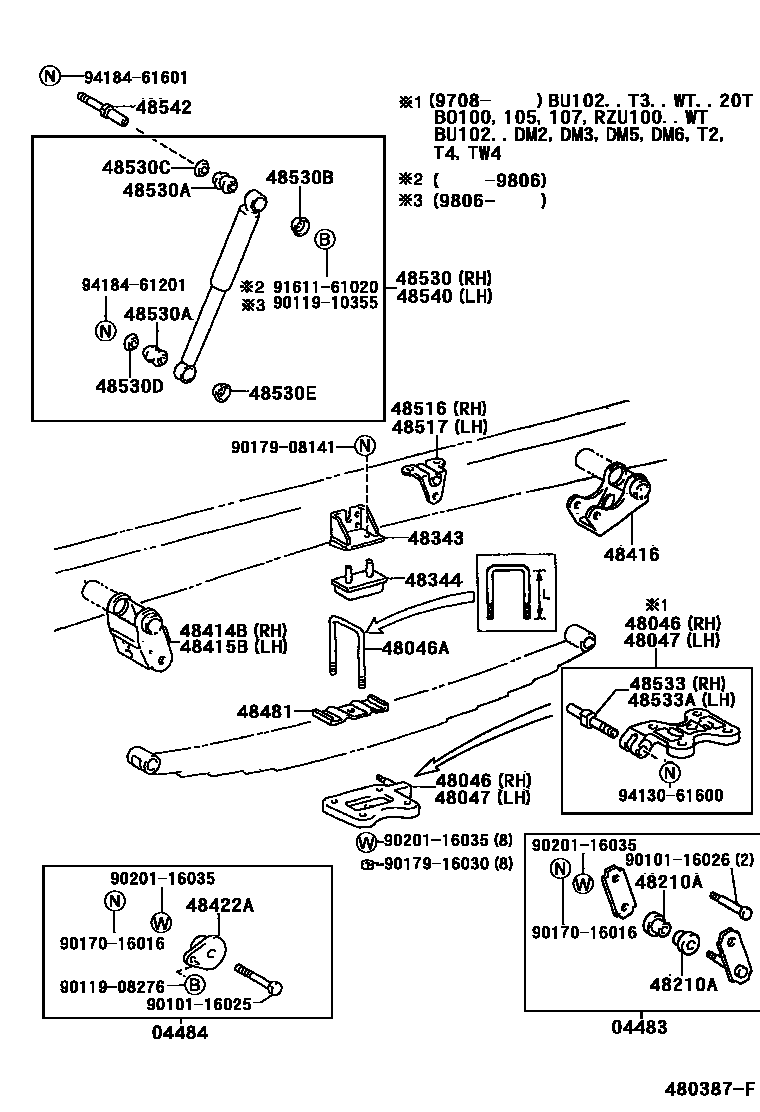

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1 0004 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1 0017 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1 0035 1 0036 1 0037 1 0038 1 0039 1 0040 1 0041 1 0042 1 0043 1 0044 1 0045 1 0046 1 0047 1 0048 1 0049 1 0050 1 0051 1 0052 1 0053 1 0054 1 0055 1

04483SHACKLE KIT, REAR SPRING

main04483-36100iBU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)199505

main04483-36110iBU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140199505

04484PIN KIT, REAR SPRING

main04484-36070iBU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)199505

main04484-36080iBU102..IV4;BU14#,182,202,212,222,RZU140,XZU140;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB)199505

sub04482-37040

main04484-36090iBU162199505-199906

main04484-36100iBU13#,172,XZU130199505-199905

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36090iBU100,102,12#..ST199505-199806

main48046-36121iBU112..T3199505-199806

main48046-36160iBU10#,RZU100..T2199505-199708

main48046-36170iBU100,102,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-199708

main48046-36180iBU10#,RZU100..DM2,DM5,T4,TW4199505-199708

main48046-36190iBU112..DMP..20T199505-199708

main48046-36220iBU112..30T199610-199905

sub48046-36190

sub48191-36120

main48046-36230iBU162..DM5,T4199505-199708

main48046-37010iBU102,RZU100..T4..30T;RZU100..30T..(EFI,LPG);BU112,162..(DM7,DM8)..20T199708-200005

main48046-37020iBU10#,RZU100..T2199708-200005

main48046-37030iBU10#,RZU100..(DM2,DM5,T4,TW4)..20T199708-200005

main48046-37040iBU162..DM5,T4199708-199906

main48046-37050iBU10#,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199708-200005

main48046-37060iBU112..T3199806-199905

main48046-37070iBU100,102,120..ST199806-199905

main48047-36190iRZU100..30T;BU100,102,162,RZU100..DM3,DM6,DM7,T5199505-199708

main48047-37010iBU100,102,RZU100..DM3,DM6199708-200005

main48473-36100iBU182..T4;BU13#,14#,202,212,222,RZU140..20T..(DSL,EFI)199505-200005

main48473-36110iBU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)199505-199906

main48473-36110iBU212..30T199712-199906

main48473-36190iBU102,RZU100..T3..30T..(DSL,LPGB)199505-200005

48046ABOLT, U(FOR REAR SPRING)

main90117-16007iBU162..03S..IV3199610-199906

main90117-16012iBU212,222..(T2,T3,TW1)..DSL199505-199906

main90117-16014iBU10#,RZU100..DM2,T2199505-199708

main90117-16014iBU100,102,RZU100..(T4,TW4)..IV3199505-199708

main90117-16018iXZU140;BU142..6F;BU147..T3..IV3;BU212,222..TD..IV3..6F;BU212..(T3,T4)..DSL..IV3;BU212..(06S,07S)..IV3..6F199505-199906

main90117-16018iBU182..20T;BU102,142,RZU100..30T199505-200005

main90117-16018iBU172..30T;BU212,222..(T3,T4,TW1,TW4)..DSL..IV3..6F199505-199906

main90117-16021iBU132,162..DM5,T4199505-199905

main90117-16022iBU212..T4,TW4;BU222..T4..TD199505-199905

main90117-16022iBU140,142..T3..20T..IV3199505-199906

main90117-16024iBU112..30T199505-199905

main90117-16025iBU182..30T199505-199906

main90117-16025iBU147..T3..IV3;BU142,XZU140..30T;BU222..TD..IV3..6F;BU212..(ALV,T3,T4,TW1,TW4)..IV3..6F199505-199906

main90117-16025iBU212..(T3,T4)..DSL..IV3..(4FC,5F)199505-199905

main90117-16031iBU12#199505-199905

main90117-16035iBU100,102,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-199708

main90117-16041iBU102,RZU100..DM5199708-200005

main90117-16045iBU10#,RZU100..T4,TW4199505-199708

main90117-16050iRZU100..(T3,TW1)..20T;BU100,102,107..T3..WT..20T..IV3199708-200005

main90117-16051iBU10#,RZU100..(T4,TW4)..20T199708-200005

main90117-16052iRZU100..T2..CBU;BU105,107..T2,T3;RZU100..(T2,T4)..IV3;BU100,102..(DM2,T2,T4,TW4)..20T199708-200005

main90117-16115iBU212..T4,TW4;BU222..T4..TD;BU212..T2..IV3..6F;BU142,147..T3..20T;BU102,132,162..DM7,TL4,TW1199505-199906

main90117-16115iBU212..T2..IV3..(4FC,5F)199505-199905

main90117-16122iBU162..03S..IV3199505-199610

main90117-16122iBU100,102..ST199505-199905

main90117-16142iBU202,212,222..(T4,TW4)..DSL199505-199906

main90117-16144iBU172..T3,TW1;BU212,222..(T3,T4,TW1,TW4)..DSL..IV3..6F199505-199906

main90117-16144iBU202,212,222..(T3,T4,TW1,TW4)..DSL..IV3..(4FC,5F)199505-199905

main90117-16158iBU102..DM5199505-199708

main90117-16184iBU137..IV3..4FC;BU212,222..(T2,T3,TW1)..DSL;BU112,14#,162,RZU140..(DM5,T2,T3,T4,TW4)..20T199505-200005

main90117-16184iBU13#..20T..IV3..5F199505-199905

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-36090iBU100,102,12#..ST199505-199806

main48046-36190iRZU100..30T;BU100,102,162,RZU100..DM3,DM6,DM7,T5199505-199708

main48046-37010iBU100,102,RZU100..DM3,DM6199708-200005

main48046-37070iBU100,102,120..ST199806-199905

main48047-36121iBU112..T3199505-199806

main48047-36160iBU10#,RZU100..T2199505-199708

main48047-36170iBU100,102,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-199708

main48047-36180iBU10#,RZU100..DM2,DM5,T4,TW4199505-199708

main48047-36190iBU112..DMP..20T199505-199708

main48047-36220iBU112..30T199610-199905

sub48047-36190

sub48191-36120

main48047-36230iBU162..DM5,T4199505-199708

main48047-37010iBU102,RZU100..T4..30T;RZU100..30T..(EFI,LPG);BU112,162..(DM7,DM8)..20T199708-200005

main48047-37020iBU10#,RZU100..T2199708-200005

main48047-37030iBU10#,RZU100..(DM2,DM5,T4,TW4)..20T199708-200005

main48047-37040iBU162..DM5,T4199708-199906

main48047-37050iBU10#,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199708-200005

main48047-37060iBU112..T3199806-199905

main48473-36100iBU182..T4;BU13#,14#,202,212,222,RZU140..20T..(DSL,EFI)199505-200005

main48473-36110iBU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)199505-199906

main48473-36110iBU212..30T199712-199906

main48473-36190iBU102,RZU100..T3..30T..(DSL,LPGB)199505-200005

48210SPRING ASSY, REAR RH

main48210-36690iBU142,212..(ALV,T3)..MTM..30T..IV3199805-199906

main48210-36690iBU142,212..(ALV,T3)..30T..IV3..6F199610-199905

main48210-36810iBU102..275T199505-199905

main48210-36861iBU145,147..T3..IV3199708-199905

main48210-36861iBU140,142..T3..20T..IV3199505-199906

main48210-37070iBU212,222..T3,TW1199505-199906

main48210-37080iBU212..T2199505-199905

main48210-37090iBU212..T3..TD..IV3199505-199708

main48210-37090iBU212..30T199712-199906

main48210-37090iBU142,XZU140..30T;BU212..(T3,TW1)..DSL..IV3;BU212,222..T3..TD..IV3..6F199505-199906

main48210-37090iBU212..T3..TD..IV3199505-199708

main48210-37100iBU202,212,222..T4,TW4199505-199905

main48210-37120iBU202,212,222..(T4,TW4)..DSL..IV3..(4FC,5F)199505-199905

main48210-37120iBU212,222..(T4,TW4)..DSL..IV3..6F199708-199905

main48210-37130iBU100,102,RZU100..(T4,TW4)..20T199505-199710

sub48210-37132

main48210-37132iBU100,102,RZU100..(T4,TW4)..20T199710-200005

main48210-37140iBU107..T3..IV3;BU100,102,RZU100..(T3,TW1)..WT..20T..(CBU,IV3)199505-200005

main48210-37151iBU172..T4199708-199905

main48210-37160iBU105,107..T2199610-199905

main48210-37170iBU132..20T199505-199905

main48210-37180iBU137..IV3..4FC;BU132,XZU130..(DM7,T3)..30T199505-199905

main48210-37180iBU137..IV3..4FC;BU132,XZU130..(DM7,T3)..30T199505-199905

main48210-37190iBU102..IV4;BU14#..T3..20T199505-199906

main48210-37200iBU212..T2..IV3..(4FC,5F)199505-199905

main48210-37200iBU212..T2..IV3..6F199708-199905

main48210-37220iBU212,222..(T3,TW1)..DSL..IV3..6F199708-199906

main48210-37220iBU212,222..(T3,TW1)..DSL..IV3..(4FC,5F)199505-199905

main48210-37230iBU105,107..T4,TW4199610-199809

sub48210-37232

main48210-37232iBU105,107..T4,TW4199809-199905

main48210-37240iBU137199610-199905

main48210-37260iRZU100..30T..(EFI,LPG);BU102,RZU100..(T4,T5)..30T199505-200005

main48210-37270iBU172..05S199505-199905

main48210-37280iBU147..T4,TW4199610-199905

main48210-37290iXZU130..20T199610-199905

main48210-37300iBU112..30T199610-199905

main48210-37310iBU132..TL4199702-199905

main48210-37320iBU105,107..T3199708-199905

main48210-3B160iBU212..T4..DSL..IV3..(4FC,5F)199505-199905

main48210-3B160iBU212,222..T4..TD..IV3199505-199708

main48210-3B160iBU222..T4..TD..IV3;BU212..(T4,TW4)..IV3..6F199708-199905

main48210-3B180iBU100..T1,TW2199505-199905

main48210-3B190iBU100,102..T3..ST199505-199905

main48210-3B200iBU12#199505-199905

main48210-3B220iBU100,102,RZU100..T2199505-200005

main48210-3B240iBU102..DM2199505-199905

main48210-3B260iBU112..T3199505-199905

main48210-3B441iBU162..03S199505-199608

sub48210-3B443

main48210-3B443iBU162..03S199608-199610

main48210-3B444iBU162..03S199610-199906

main48210-3B451iBU162..DM5199505-199511

sub48210-3B452

main48210-3B452iBU162..DM5199511-199905

main48210-3B491iBU182..20T199505-199608

sub48210-3B492

main48210-3B492iBU182..20T199608-199906

main48210-3B521iBU10#,RZU100..DM3,DM6199505-199511

sub48210-3B522

main48210-3B522iBU10#,RZU100..DM3,DM6199511-199605

main48210-3B523iBU100,102,RZU100..DM3,DM6199605-200005

main48210-3B541iBU142,RZU140..(T4,TW4)..20T199505-200005

main48210-3B551iBU14#..T2199505-199906

main48210-3B600iBU100,102..T4..20T..IV3199610-199906

main48210-3B611iBU102,RZU100..DM5199505-199710

sub48210-3B613

main48210-3B613iBU102,RZU100..DM5199710-200005

main48210-3B640iBU102,RZU100..T3..30T..(DSL,LPGB)199505-200005

main48210-3B651iBU162..DM7199505-199608

sub48210-3B653

main48210-3B651iBU162..03S..IV3199505-199608

sub48210-3B653

main48210-3B653iBU162..DM7199608-199610

main48210-3B653iBU162..DM7199608-199610

main48210-3B654iBU162..DM7199610-199905

main48210-3B654iBU162..03S..IV3199610-199906

main48210-3B701iBU105..(T4,TW4)..IV3;BU107..06S..IV3..4FC199708-199809

sub48210-3B703

main48210-3B701iBU107..T4..IV3;BU107..06S..IV3..5F;BU100,102,RZU100..(T4,TW4)..20T..IV3199505-199809

sub48210-3B703

main48210-3B703iRZU100..TW4;BU10#,RZU100..(T4,TW4)..20T..IV3199809-200005

main48210-3B710iBU112..DMP..20T199505-199905

main48210-3B720iBU102..T3..30T..DSL..IV3199505-199905

main48210-3B781iBU172..02S..20T199505-199511

sub48210-3B782

main48210-3B782iBU172..T3..20T199511-199905

main48210-3B791iBU172..30T199505-199511

sub48210-3B792

main48210-3B792iBU172..30T199511-199905

main48210-3C080iBU182..30T199505-199905

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002iBU102..T3..20T;RZU100..T3..(EFI,LPG);BU100,105,107,112,12#,162;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)199505

48343BRACKET, REAR AXLE CUSHION

main48308-36040iBU100,102,RZU100..T2199505

main48308-37010iBU105,107..T2199610-199905

main48343-36040iBU100,102,12#..ST199505-199905

main48343-36050iBU112..T3199505-199905

main48343-36060iBU112..DMP199505-199905

48344STOPPER, BUMPER, REAR

main48306-37030iBU100,102,RZU100..(T4,TW4)..20T199505

main48306-37040iBU105,107..T4,TW4199610-199905

main48344-36090iBU14#..T2199505-199906

main48344-36140iBU12#;BU100..T1,TW2199505-199905

main48344-36150iBU100,102..T3..ST199505-199905

main48344-36170iBU112..DMP199505-199905

main48344-36180iBU132..T4,TL4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB)199505

main48344-36190iBU142..30T;BU142..T3..20T;BU140,145,147,XZU140..T3199505-199906

main48344-36200iBU212,222..TD..IV3..6F;BU142,RZU140..(T4,TW4)..20T;BU212..(T3,T4,TW1,TW4)..DSL..IV3199505

main48344-36200iBU212,222..TD..IV3199505-199708

main48344-36200iBU212..30T199712-199906

main48344-36210iBU100,102..T4..20T..IV3199610-199906

main48344-36220iBU202,212,222..T3,T4,TW1,TW4199505-199906

main48344-36220iBU212..(T3,T4)..DSL..IV3..(4FC,5F)199505-199905

main48344-36230iBU105,107..T3199708-199905

main48344-36250iBU212..T2199505-199905

main48344-36260iBU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1199505-199905

main48344-36270iBU112..T3199505-199905

main48344-36280iBU102..T3..30T..DSL..IV3199505-199905

main48344-36310iBU107..T3..IV3;BU100,102,RZU100..(DM2,T3,TW1)..WT..20T..(CBU,IV3)199505

main48344-36330iBU162..DM5,T4199505-199906

main48344-36351iBU182199505-199906

main48344-36360iBU172199505-199905

main48344-36380iBU102,RZU100..DM5;RZU100..T4..LPG..IV3199610-199805

main48344-36380iBU10#,RZU100..(T4,TW4)..IV3199505-199610

main48344-36380iBU107..T4..IV3..5F;BU100,102..T4..20T..IV3199610-199906

main48344-36390iBU162..DM7199505-199905

main48344-36400iBU162199505-199906

main48344-37020iBU102..T4..30T;BU100,102..DM3,DM6,T5;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG)199505

main48344-37030iBU137199610-199905

main48344-37040iBU147..T4,TW4199610-199905

48414BBRACKET, SPRING, NO.3 RH

main48414-36210iBU102..IV4;BU14#,182,202,212,222,RZU140,XZU140;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB)199505

main48414-36230iBU100,102,12#..ST199505-199905

main48414-36240iBU10#,RZU100..T2199505

main48414-36250iBU100,102,RZU100..(DM2,DM5,T4,TW4)..20T199505

main48414-36260iBU102..T4..30T;BU102..DM3,DM6,T5;BU102..T3..WT..20T;RZU100..(DM6,T4)..LPGB;BU100,105,107,RZU100..(DM6,T3,TW1)..WT..(DSL,EFI,LPG)199505

main48414-36270iBU112199505-199905

main48414-36290iBU162199505

main48414-36302iBU13#,172,XZU130199505-199905

main48414-37020iBU105,107..T4,TW4199610-199905

48415BBRACKET, SPRING, NO.3 LH

main48414-36210iBU102..IV4;BU14#,182,202,212,222,RZU140,XZU140;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB)199505

main48414-36240iBU10#,RZU100..T2199505

main48414-36250iBU100,102,RZU100..(DM2,DM5,T4,TW4)..20T199505

main48414-36260iBU102..T4..30T;BU102..DM3,DM6,T5;BU102..T3..WT..20T;RZU100..(DM6,T4)..LPGB;BU100,105,107,RZU100..(DM6,T3,TW1)..WT..(DSL,EFI,LPG)199505

main48414-36270iBU112199505-199905

main48414-36302iBU13#,172,XZU130199505-199905

main48414-37020iBU105,107..T4,TW4199610-199905

main48415-36070iBU100,102,12#..ST199505-199905

main48415-36090iBU162199505

48416BRACKET, SPRING, NO.4

main48416-36190iBU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140199505

main48416-36230iBU10#,RZU100..T2199505

main48416-36240iBU10#,RZU100..(DM2,DM5,T4,TW4)..20T199505

main48416-36250iBU102..T4..30T;BU102..DM3,DM6,T5;BU102..T3..WT..20T;RZU100..(DM6,T4)..LPGB;BU100,105,107,RZU100..(DM6,T3,TW1)..WT..(DSL,EFI,LPG)199505

main48416-36260iBU112199505-199905

main48416-36270iBU100,102,12#..ST199505-199905

main48416-36280iBU162199505

main48417-36110iBU10#,RZU100..T2199505

main48417-36120iBU10#,RZU100..(DM2,DM5,T4,TW4)..20T199505

main48417-36130iBU102..T4..30T;BU102..DM3,DM6,T5;BU102..T3..WT..20T;RZU100..(DM6,T4)..LPGB;BU100,105,107,RZU100..(DM6,T3,TW1)..WT..(DSL,EFI,LPG)199505

main48417-36140iBU112199505-199905

main48417-36150iBU162199505

48422ASUPPORT, REAR SPRING PIN

main48422-36030iBU102..IV4;BU14#,182,202,212,222,RZU140,XZU140;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB)199505

sub48422-37010

main48422-36090iBU102..T3..20T;BU100,105,107,112,12#;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,T5,TW1,TW4)..(CBU,IV3)199505

main48422-36100iBU13#,162,172,XZU130199505-199906

48481SEAT, REAR SPRING, UPPER

main48481-36040iBU182..T4;BU100,102,12#..ST;BU14#,202,212,222,RZU140..20T..(DSL,EFI)199505

main48481-36040iBU212..(T3,T4)..DSL..IV3..(4FC,5F)199505-199905

main48481-36050iBU222..TD;BU142..30T;BU142,147..T3..20T;BU212..T3,T4,TW1,TW4;BU102,XZU140..T3..(275T,30T);BU102,182..(T3,TW1)..(02S,06S)199505-199906

main48481-36050iBU212,RZU100..(ALV,T3)..30T..(DSL,LPGB)199712

main48481-36080iBU132,172,XZU130..DM7,T3,TL4,TW1199505-199905

main48481-37020iBU13#,172..T4199505-199905

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36040iBU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T199505

main48505-36050iBU100,105,107,14#,182,202,212,RZU140..WT..20T;BU102,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT199505

main48505-36070iBU162..03S199505

main48505-36080iBU162..02S;BU13#,172,XZU130199505-199905

main48516-36050iBU100,102,12#..ST199505-199905

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36040iBU222;BU102,RZU100..DM2,DM5;BU142,182,212,XZU140..30T199505

main48505-36050iBU100,105,107,14#,182,202,212,RZU140..WT..20T;BU102,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT199505

main48505-36070iBU162..03S199505

main48505-36080iBU162..02S;BU13#,172,XZU130199505-199905

main48516-36050iBU100,102,12#..ST199505-199905

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-65010iBU297199701-199905

sub48530-65030

main48531-80441iBU100,102,12#..ST199505-199905

main48531-80442iBU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)199505-200005

main48531-80443iBU102..IV4;BU102..T3..(275T,30T);BU112,14#,RZU140,XZU140..TR199505-200005

main48531-80444iBU112..DMP199505-199905

main48531-80445iBU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5199505-200005

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16011iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU102..IV4;BU14#,RZU140,XZU140;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB)199505-199806

main90948-03004iBU100,102,12#..ST199505-199905

main90948-03007iBU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT199505-199806

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT199505

main90948-03007iBU100,102,12#..ST199505-199806

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130199505-199806

main90948-03007iBU102..IV4;BU102..T3..(275T,30T);BU112,14#,RZU140,XZU140199505-199806

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48533-36070iBU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)199708

main48533-65010iBU297199701-199905

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48533-36070iBU112..DMP..20T;BU102..T3..WT..20T;BU100,105,107,162..WT;RZU100..T3..(EFI,LPG);BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)199708

main48533-65010iBU297199701-199905

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-65010iBU297199701-199905

sub48530-65030

main48531-80441iBU100,102,12#..ST199505-199905

main48531-80442iBU10#,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..WT..20T..(CBU,IV3)199505

main48531-80443iBU102..IV4;BU14#,RZU140,XZU140;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB)199505-199806

main48531-80444iBU112199505-199905

main48531-80445iBU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5199505

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-26020iBU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140199505

main48542-36020iBU100,102,12#..ST199505-199905

sub48542-37030

9010116025

main90101-16025

9010116026

main90101-16026

9011908276

main90119-08276

9011910355

main90119-10355

9017016016

main90170-16016

9017908141

main90179-08141

9017916030

main90179-16030

9020116035

main90201-16035

9161161020

main91611-61020

9413061600

main94130-61600

9418461201

main94184-61201

9418461601

main94184-61601

38 parts on this diagram · 48 diagrams in section
