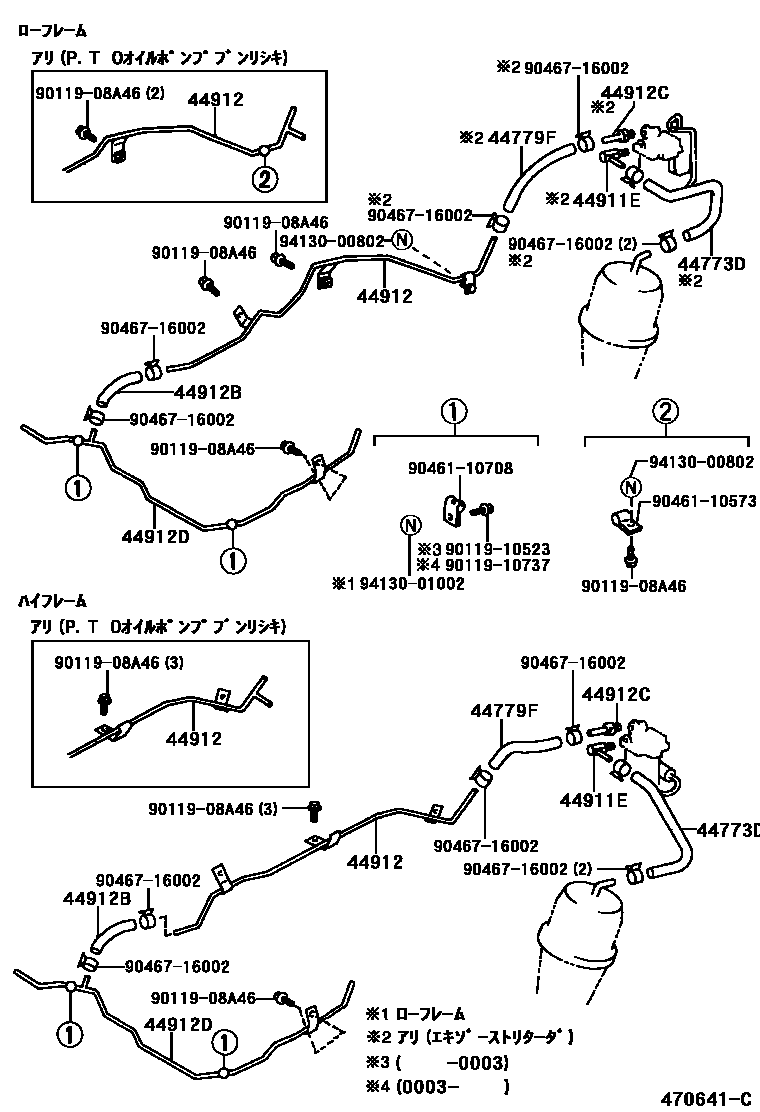

EXHAUST BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36031iBU112199505-199905

main44773-36041iBU202,212,222199505-199708

main44773-36130iBU162,172,182199505

main44773-37020iBU10#,12#,13#,14#..DSL..(4FC,5F)199505

main44773-37030iXZU130,140199510-199905

main44773-37040iBU142..6F199708

main44773-37050iBU202,212,222199708

main44773-65010iBU297199701-199905

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44771-37120iBU102,RZU100..LPGB199708

main44779-36010iBU202,212,222199505

main44779-36080iBU162,172,182199505

main95446-09180iBU10#,112,12#,13#,14#,XZU130,140..DSL199505

main95446-09220iBU297199701-199905

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBU10#,112,12#,13#,14#,162,172,182,297..DSL,TD199505

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44765-37010iBU132..T3,T4;BU100,102,12#,140,142..DSL199607-199906

main44765-37020iBU112199505-199905

main44765-37070iBU105,107,137,145,147199610-199905

main44765-37080iBU132..TL4199702-199905

main44912-37040iBU202,212,222199505-199906

main44912-37080iBU162,172,182199505-199906

main44912-37090iBU102..T4..20T..5F;BU102..(DM6,T2,T3,T5,TW4)..DSL..5F;BU100,132,140,142..(DM6,T1,T2,T3,T4,TW2,TW4)..DSL..5F199510-199906

main44912-37100iBU202,212,222..5F199505-199905

main44912-37130iBU172,182..T4199708-199905

main44912-37140iBU112..T3..5F199505-199905

main44912-37190iBU105,145;BU107,147..T3..5F199708-199905

main44912-37220iBU102,142,RZU100..LPGB199607

main44912-37230iBU297199701-199905

main44912-37260iBU132..TL4..5F199702-199905

44912BHOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main95446-09110iBU142..LPGB199708-199905

main95446-09130iBU132..TL4199702-199905

main95446-09380iBU297199701-199905

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBU10#,112,12#,13#,14#,162,172,182..DSL199505

44912DTUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)

main44764-37080iBU102,142,RZU100..LPGB199605

main44764-37100iXZU130,140199510-199905

main44912-37050iBU142..LPGB199605-199703

main44912-37180iBU120..03S;BU142..DSL;BU107,137,147..5F;BU100,102,105,112,132,140,145,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,LPGB)199708

main44912-37240iBU107,137,147..4FC199610-199905

main44912-37250iBU132..TL4199702-199905

9011908A46

main90119-08A46

9011910523

main90119-10523

9011910737

main90119-10737

9046110573

main90461-10573

9046110708

main90461-10708

9046716002

main90467-16002

9413000802

main94130-00802

9413001002

main94130-01002

15 parts on this diagram · 6 diagrams in section
