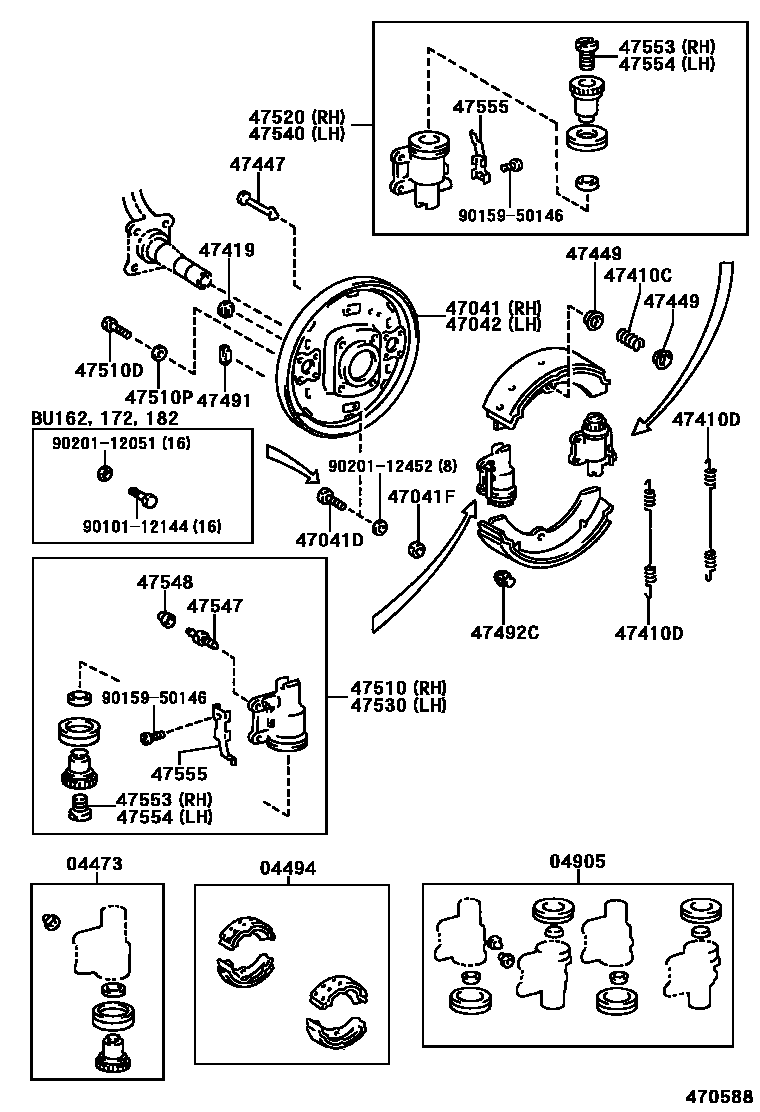

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1��(�-�������)

04473CYLINDER KIT, FRONT WHEEL

main04473-36030×2iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

main04473-36040×2iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

main04473-36050×2iBU102..30T..4FC;BU212..(T3,T4)..4FC;BU112,132,142..(DM7,T3,TL4)..4FC199505-199905

sub04473-36051

main04473-36060×2iBU142..T3..20T..IV3..5F;BU212..(ALV,T3)..MTM..DSL..IV3199505-199906

sub04473-36061

main04473-36070×2iBU212..T2..MTM;BU100,102..T3..ST;BU12#,132,162,RZU140..(03S,06S)..20T;BU100,102,140,142,172,182,RZU100..(T1,T2,T4,TW2,TW4)..(175T,20T)..5F199505-200005

main04473-36080×2iBU212..T2..MTM;BU100,102..T3..ST;BU12#,132,162,RZU140..(03S,06S)..20T;BU100,102,140,142,172,182,RZU100..(T1,T2,T4,TW2,TW4)..(175T,20T)..5F199505-200005

main04473-36090×2iBU100..T2..IV3199505-199610

main04473-36100×2iBU100..T2..IV3199505-199610

main04473-36110×2iBU162..03S..IV3199505-199906

sub04473-36111

main04473-36120×2iBU162..03S..IV3199505-199906

sub04473-36121

main04473-36130×2iBU182..T3..20T..IV3199505-199906

sub04473-36131

main04473-36140×2iBU182..T3..20T..IV3199505-199906

sub04473-36141

main04474-36080×2iBU102,162,RZU100..DM2,DM5199505-200005

main04474-36090×2iBU102,162,RZU100..DM2,DM5199505-200005

04494SHOE KIT, FRONT BRAKE

main04494-36150iBU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T199505-200005

main04494-36160iBU100,102,12#..ST;BU162,172,182..DM5,T4;BU100,102,140,142,212,RZU100..DM2,T2199505-200005

sub04494-36280

main04494-36190iBU202,212,222..T3,T4,TW4;BU10#,112,132,14#,162,172,182,RZU100,XZU130..(DM3,DM6,DM7,DM8,T3,T5,TW1)..WT..(DSL,EFI,LPG)199505-199610

main04494-36210iBU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,162,172,182,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,199704-200005

main04496-36080iBU100,102,12#..ST;BU100,102,140,142,212,RZU100..T2199505-200005

REBUILT

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36110iBU10#,132,142,162,RZU100..(DM3,DM6,DM7,T3,T5,TW1)..WT..5F;BU112,140,172,182,202,212,222..(DM7,DM8,T3,T4,TW1,TW4)..5F199505-199506

main04905-36120iBU212..T2..MTM;BU100,102..T3..ST;BU12#,132,162,RZU140..(03S,06S)..20T;BU100,102,140,142,172,182,RZU100..(T1,T2,T4,TW2,TW4)..(175T,20T)..5F199505-200005

main04905-36130iBU162..03S..IV3199610-199906

sub04905-36131

main04905-36140iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199506-200005

main04905-36150iBU142,182..T3..20T..IV3..5F;BU212..(ALV,T3)..MTM..DSL..IV3199505-199906

sub04905-36151

main04906-36200iBU102,162,RZU100..DM2,DM5199505-200005

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36110iBU10#,12#..ST;BU10#,14#,212,RZU100..DM2,T2199505-199610

main47041-36111iBU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2199610-200005

main47041-36150iBU162..DM5,T4199505-199610

main47041-36151iBU162,172,182..DM5,T4199610-199906

main47041-37030iBU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(D199505-200005

main47041-37040iBU162,172,182..DM7,T3,TW1199505-199906

main47041-37070iBU10#,132,142,RZU100..DM5,T4,TW4199505-199610

main47041-37071iBU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T199610-200005

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113×8iBU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD199505-200005

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200×8iBU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD199505-200005

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36110iBU10#,12#..ST;BU10#,14#,212,RZU100..DM2,T2199505-199610

main47042-36111iBU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2199610-200005

main47042-36150iBU162..DM5,T4199505-199610

main47042-36151iBU162,172,182..DM5,T4199610-199906

main47042-37030iBU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(D199505-200005

main47042-37040iBU162,172,182..DM7,T3,TW1199505-199906

main47042-37070iBU10#,132,142,RZU100..DM5,T4,TW4199505-199610

main47042-37071iBU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T199610-200005

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012×4iRZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD199505-200005

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006×4iBU100..T2..IV3;BU162..03S..IV3199505-199906

main90507-29002×4iBU102,RZU100..DM5199505-200005

main90507-29004×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505-200005

main90507-29005×2iBU100,102,132,142,RZU100,140..(T4,TW4)..20T199505-200005

main90507-29006×4iBU142,182,212..T3..20T..DSL..IV3..5F199505-199906

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011×4iBU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD)199505-200005

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20010×4iBU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T199505-200005

main47447-35020×4iBU100,102,12#..ST;BU162,172,182..DM5,T4;BU100,102,140,142,212,RZU100..DM2,T2199505-200005

main47447-36020×4iBU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,162,172,182,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,199505-200005

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iRZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD199505-200005

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×8iBU100..T2..CBU;BU100..DM6,T1,T3,T4,TW2,TW4;BU102,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..DSL,EFI,LPG,TD199505-199610

sub47491-36020

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47492-28010×4iBU202,212,222..T3,T4,TW4;BU10#,112,132,14#,162,172,182,RZU100,XZU130..(DM3,DM6,DM7,DM8,T3,T5,TW1)..WT..(DSL,EFI,LPG)199505-199610

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main44510-36180iBU212..30T199712-199906

main47510-36091iBU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,RZU100..(T1,T2,T4,TW2,TW4)..(175T,20T)..5F199505-200005

main47510-36111iBU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC199505-199906

main47510-36141iBU162,172,182..T4199505-199906

main47510-36151iBU162..03S..IV3199505-199906

main47510-36170iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

sub47510-36171

main47510-36180iBU102..30T..4FC;BU212..(T3,T4)..4FC;BU112,132,142..(DM7,T3,TL4)..4FC199505-199905

main47510-37030iBU102,162,RZU100..DM2,DM5199505-200005

main47510-37040iBU182..T3..20T..IV3199505-199906

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-08081×16iBU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;RZU100..DM5,T2,T4,TW4;BU10#,14#,162,172,182..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505-200005

main90101-10127×16iBU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,162,172,182,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,199505-200005

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-08002×16iBU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;RZU100..DM5,T2,T4,TW4;BU10#,14#,162,172,182..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)199505-200005

main90201-10287×16iBU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,162,172,182,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,199505-200005

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36091iBU100,102..ST;BU172,182..T4;BU12#,162..03S,06S;BU100,102,140,142,212,RZU100..T2..MTM199505-200005

main47520-36111iBU100..T2..IV3199505-199610

main47520-36141iBU162..03S..IV3199505-199906

main47520-36162iBU100,102,132,142,RZU100,140..(T4,TW4)..20T..5F199505-200005

main47520-36172iBU102,142..T4..20T..4FC199505-199906

main47520-37030iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

main47520-37040iBU142..T3..20T..IV3..5F;BU212..(ALV,T3)..MTM..DSL..IV3199505-199906

main47520-37050iBU102,RZU100..DM5199505-200005

main47520-37060iBU182..T3..20T..IV3199505-199906

main47560-36191iBU102..DM2;BU162..DM5199505-199905

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36091iBU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,RZU100..(T1,T2,T4,TW2,TW4)..(175T,20T)..5F199505-200005

main47530-36111iBU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC199505-199906

main47530-36141iBU162,172,182..T4199505-199906

main47530-36151iBU162..03S..IV3199505-199906

main47530-36170iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

sub47530-36171

main47530-36180iBU102..30T..4FC;BU212..(T3,T4)..4FC;BU112,132,142..(DM7,T3,TL4)..4FC199505-199905

main47530-37030iBU102,162,RZU100..DM2,DM5199505-200005

main47530-37040iBU182..T3..20T..IV3199505-199906

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36091iBU100,102..ST;BU172,182..T4;BU12#,162..03S,06S;BU100,102,140,142,212,RZU100..T2..MTM199505-200005

main47540-36111iBU100..T2..IV3199505-199610

main47540-36141iBU162..03S..IV3199505-199906

main47540-36162iBU100,102,132,142,RZU100,140..(T4,TW4)..20T..5F199505-200005

main47540-36172iBU102,142..T4..20T..4FC199505-199906

main47540-37030iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

main47540-37040iBU102..30T..4FC;BU212..(T3,T4)..4FC;BU112,132,142..(DM7,T3,TL4)..4FC199505-199905

main47540-37050iBU102,RZU100..DM5199505-200005

main47540-37060iBU182..T3..20T..IV3199505-199906

main47580-36191iBU102..DM2;BU162..DM5199505-199905

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iBU142..T3..5F;BU182,212,RZU100..(ALV,DM6,T3,TW1)..(DSL,EFI,LPG)199905-200005

main47547-27020×2iBU102,142,182,212,RZU100..(ALV,DM6,T3,TW1)..(DSL,EFI,LPG)199905-200005

main47547-60020×2iBU102,RZU100..DM2,DM5;BU162,172,182..DM5,T4199505-200005

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iBU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD199505-200005

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36050×2iBU212..T2..MTM;BU100,102..T3..ST;BU12#,132,RZU140..20T;BU100,102,140,142,162,172,182,RZU100..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T)..5F199505-199905

main47553-36060×2iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

main47553-36070×2iBU162..03S..IV3;BU142,182..T3..20T..IV3..5F;BU212..(ALV,T3)..MTM..DSL..IV3199610-199906

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36040iBU100,102..ST;BU172,182..T4;BU12#,162..03S,06S;BU100,102,140,142,212,RZU100..T2..MTM199505-200005

main47554-36050iBU100,102..ST;BU172,182..T4;BU12#,162..03S,06S;BU100,102,140,142,212,RZU100..T2..MTM199505-200005

main47554-36060×2iBU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100.199505-200005

main47554-36070×2iBU162..03S..IV3;BU142,182..T3..20T..IV3..5F;BU212..(ALV,T3)..MTM..DSL..IV3199610-199906

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36040×4iBU102,162,RZU100..(DM3,DM6,DM7,T2,T3,T4,T5,TW1,TW4)..(DSL,EFI,LPG)..5F;BU100,112,12#,132,140,142,172,182,202,212,222,RZU140,XZU130,140..MTM..(DSL,EFI,TD)199505-200005

main47555-36051×4iBU102,162,RZU100..DM2,DM5199505-200005

9010112144

main90101-12144

9015950146

main90159-50146

9020112051

main90201-12051

9020112452

main90201-12452
