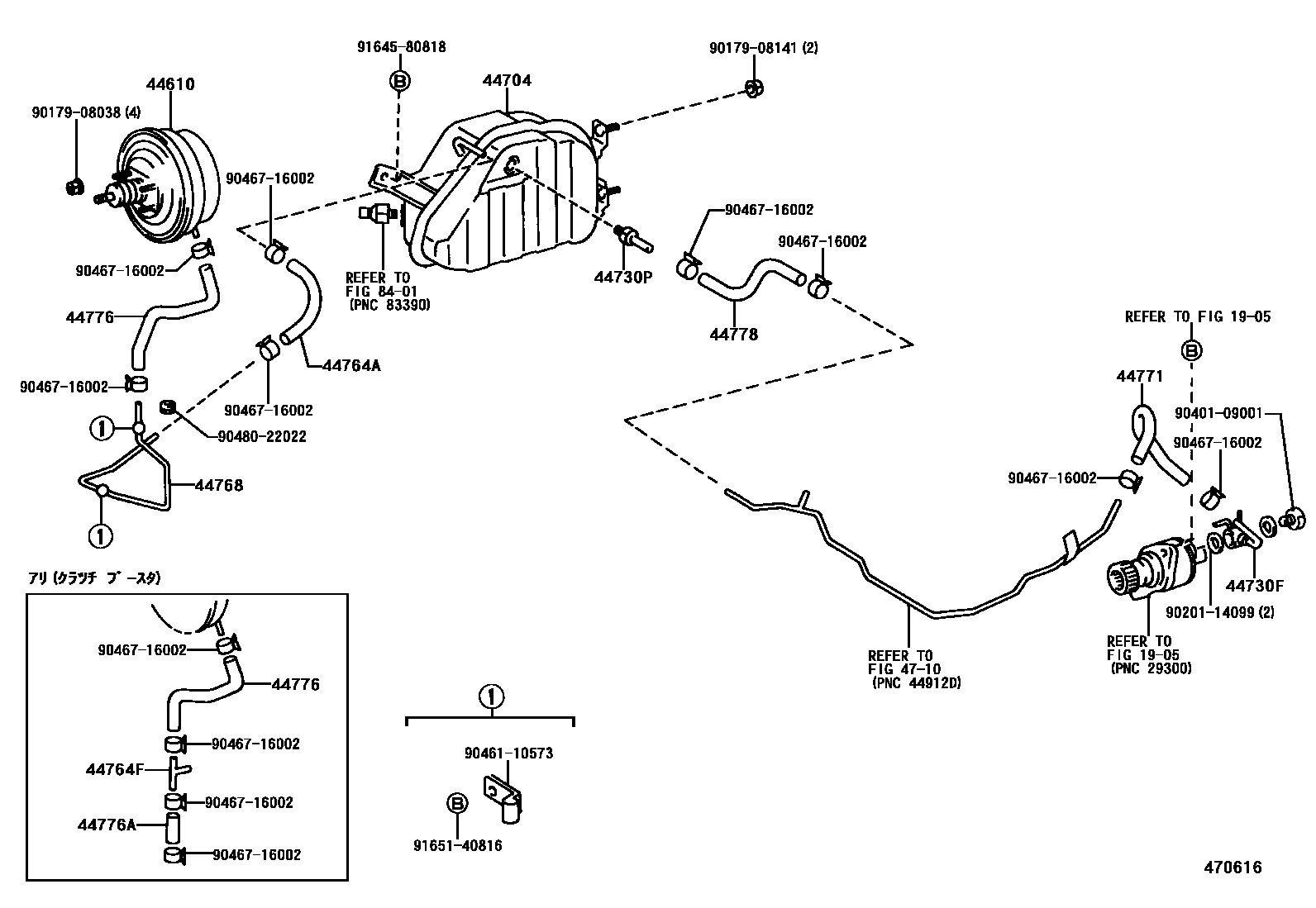

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1905

44610BOOSTER ASSY, BRAKE

main44610-37050iRZU100,140..(DM5,T2,T3,T4,TW1,TW4)..20T199505-200005

main44610-37060iRZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG)199505-200005

main44610-37070iBU182..T4;BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,140,142,172,202,212,222..(TR,V)..(175T,20T)..(CBU,IV3)199505-199906

main44610-37090iBU182..T3;BU172..IV4;BU102..(DM3,DM6,TW1)..DSL;BU102,132,142,172,XZU140..(275T,30T)..DSL;BU100,112,162,212,XZU130..ALV,DM6,DM7,DM8199505-199906

main44610-37100iRZU100..LPGB199905-200005

main44610-37120iRZU100..(DM6,T3,TW1)..(EFI,LPG)199505-200005

main44610-37140iBU105,107,137,145,147..T2,T4,TW4199610-199905

44704RESERVOIR SUB-ASSY, VACUUM

main44704-37030iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD199505

sub44704-37031

sub90119-08A29

main44704-37040iBU132..TL4199702-199905

sub44704-37041

sub90080-11414

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iRZU100,140..(DM5,T2,T3,T4,TW1,TW4)..20T199505

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iRZU100,140..EFI,LPG199505

main90405-09164iBU102,107,112,12#,13#,142,147,162,172,182,202,212,222,RZU100..DSL,LPGB,TD199505

main90405-09178iBU100,105,140,145199505

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD199505

44764TUBE, BOOSTER VACUUM

main44764-37070iRZU100,140..EFI,LPG199505

main44912-37060iRZU100..03S199505-199708

44764AHOSE, BOOSTER VACUUM

main90445-17141iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD199505

main90445-17142iRZU100,140..(DM5,T2,T3,T4,TW1,TW4)..20T199505

main95446-09130iBU132..TL4199702-199905

44764FWAY(FOR BOOSTER VACUUM TUBE)

main90413-09038iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

44768TUBE, BOOSTER VACUUM

main44768-37010iBU202,212,222,297199505

main44768-37030iBU132..TL4199702-199801

main44768-37031iBU132..TL4199801-199905

main44768-37050iRZU100..LPGB;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU10#,112,12#,13#,14#,162,172,182,RZU140,XZU130,140199505

44771HOSE, VACUUM TUBE CONNECTOR

main44771-37020iRZU100..LPG199505

main44771-37040iBU162,172,182199505

main44771-37090iXZU130,140199510-199905

main44771-37160iBU297199701-199905

main44774-37010iBU10#,112,12#,13#,14#,RZU100..DSL,LPGB199505

main44774-37030iRZU100,140..EFI199505

main44774-37060iBU202,212,222199508

main95446-09250iBU202,212,222199505-199508

44776HOSE, BRAKE BOOSTER

main44776-37020iBU102,107,112,13#,142,147,212..4FC;BU100,105,120,140,145,297,RZU100,140..DSL,EFI,LPG,TD199505

main44776-37030iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main90445-17044iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37010iBU132..T3,T4;BU10#,112,12#,137,14#,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD199505

main44778-37020iBU162,172,182..02S,03S199505

main44778-37030iRZU100..T3..20T..CBU;RZU100..30T..(EFI,LPG);RZU100..(DM6,TW1)..(EFI,LPG)199505

main44778-37040iBU172..05S199505-199905

main44778-37070iBU132..TL4199702-199905

4710

8401

9017908038

main90179-08038

9017908141

main90179-08141

9020114099

main90201-14099

9040109001

main90401-09001

9046110573

main90461-10573

9046716002

main90467-16002

9048022022

main90480-22022

9164580818

main91645-80818

9165140816

main91651-40816

25 parts on this diagram · 7 diagrams in section
