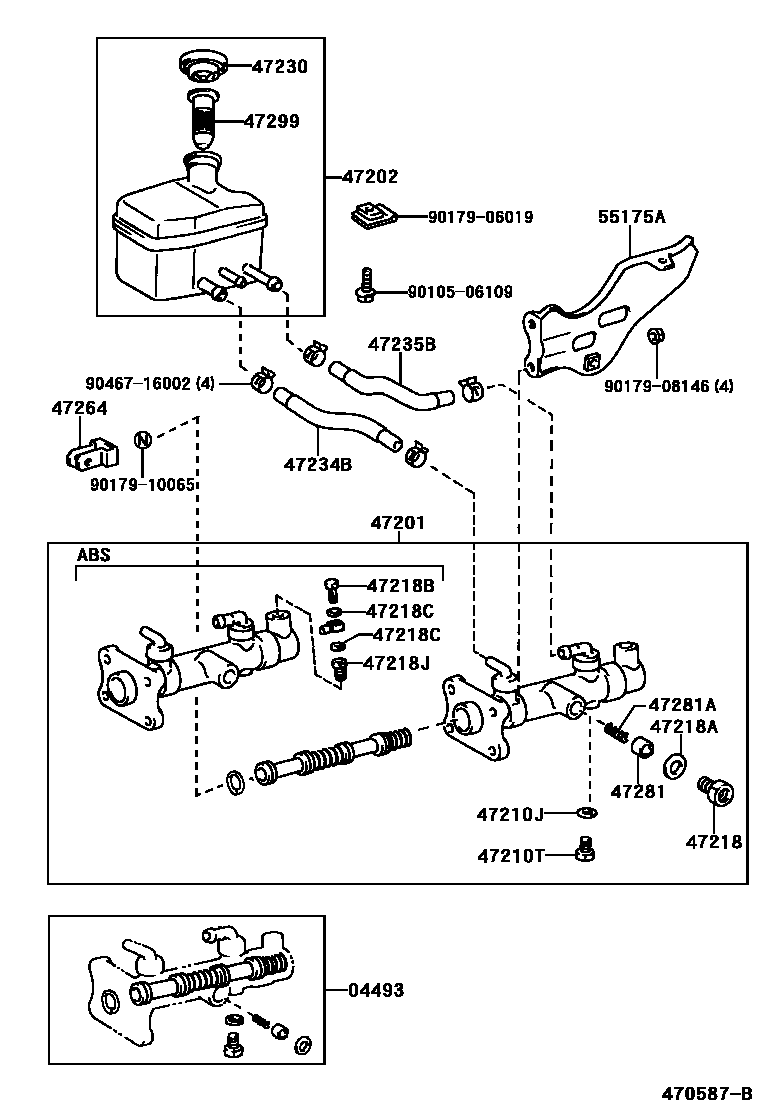

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-37010iBU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3)199505-199805

sub04493-37011

main04493-37011iBU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,120,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3)199805-199810

sub04493-37012

main04493-37012iBU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,120,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3)199810

main04493-37020iBU172..IV4;RZU100..30T..CBU;BU102..T4..30T..DSL;BU142,172..30T..DSL;BU100,RZU100..(DM6,T3)..WT..IV3;BU105,107,112,137,145,147,XZU130..DM7,DM8,T2,T4,TW4;BU102,132,16199505-199805

sub04493-37021

main04493-37020iBU212..30T199712-199805

sub04493-37021

main04493-37021iBU172..IV4;RZU100..30T..CBU;BU102..T4..30T..DSL;RZU100..(DM6,T3)..IV3;BU132,142,172,212,XZU140..30T..DSL;BU100,102,162,182..(DM3,DM6,DM7,T3,TW1)..WT..DSL;BU105,107,199805-199810

sub04493-37022

main04493-37022iBU172..IV4;RZU100..30T..CBU;BU102..T4..30T..DSL;RZU100..(DM6,T3)..(EFI,LPG)..IV3;BU132,142,172,212,XZU140..30T..DSL;BU100,102,162,182..(DM3,DM6,DM7,T3,TW1)..WT..DSL199810

main04493-37030iRZU100..DM6,T3,TW1;BU10#,142,147..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,145,202,212,222,297..T3,T4,TW1,TW4199505-199805

sub04493-37031

main04493-37031iBU297199805-199810

sub04493-37032

main04493-37032iRZU100..LPGB199905

main04493-37032iRZU100..(DM6,T3,TW1)..(EFI,LPG);BU10#,142,147..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4)..(275T,30T);BU112,140,145,202,212,222,297..T3,T4,TW1,TW4199810

main04493-37040iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199805

sub04493-37041

main04493-37041iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199805-199810

sub04493-37042

main04493-37042iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199810-199906

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-37020iBU182..T4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,132,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..(CBU,IV3)199505

main47201-37030iBU212..30T199712-199906

main47201-37030iBU172..IV4;RZU100..30T..CBU;BU102..T4..30T..DSL;BU142,172..30T..DSL;BU100,RZU100..(DM6,T3)..WT..(DSL,EFI,LPG)..IV3;BU105,107,112,137,145,147,XZU130..DM7,DM8,T2,T4,T199505

main47201-37040iRZU100..(DM6,T3,TW1)..(EFI,LPG);BU10#,142,147..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,145,202,212,222,297..T3,T4,TW1,TW4199505

main47201-37040iRZU100..LPGB199905

main47201-37050iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

main47220-37030iBU102,107,112,13#,142,147,212,297..4FC199505

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

main90109-06077iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36040iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

main47218-36070iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

main90430-11001iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505-199906

47218BBOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET)

main90401-10037iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505

47218CGASKET(FOR MASTER CYLINDER FLUID OUTLET)

main90430-10074iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505

47218JPLUG, MASTER CYLINDER FLUID OUTLET

main47218-36080iBU142,147..T3..20T;BU212..T3,T4,TW1,TW4199505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47234BTUBE, RESERVOIR, NO.1

main47234-37020iBU202,212,222,297..175T,20T199505

main47234-37030iBU212,222..(T3,T4,TW1,TW4)..6F199708

main47234-37030iBU202,212,222..(T3,T4,TW1,TW4)..(4FC,5F)199505-199905

main47234-37030iBU212..30T199712

main47234-37050iBU112,140,142..T3..20T;BU100,RZU100..(T3,TW1)..WT..20T..CBU199505

main47234-37050iBU112,140,142..T3..20T;BU100,RZU100..(T3,TW1)..WT..20T..CBU199505

main47234-37060iBU105,107,145,147,182..T2,T4,TW4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,13#,140,142,172,RZU140..(TR,V)..(175T,20T)..(CBU,IV3)199505

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37020iBU202,212,222,297199505

main47235-37040iBU105,107,145,147,182..T2,T4,TW4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,13#,140,142,172,RZU140..(TR,V)..(175T,20T)..(CBU,IV3)199505

main47235-37050iBU112,140,142..T3..20T;BU100,RZU100..(T3,TW1)..WT..20T..CBU199505

main47235-37050iBU112,140,142..T3..20T;BU100,RZU100..(T3,TW1)..WT..20T..CBU199505

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90501-05012iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-37010iBU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,107,112,12#,13#,14#,172,202,212,222,RZU100..(TR,V)..(175T,20T)..(CBU,IV3)199505-199703

main55175-37020iBU182;BU172..IV4;RZU100..DM6;BU102,132,142,172,RZU100..275T,30T;BU100,102,112,162,297,XZU130..DM3,DM6,DM7,DM8,TW1199505-199703

main55175-37020iBU182;BU172..IV4;RZU100..DM6;BU102,132,142,172,RZU100..275T,30T;BU100,102,112,162,297,XZU130..DM3,DM6,DM7,DM8,TW1199505-199905

main55175-37020iBU132,297..TL4,TW1199703-199708

main55175-37040iBU105,107,145,147,182..T2,T4,TW4;BU102,162,RZU100..(DM2,DM5,T2,T3,T4,TW1,TW4)..20T..(CBU,IV3);BU100,112,12#,13#,140,142,172,202,212,222,RZU140..(TR,V)..(175T,20T)..199703

main55175-37050iBU172..IV4;BU142,172..30T;BU142..T3..20T;BU102..T4..30T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU10#,132,147,162,182..(DM3,DM6,DM7,T3,T5,TW1)..WT;BU112,140,145,202,212,222199703

main55175-37050iBU212..30T;RZU100..LPGB199712

9010506109

main90105-06109

9017906019

main90179-06019

9017908146

main90179-08146

9017910065

main90179-10065

9046716002

main90467-16002

23 parts on this diagram · 1 diagram in section
