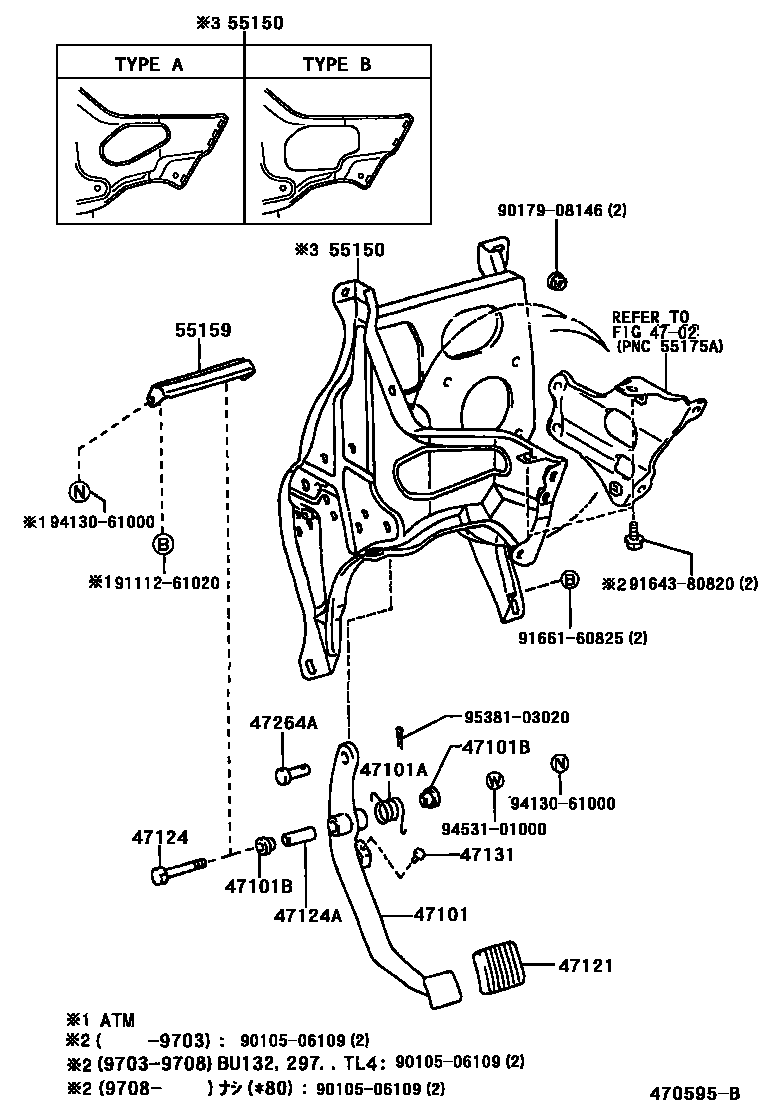

BRAKE PEDAL & BRACKET

4702

47101PEDAL SUB-ASSY, BRAKE

main47101-37040iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47121PAD, BRAKE PEDAL

main31321-14020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47124SHAFT, BRAKE PEDAL

main91112-61070iBU297199701-199905

main91121-51070iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

47264APIN(FOR PUSH ROD)

main90240-10015iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

55150BRACKET ASSY, PEDAL

main55150-37010iBU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130199505-199610

main55150-37020iBU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199610-200005

main55150-37030iBU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,XZU130199703-199708

main55150-37030iBU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199708-200005

55159STAY, PEDAL BRACKET

main55159-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

9010506109

main90105-06109

9017908146

main90179-08146

9111261020

main91112-61020

9164380820

main91643-80820

9166160825

main91661-60825

9413061000

main94130-61000

9453101000

main94531-01000

9538103020

main95381-03020

19 parts on this diagram · 1 diagram in section
