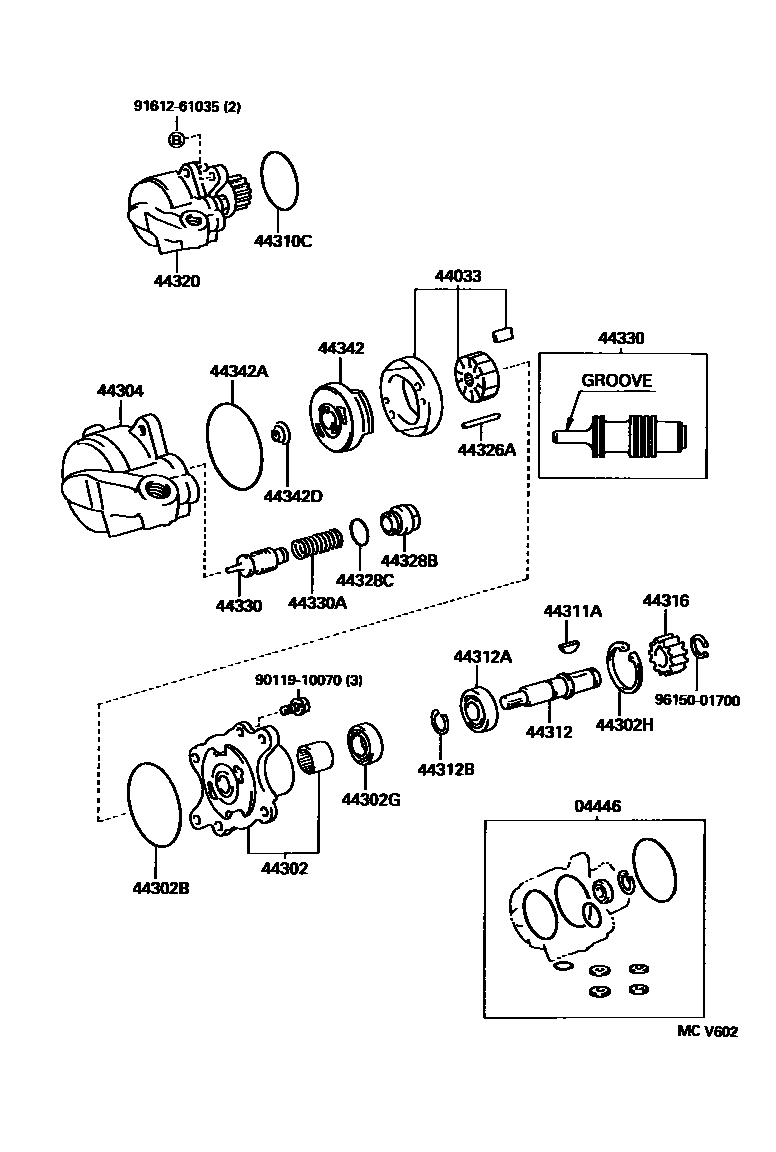

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1��(EGR �����X2 ���) 0004 1 0005 1 0006 1 0007 1 0008 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36081iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD199505

main04446-36110iRZU100,140..EFI,LPG199505

main04446-65010iBU297199701-199905

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36050iBU297199701-199905

main44033-36060iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36170iRZU100,140..EFI,LPG199505

main44302-36220iBU297199701-199905

main44302-36230iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD199505

main44302-89104iXZU130,140199510-199905

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

main90029-20043iBU297199701-199905

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36170iRZU100,140..EFI,LPG199505

main44304-36220iBU297199701-199905

main44304-36230iBU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100..DSL,LPGB,TD199505

main44304-36240iBU105,107,137,145,147199610-199905

main44304-89104iXZU130,140199510-199905

44310PUMP ASSY, VANE

main44310-65010iBU297199701-199905

44310CRING, O(FOR VANE PUMP)

main90301-60002iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD199505

44311PULLEY, VANE PUMP

main44311-36060iRZU100,140..EFI,LPG199505

44311AKEY, VANE PUMP PULLEY

main90029-18001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140199505

main90029-18002iXZU130,140199510-199905

44312SHAFT, VANE PUMP

main44312-36100iRZU100,140..EFI,LPG199505

main44312-36110iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD199505

main44312-36120iBU297199701-199905

main44312-89101iXZU130,140199510-199905

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD199505

main90029-36004iRZU100,140..EFI,LPG199505

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

44316GEAR, VANE PUMP

main44316-36020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100..DSL,LPGB,TD199505

main44316-89102iXZU130,140199510-199905

subS4435-11360

44320PUMP ASSY, VANE

main44310-37030iBU132..TL4199708-199905

main44310-37050iBU105,107,137,145,147199610-199905

main44310-37070iBU112..DMP;BU142..30T;BU102..T4..30T;BU142..T3..20T;BU140,RZU100..(DM6,T3,T4)..(DSL,LPGB);BU100,102,132..(DM2,DM3,DM6,T3,T5,TW1)..WT199505

main44310-37080iBU100,102..T3..ST;BU112,12#,172,182,202,212,222..TR,V;BU100,102,132,140,142,162..DM5,DM7,T1,T2,T4,TL4,TW2,TW4199505-199708

main44320-37020iRZU100,140..(DM5,T2,T3,T4,TW1,TW4)..20T199505

main44320-37030iRZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG)199505

main44320-89106iXZU130199510-199608

sub44320-89107

sub90031-05144

main44320-89107iXZU130,140199608-199905

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-24010iBU297199701-199905

main44347-89101iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

44328BEND, VANE PUMP HOUSING

main44328-89101iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main90029-20042iBU297199701-199905

main96711-19020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

44330VALVE ASSY, FLOW CONTROL

main44330-36021iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU112,XZU130..DMP;BU100,102,132..(DM2,DM3,DM6,T3,T5,TW1)..WT;BU140,RZU100,XZU140..(DM6,T3,T4)..(DSL,LPGB)199505

main44330-36030iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU112,XZU130..DMP;BU100,102,132..(DM2,DM3,DM6,T3,T5,TW1)..WT;BU140,RZU100,XZU140..(DM6,T3,T4)..(DSL,LPGB)199505

main44330-36040iBU142..30T;BU102..T4..30T;BU142..T3..20T;BU112,XZU130..DMP;BU100,102,132..(DM2,DM3,DM6,T3,T5,TW1)..WT;BU140,RZU100,XZU140..(DM6,T3,T4)..(DSL,LPGB)199505

main44330-36050iRZU100..TR..20T;BU100,102..T3..ST;BU112,12#,172,182,202,212,222..TR,V;BU100,102,132,140,142,162..DM5,DM7,T1,T2,T4,TL4,TW2,TW4199505-199708

main44330-36060iRZU100..TR..20T;BU100,102..T3..ST;BU112,12#,172,182,202,212,222..TR,V;BU100,102,132,140,142,162..DM5,DM7,T1,T2,T4,TL4,TW2,TW4199505-199708

main44330-36070iBU162,172,182,212;BU100,102..T3..ST;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU112,120,132,202,222,RZU140..(TR,V)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,2199505-199708

main44330-36080iRZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG)199505

main44330-36090iRZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG)199505

main44330-36100iRZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG)199505

main44330-36110iBU132..TL4199708-199905

main44330-36120iBU132..TL4199708-199905

main44330-36130iBU132..TL4199708-199905

main44330-36230iBU297199701-199905

main44330-36240iBU297199701-199905

main44330-36250iBU297199701-199905

main44330-36260iBU105,107,137,145,147199610-199905

main44330-36270iBU105,107,137,145,147199610-199905

main44330-36280iBU105,107,137,145,147199610-199905

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

44342PLATE, VANE PUMP SIDE, REAR

main44342-36050iBU297199701-199905

main44342-36060iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140199505

main44342-89103iXZU130,140199510-199905

subS4432-21300

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-55007iBU297199701-199905

main96711-24060iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60001iBU297199701-199905

main90029-60003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505

9011910070

main90119-10070

9161261035

main91612-61035

9615001700

main96150-01700

27 parts on this diagram · 8 diagrams in section
