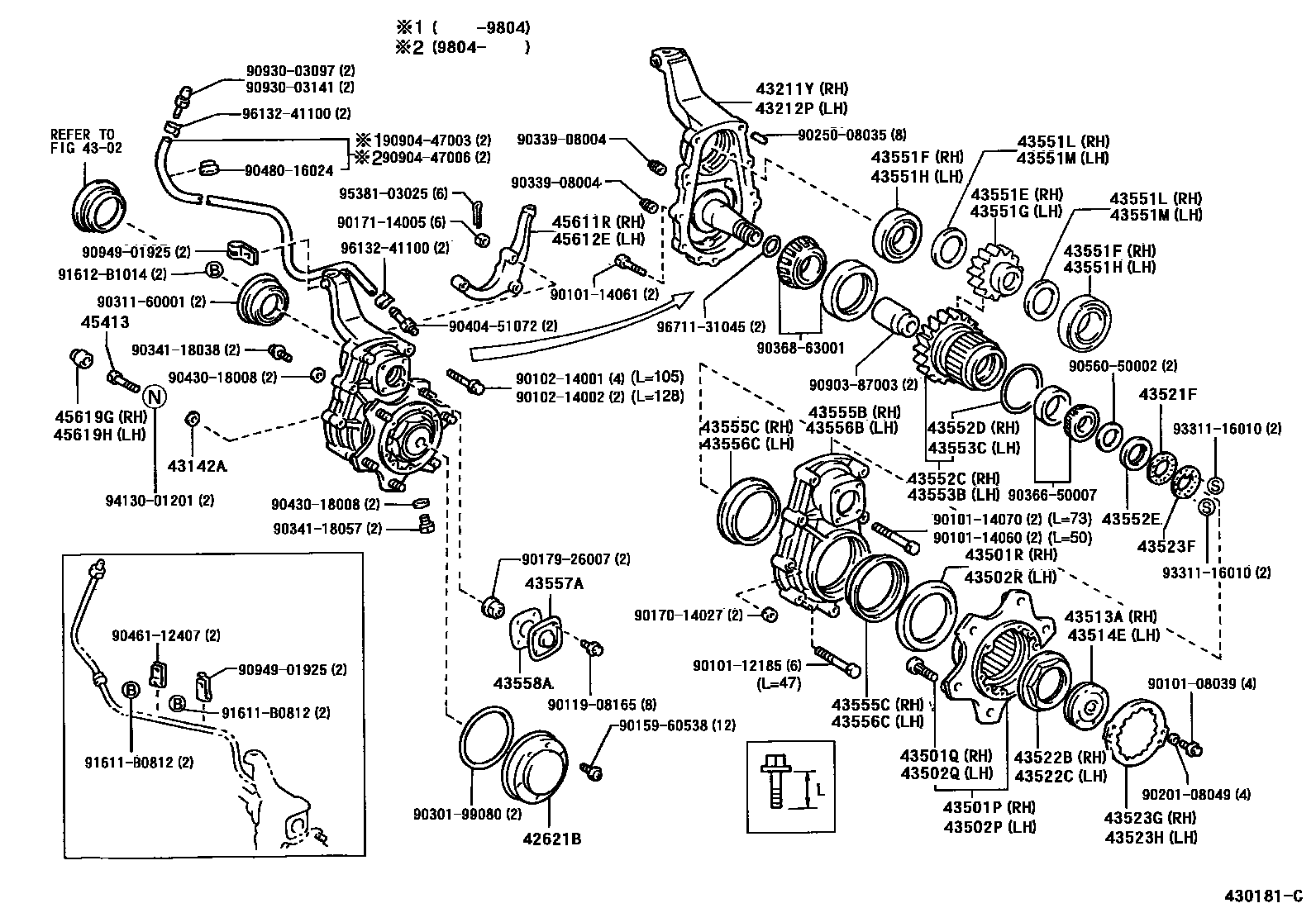

FRONT HUB REDUCTION

0001 1 0002 1

42621BCAP, WHEEL(FOR FRONT AXLE)

main42621-65010×2iBU297199701-199905

4302

43142ASEAT, STEERING KNUCKLE STOPPER

main43142-65010×2iBU297199701-199905

43211YKNUCKLE, FRONT STEERING, RH

main43211-65050iBU297199701-199905

43212PKNUCKLE, FRONT STEERING, LH

main43212-65050iBU297199701-199905

43501PHUB SUB-ASSY, FRONT AXLE, RH

main43501-65010iBU297199701-199905

43501QBOLT, HUB(FOR FRONT AXLE HUB RH)

main90942-02074×6iBU297199701-199905

43501RSEAL, DUST(FOR FRONT AXLE HUB RH)

main90304-99005iBU297199701-199905

43502PHUB SUB-ASSY, FRONT AXLE, LH

main43502-65010iBU297199701-199905

43502QBOLT, HUB(FOR FRONT AXLE HUB LH)

main90942-02075×6iBU297199701-199905

43502RSEAL, DUST(FOR FRONT AXLE HUB LH)

main90304-99005iBU297199701-199905

43513ACAP, WHEEL BEARING, RH(FOR FRONT AXLE RH)

main43513-65020iBU297199701-199905

43514ECAP, WHEEL BEARING, LH(FOR FRONT AXLE LH)

main43514-65020iBU297199701-199905

43521FNUT, FRONT AXLE BEARING LOCK

main43521-65010×2iBU297199701-199905

43522BNUT, HUB SET(FOR FRONT AXLE RH)

main43522-65010iBU297199701-199905

43522CNUT, HUB SET(FOR FRONT AXLE LH)

main43522-65020iBU297199701-199905

43523FWASHER, HUB SET CLAW(FOR FRONT AXLE)

main43523-65010×2iBU297199701-199905

43523GWASHER, HUB SET CLAW(FOR FRONT AXLE RH)

main43523-65020iBU297199701-199905

43523HWASHER, HUB SET CLAW(FOR FRONT AXLE LH)

main43523-65020iBU297199701-199905

43551EGEAR, FRONT HUB REDUCTION DRIVE, RH

main43551-65020iBU297199701-199905

43551FBEARING, ROLLER(FOR FRONT HUB REDUCTION RH)

main90366-55051×2iBU297199701-199905

43551GGEAR, FRONT HUB REDUCTION DRIVE, LH

main43551-65030iBU297199701-199905

43551HBEARING, ROLLER(FOR FRONT HUB REDUCTION LH)

main90366-55051×2iBU297199701-199905

43551LSHIM(FOR FRONT HUB REDUCTION DRIVE GEAR RH)

main43524-65010iBU297199701-199905

main43524-65020iBU297199701-199905

main43524-65030iBU297199701-199905

main43524-65040iBU297199701-199905

main43524-65050iBU297199701-199905

43551MSHIM(FOR FRONT HUB REDUCTION DRIVE GEAR LH)

main43524-65010iBU297199701-199905

main43524-65020iBU297199701-199905

main43524-65030iBU297199701-199905

main43524-65040iBU297199701-199905

main43524-65050iBU297199701-199905

43552CGEAR, FRONT HUB REDUCTION DRIVEN, RH

main43552-65020iBU297199701-199905

43552DRING, O(FOR FRONT HUB REDUCTION DRIVEN GEAR RH)

main90301-94003iBU297199701-199905

43552ESEAL, OIL(FOR FRONT HUB REDUCTION DRIVEN GEAR)

main90311-75010×2iBU297199701-199905

43553BGEAR, FRONT HUB REDUCTION DRIVEN, LH

main43553-65020iBU297199701-199905

43553CRING, O(FOR FRONT HUB REDUCTION DRIVEN GEAR LH)

main90301-94003iBU297199701-199905

43555BCOVER, FRONT HUB REDUCTION GEAR, RH

main43555-65020iBU297199701-199905

43555CSEAL, OIL(FOR FRONT HUB REDUCTION GEAR COVER RH)

main90311-99007iBU297199701-199905

main90311-99008iBU297199701-199905

43556BCOVER, FRONT HUB REDUCTION GEAR, LH

main43556-65020iBU297199701-199905

43556CSEAL, OIL(FOR FRONT HUB REDUCTION GEAR COVER LH)

main90311-99007iBU297199701-199905

main90311-99008iBU297199701-199905

43557ACOVER, FRONT HUB REDUCTION DRIVE SHAFT

main42104-65010iBU297199802-199905

main42104-65020iBU297199802-199905

main43557-65010×2iBU297199701-199802

43558AGASKET, FRONT HUB REDUCTION DRIVE SHAFT END

main43558-65010×2iBU297199701-199905

45413STOPPER, PITMAN ARM

main45413-65010×2iBU297199701-199905

45611RARM, FRONT STEERING KNUCKLE, RH

main45611-65020iBU297199701-199905

45612EARM, STEERING KNUCKLE, FRONT LH

main45612-65020iBU297199701-199905

45619GCOVER, KNUCKLE STOPPER, FRONT RH

main45619-36010iBU297199701-199905

45619HCOVER, KNUCKLE STOPPER, FRONT LH

main45619-36010iBU297199701-199905

9010108039

main90101-08039

9010112185

main90101-12185

9010114060

main90101-14060

9010114061

main90101-14061

9010114070

main90101-14070

9010214001

main90102-14001

9010214002

main90102-14002

9011908165

main90119-08165

9015960538

main90159-60538

9017014027

main90170-14027

9017114005

main90171-14005

9017926007

main90179-26007

9020108049

main90201-08049

9025008035

main90250-08035

9030199080

main90301-99080

9031160001

main90311-60001

9033908004

main90339-08004

9034118038

main90341-18038

9034118057

main90341-18057

9036650007

main90366-50007

9036863001

main90368-63001

9040451072

main90404-51072

9043018008

main90430-18008

9046112407

main90461-12407

9048016024

main90480-16024

9056050002

main90560-50002

9090387003

main90903-87003

9090447003

main90904-47003

9090447006

main90904-47006

9093003097

main90930-03097

9093003141

main90930-03141

9094901925

main90949-01925

91611B0812

main91611-B0812

91612B1014

main91612-B1014

9331116010

main93311-16010

9413001201

main94130-01201

9538103025

main95381-03025

9613241100

main96132-41100

9671131045

main96711-31045

80 parts on this diagram · 2 diagrams in section
