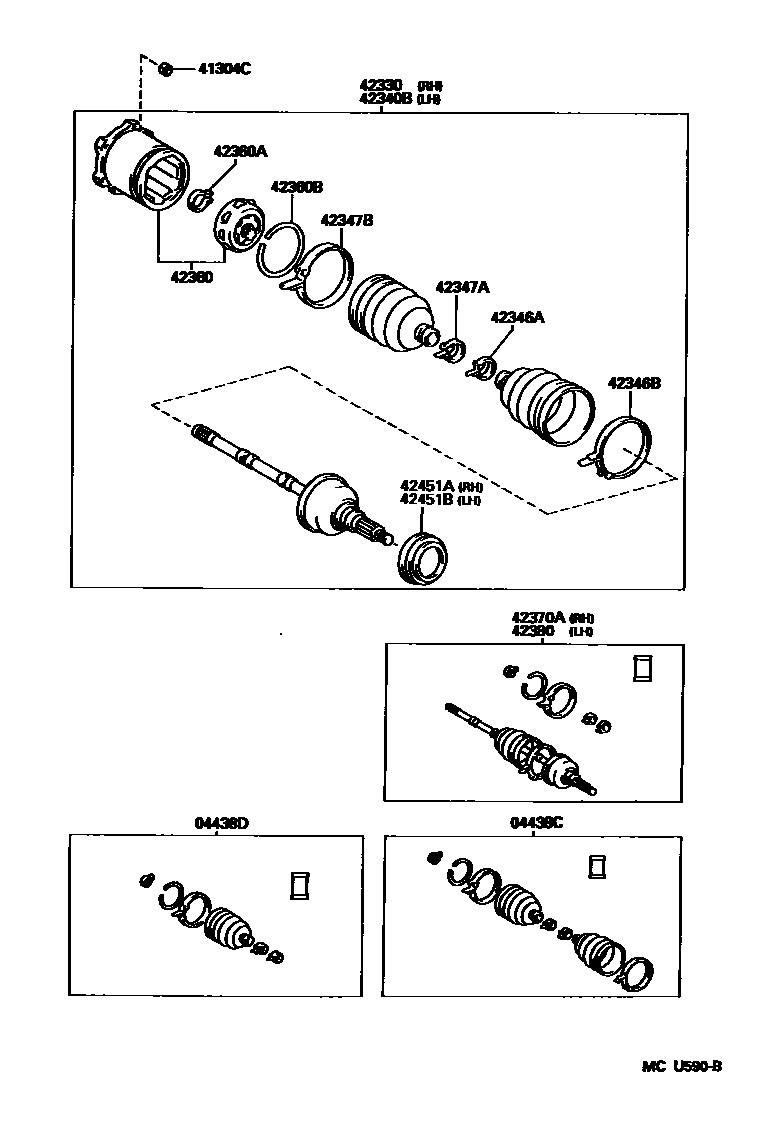

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04438-65020iBU297199701-199905

sub04438-65021

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04438-65010iBU297199701-199905

sub04438-65011

41304CNUT (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90179-10072iBU297199701-199905

42330SHAFT ASSY, REAR DRIVE, RH

main43430-65010iBU297199701-199905

sub43430-65011

42340BSHAFT ASSY, REAR DRIVE, LH

main43430-65010iBU297199701-199905

sub43430-65011

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90460-42004iBU297199701-199905

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90460-99004iBU297199701-199905

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90460-42004iBU297199701-199905

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90460-99002iBU297199701-199905

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main43403-65010iBU297199701-199905

42360ARING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)

main90520-32010iBU297199701-199905

42360BRING, SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)

main90521-99053iBU297199701-199905

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main43460-69015iBU297199701-199905

sub43460-69016

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main43460-69015iBU297199701-199905

sub43460-69016

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main90304-76003iBU297199701-199905

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main90304-76003iBU297199701-199905

16 parts on this diagram · 4 diagrams in section
