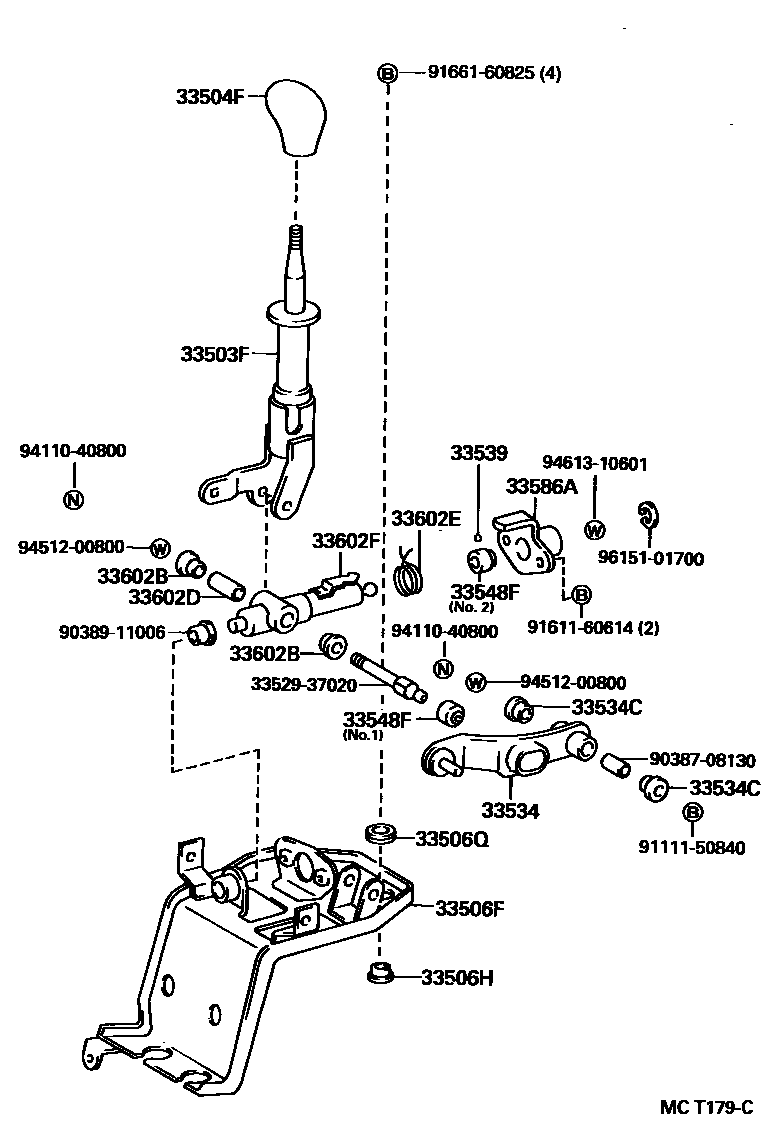

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1�����-� P.T.O 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1�����-� P.T.O 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1 0029 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-37010iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..MTM199505

main33055-37020iBU162,172,182199505

main33503-37020iBU102,107,112,13#,142,147,212,297..4FC199505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-B0iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505-200005

GRAY,TRIM1#

sub33504-36051

main33504-36070-B0iBU102,107,112,13#,142,147,212,297..4FC199505-199906

GRAY,TRIM1#

sub33504-36070

main33504-36080-B0iBU142,212,222..6F199708-199906

BLUISH GRAY,TRIM1#

sub33504-36080

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

main33570-37010iBU102,107,112,13#,142,147,212,297..4FC199505

33506HBUSH (FOR SHIFT LEVER RETAINER)

main90386-12056iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-19008iBU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140199505

33534BELLCRANK, SELECTING

main33534-37030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-13007iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

main33548-12040iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03034iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

3352937020BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-37020

9038708130

main90387-08130

9038911006

main90389-11006

9111150840

main91111-50840

9161160614

main91611-60614

9166160825

main91661-60825

9411040800

main94110-40800

9451200800

main94512-00800

9461310601

main94613-10601

9615101700

main96151-01700

24 parts on this diagram · 27 diagrams in section
