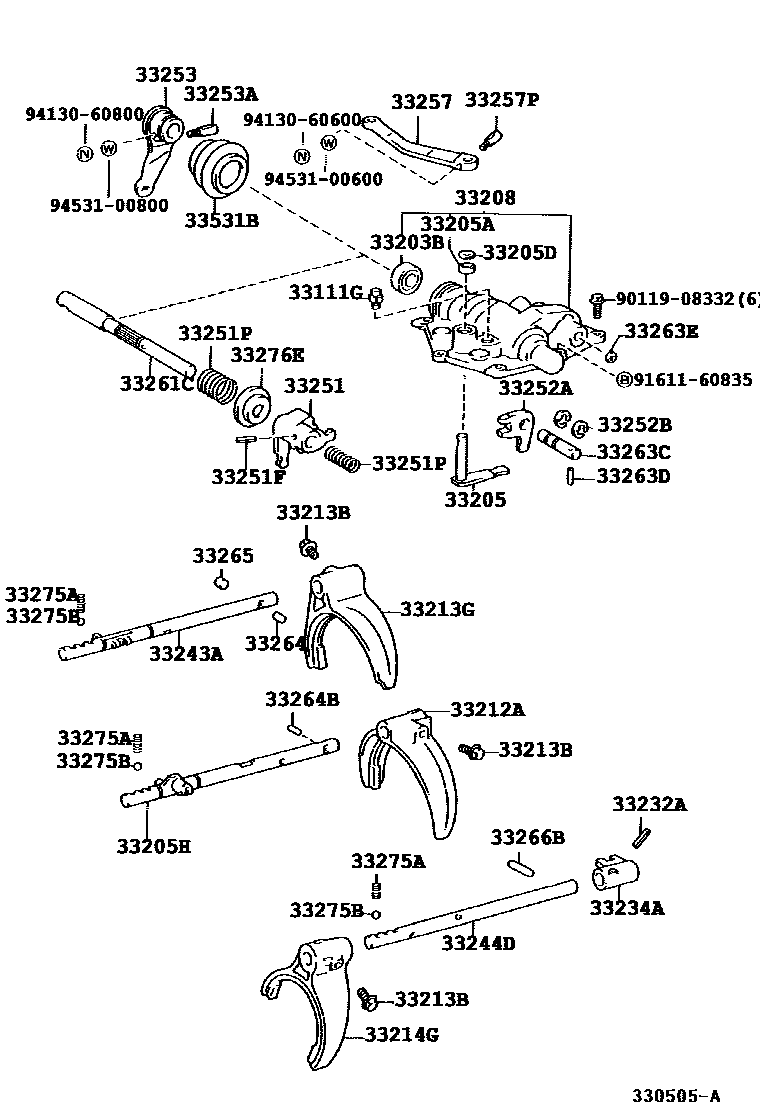

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1M153,M155 0002 1M153F 0003 1H260

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03090iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..MTM¥470199505

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM¥190199505

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-36050iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥1,740199505

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-13001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM¥180199505

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM¥110199505

33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1

main33205-37030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥3,760199505

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-36031iBU102,142,RZU100,140..EFI,LPG,LPGB¥9,700199505

main33207-36041iBU100,105,120,140,145¥9,400199505-199906

main33207-36051iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,XZU130,140..(DSL,TD)..5F¥14,800199505-199906

main33207-37010iBU142,212,222..6F¥16,000199708-199811

sub33207-37011¥16,000

main33207-37011iBU142,212,222..6F¥16,000199811-199906

33212AFORK, GEAR SHIFT, NO.1

main33212-36031iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥3,450199505

main33212-60050iBU142,212,222..6F¥3,090199708-199906

33213BBOLT(FOR SHIFT FORK SET)

main90105-07001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥90199505

main90105-08211iBU142,212,222..6F¥90199708-199906

33213GFORK, GEAR SHIFT, NO.2

main33213-36041iRZU100,140..EFI,LPG¥3,640199505

main33213-36050iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F¥2,660199505

main33213-60060iBU142,212,222..6F¥3,790199708-199906

33214GFORK, GEAR SHIFT, NO.3

main33214-36060iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥3,110199505

main33214-60041iBU142,212,222..6F¥6,800199708-199801

main33230-60010iBU142,212,222..6F199801-199803

sub33230-60011¥3,150

main33230-60011iBU142,212,222..6F¥3,150199803-199906

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05016iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥140199505

33234AHEAD, GEAR SHIFT, NO.3

main33234-36011iBU172..CBU,IV3;BU10#,112,12#,13#,14#,162,182,202,212,222,RZU100,140,XZU130,140..5F¥930199505

main33234-37010iBU172..IV4¥1,260199507-199905

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-37010iRZU100,140..EFI,LPG¥3,460199505

main33243-37020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F¥3,460199505

main33243-37030iBU142,212,222..6F¥5,500199708-199811

sub33243-37031¥5,500

main33243-37031iBU142,212,222..6F¥5,500199811-199906

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-37020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥2,240199505

33251LEVER, SHIFT & SELECT

main33251-36090iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥3,760199505

main33251-37030iBU142,212,222..6F¥10,900199708-199906

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main90254-05016iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM¥140199505

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-16090iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥130199505

main90501-18059iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥160199505

33252ALEVER, SHIFT, INNER NO.2

main33252-36010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥930199505

33252BRING, E (FOR SHIFT INNER LEVER)

main90523-12001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥120199505

33253LEVER, SHIFT OUTER, NO.1

main33253-37010iBU172,182..T4;BU102,107..(DM6,T2,T3,T4,TW1)..WT..20T..DSL..(IV3,IV4)..5F¥1,960199610-199906

main33253-37010iBU10#,12#,132,14#,162,172,182,202,212,222..5F¥1,960199505-199610

main33253-37020iBU112,RZU100,140..(DSL,EFI,LPG)..5F¥1,960199505

main33253-37030iXZU130,140¥1,530199510-199905

main33253-37040iBU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F¥2,350199610

main33253-37050iBU142,212,222..6F¥2,100199708-199906

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM¥410199505

33257LEVER, SELECT OUTER

main33257-37030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥1,020199505

main33257-37040iBU142,212,222..6F¥1,260199708-199905

main33257-37070iBU142,212..6F¥1,260199905-199906

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM¥160199505

33261CSHAFT, SHIFT & SELECT LEVER

main33261-36070iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥2,560199505

33263CSHAFT, SHIFT LEVER, NO.2

main33263-36010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥1,580199505

33263DPIN (FOR SHIFT LEVER SHAFT)

main90250-04060iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥80199505

33263EPLUG (FOR SHIFT LEVER SHAFT)

main90331-14004iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥370199505

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥100199505

main90250-10023iBU142,212,222..6F¥80199708-199906

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-05001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥220199505

main90361-10003iBU142,212,222..6F¥130199708-199906

33265PIN, SHIFT INTERLOCK, NO.2

main90250-10015iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥100199505

main90250-10024iBU142,212,222..6F¥190199708-199906

33266BPIN, SHIFT INTERLOCK, NO.3

main90250-10014iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥130199505

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14155iBU142,212,222..6F¥70199708-199906

main90501-16145iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥90199505

33275BBALL, SHAFT DETENT

main90360-10003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥100199505

33276ESEAT, SELECT SPRING, NO.1

main33276-36011iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥410199505

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-36060iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F¥480199505

main33531-37020iBU142,212,222..6F¥1,050199708-199906

9011908332

main90119-08332¥370

9161160835

main91611-60835¥90

9413060600

main94130-60600¥80

9413060800

main94130-60800¥60

9453100600

main94531-00600¥120

9453100800

main94531-00800¥160

42 parts on this diagram · 3 diagrams in section
