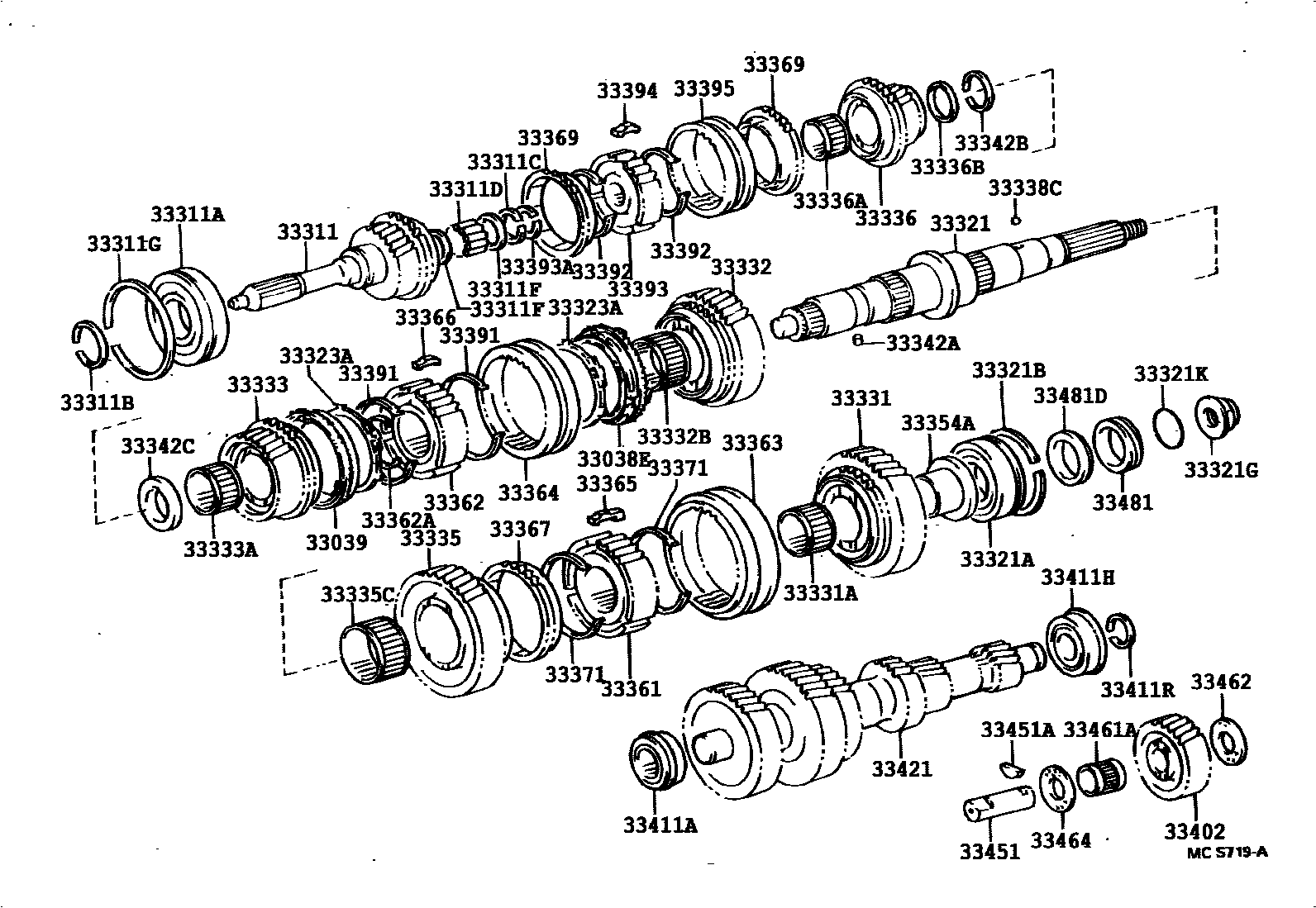

TRANSMISSION GEAR (MTM)

0001 1M150,M153,M155 0002 1M153 0003 1H260 0004 1H260 0005 1M153

33038ERING SET, SYNCHRONIZER, NO.2

main33038-36010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F199505

main33038-37010iBU142,212,222..6F199708-199809

main33038-37011iBU142,212,222..6F199809-199906

33039RING SET, SYNCHRONIZER, NO.3

main33039-36010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F199505

main33039-37010iBU142,212,222..6F199708-199906

33311SHAFT, INPUT

main33301-37050iBU172,182,RZU100..DSL,EFI,LPG;BU10#,112,12#,13#,14#,162,202,212,222,RZU140..(175T,20T)..(DSL,EFI)..5F199505

main33301-37060iBU102,112,132,142..(275T,30T)..DSL..5F199505-199905

main33301-37070iBU102,142,212,222,RZU100..(LPGB,TD)..5F199505

main33301-37090iXZU130,140199510-199905

main33301-37130iBU142,212,222..6F199708-199807

main33301-37131iBU142,212,222..6F199807-199906

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-45010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90363-50007iBU142,212,222..6F199708-199906

sub90363-50012

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-42002iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-42003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-42004iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-42005iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-42006iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-42007iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-99010iBU142,212,222..6F199708-199906

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main96151-04500iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33311DBEARING, INPUT SHAFT

main90361-08004×12iBU142,212,222..6F199708-199906

main90361-09002×12iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33311FSPACER (FOR INPUT SHAFT)

main90560-38004×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-96001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33321SHAFT, OUTPUT

main33321-37030iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505

main33321-37040iBU162,172,182199505-199906

main33321-37050iBU142,212,222..6F199708-199905

main33321-37070iBU142,212..6F199905-199906

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-35043iBU142,212,222..6F199708-199905

main90363-38007iBU142,212..6F199905-199906

main90363-40034iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-88001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-22008iBU142,212,222..6F199708-199905

main90179-24008iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505-199905

33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)

main90301-29002iBU142,212,222..6F199708-199905

main90301-31003iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505-199905

33323ASPACER, SYNCHRONIZER RING

main33323-36010×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F199505

33331GEAR, REVERSE

main33031-37020iBU142,212,222..6F199708-199905

main33331-37030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33331-37060iBU142,212..6F199905-199906

33331ABEARING (FOR REVERSE GEAR)

main90364-38018iBU142,212,222..6F199708-199905

main90364-47008iBU142,212..6F199905-199906

main90364-54004iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33332GEAR, 2ND

main33033-36080iRZU100,140..EFI,LPG199505

main33033-36090iBU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL..5F199505-199906

main33033-36100iXZU130,140;BU102,142,212,222,RZU100..(LPGB,TD)..5F199505

main33033-37020iBU142,212,222..6F199708-199906

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-54003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90364-58006iBU142,212,222..6F199708-199906

33333GEAR, 3RD

main33034-36090iBU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL..5F199505-199906

main33034-36100iXZU130,140;BU102,142,212,222,RZU100..(LPGB,TD)..5F199505

main33034-37010iRZU100,140..EFI,LPG199505

main33034-37020iBU142,212,222..6F199708-199906

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-38017iBU142,212,222..6F199708-199906

main90364-47007iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33335GEAR, 1ST

main33032-37010iBU142,212,222..6F199708-199801

main33335-37040iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..(DSL,EFI,LPG)..5F199505

main33335-37050iXZU130,140;BU102,142,212,222,RZU100..(LPGB,TD)..5F199505

main33335-37070iBU142,212,222..6F199801-199905

main33335-37090iBU142,212..6F199905-199906

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-50002iBU142,212,222..6F199708-199906

main90364-58005iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33336GEAR, 5TH

main33036-37010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..(DSL,EFI,LPG)..5F199505

main33036-37020iXZU130,140;BU102,142,212,222,RZU100..(LPGB,TD)..5F199505

main33036-37030iBU142,212,222..6F199708-199906

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-37012iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90364-46005iBU142,212,222..6F199708-199906

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-37003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33338CBALL, REVERSE SHIFT RESTRICT

main90360-06004iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)

main90250-04056iBU10#,142,162,182,RZU100,140..5F199905

main90360-06004iBU142,212..6F199905-199906

33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)

main90520-34010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-34011iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-34012iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-34015iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-34016iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33342CWASHER, 3RD GEAR THRUST

main33342-36021iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33354ARACE, REVERSE GEAR BEARING, INNER

main33354-36010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33354-37010iBU142,212..6F199905-199906

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-36030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33361-37020iBU142,212,222..6F199708-199905

main33361-37040iBU142,212..6F199905-199906

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-36040iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F199505

main33362-36050iRZU100,140..EFI,LPG199505

main33362-37020iBU142,212,222..6F199708-199906

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-28054iBU142,212,222..6F199708-199906

main90520-28055iBU142,212,222..6F199708-199906

main90520-28056iBU142,212,222..6F199708-199906

main90520-28057iBU142,212,222..6F199708-199906

main90520-28058iBU142,212,222..6F199708-199906

main90520-28059iBU142,212,222..6F199708-199906

main90520-43002iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-43003iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-43004iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-43005iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-43006iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-43007iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-37020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33363-60051iBU142,212,222..6F199708-199906

sub33363-60052

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-36061iRZU100,140..EFI,LPG199505

main33364-36080iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F199505

main33364-37020iBU142,212,222..6F199708-199906

sub33364-37021

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-36030×3iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33365-60010×3iBU142,212,222..6F199708-199906

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-36032×3iRZU100,140..EFI,LPG199505

main33366-36040×3iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F199505

main33366-37030×3iBU142,212,222..6F199708-199906

33367RING, SYNCHRONIZER, NO.1

main33367-36050iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33369RING, SYNCHRONIZER, NO.3

main33369-36010×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33369-60010iBU142,212,222..6F199708-199906

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-36030×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33371-60010×2iBU142,212,222..6F199708-199906

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-36030×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130,140..(DSL,LPGB,TD)..5F199505

main33371-37030×2iBU142,212..6F199905-199906

main33391-36021×2iRZU100,140..EFI,LPG199505

main33391-60010×2iBU142,212,222..6F199708-199905

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33392-36010×2iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33392-60010×2iBU142,212,222..6F199708-199906

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-36060iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33393-37010iBU142,212,222..6F199708-199906

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-28054iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-28055iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-28056iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-28057iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-28058iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-28059iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-34018iBU142,212,222..6F199708-199905

main90520-34019iBU142,212,222..6F199708-199905

main90520-34020iBU142,212,222..6F199708-199905

main90520-34021iBU142,212,222..6F199708-199905

main90520-34022iBU142,212,222..6F199708-199905

main90520-34023iBU142,212,222..6F199708-199905

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-36020×3iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33394-60010×3iBU142,212,222..6F199708-199906

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-36030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33395-60020iBU142,212,222..6F199708-199801

main33395-60040iBU142,212,222..6F199801-199906

33402GEAR SUB-ASSY, REVERSE IDLER

main33461-36090iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..(DSL,EFI,LPG)..5F199505

main33461-36100iXZU130,140;BU102,142,212,222,RZU100..(LPGB,TD)..5F199505

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-30030iBU142,212,222..6F199708-199906

main90365-37006iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-30049iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90520-26030iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-26031iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-26032iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-26033iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-26034iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-26035iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main90520-29032iBU142,212,222..6F199708-199906

main90520-29033iBU142,212,222..6F199708-199906

main90520-29034iBU142,212,222..6F199708-199906

main90520-29035iBU142,212,222..6F199708-199906

main90520-29036iBU142,212,222..6F199708-199906

main90520-29037iBU142,212,222..6F199708-199906

main90520-29038iBU142,212,222..6F199708-199906

main90521-22003iBU142,212,222..6F199708-199906

33421GEAR, COUNTER

main33421-37040iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..(DSL,EFI,LPG)..5F199505

main33421-37050iXZU130,140;BU102,142,212,222,RZU100..(LPGB,TD)..5F199505

main33421-37060iBU142,212,222..6F199708-199807

main33421-37061iBU142,212,222..6F199807-199905

main33421-37080iBU142,212..6F199905-199906

33451SHAFT, REVERSE IDLER GEAR

main33451-36050iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

main33451-37020iBU142,212,222..6F199708-199906

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03002iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505

33461GEAR, REVERSE IDLER

main33461-37030iBU142,212,222..6F199708-199906

33461ABEARING, REVERSE IDLER GEAR

main90364-28018iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33462WASHER, REVERSE IDLER THRUST

main33462-60020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33464WASHER, REVERSE IDLER THRUST, NO.2

main33464-60010iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F199505

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-36150iBU140..T2..IV3199505-199905

main33481-36160iBU142..LPGB199605-199905

main33481-36170iRZU100..(DM6,T3,TW1)..20T..EFI199505

main33481-37030iBU142,212..30T..6F199708-199906

main33481-37040iBU212,222..20T..6F199708-199906

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-36070iBU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F199505

main33487-37010iBU142,212,222..6F199708-199807

main33487-37011iBU142,212,222..6F199807-199905

main33487-37020iBU142,212..6F199905-199906

60 parts on this diagram · 5 diagrams in section
