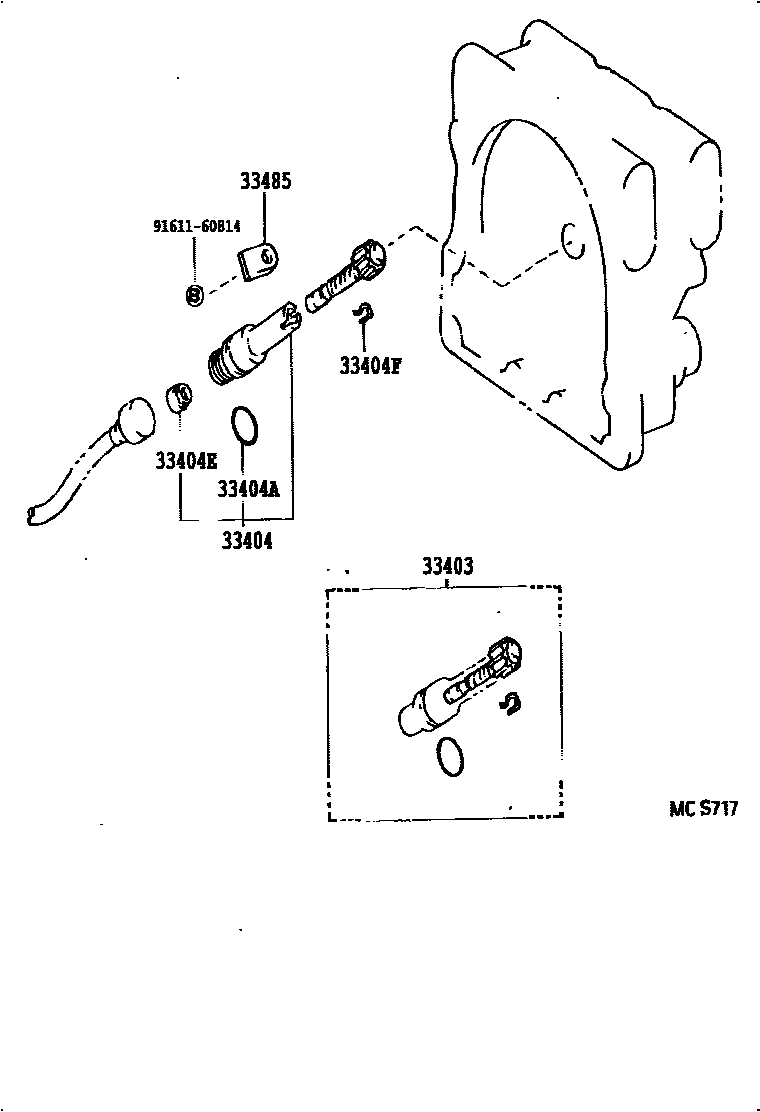

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39205iBU102,122..ST;BU107,137,147..(T4,TW4)..5F199505-199905

main33482-39215iBU142..T2..IV3199505-199906

main33482-39225iBU140..T2..IV3199505-199905

main33482-39235iBU142..LPGB199605-199905

main33482-39245iBU100,140..T3..WT199505-199905

main33482-39255iBU112..30T..5F;RZU100..(DM6,T3,TW1)..20T..EFI199505-200005

main33482-39265iRZU100..(T3,TW1)..20T199505-200005

main33482-39275iRZU100..30T..EFI199505-200005

main33482-39365iRZU100..30T..LPG199505-200005

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505-200005

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505-200005

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505-200005

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505-200005

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM199505-200005

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
