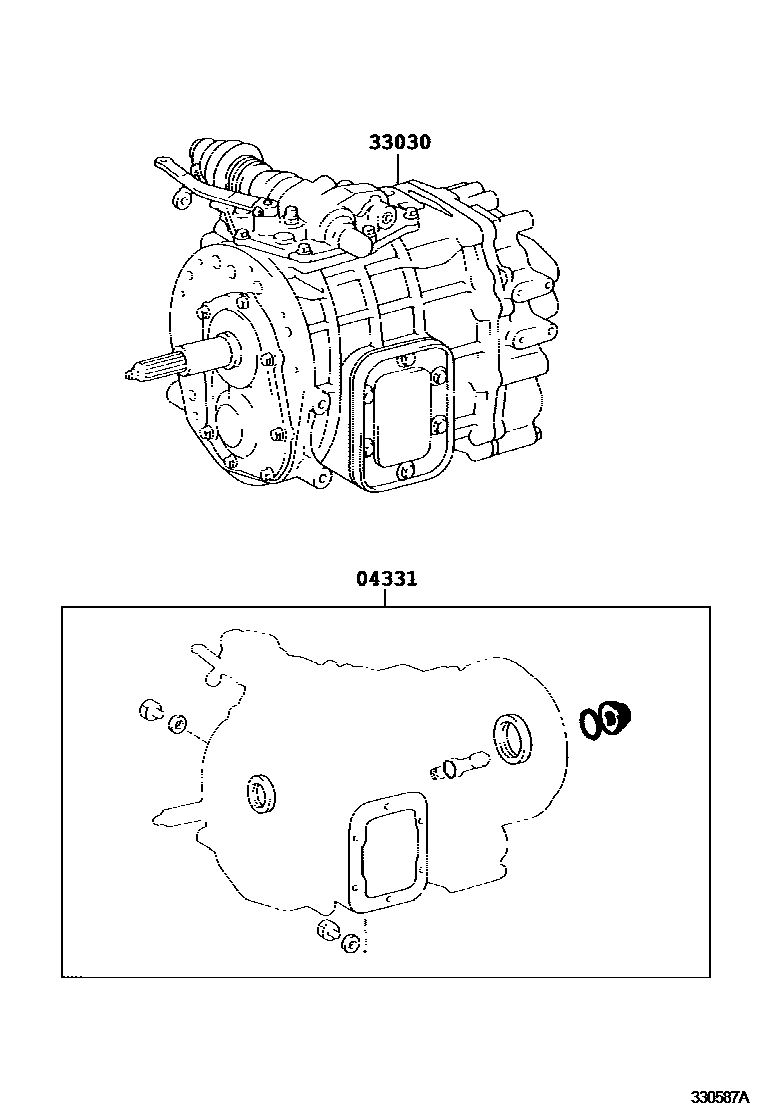

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1M150,M153,M155 0003 1M153 0004 1H260

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36071iRZU100..EFI,LPG;BU10#,112,12#,13#,14#,202,212,222,RZU140..(175T,20T)..(DSL,EFI)..5F199505

main04331-36090iRZU100,XZU130,140..DSL,LPGB;BU102,112,132,142..(275T,30T)..5F;BU102,212,222..20T..(LPGB,TD)..5F199505

main04331-36100iBU142,212,222..6F199708-199906

main04331-36110iBU162,172,182199505-199906

33030TRANSMISSION UNIT ASSY, MANUAL

main33110-37170iXZU130,140199510-199905

main33110-37270iRZU100..T4..LPG;RZU100,140..20T..EFI199505

main33110-37280iRZU100..(DM6,T3,TW1)..20T..EFI199505

main33110-37310iBU140..T2..IV3199505-199610

main33110-37311iBU100,120..ST;BU140,145..T2..IV3199610-199905

main33110-37320iBU102..(DM3,T2,T3,T4,TW4)..20T..5F;BU122,132,142,202,212,222..20T..DSL..5F199505-199610

main33110-37320iBU107..(T2,T4)..IV3..5F;BU102..TR..03S..WT..20T..5F199610-199906

main33110-37340iBU100,140..WT199505-199610

main33110-37341iBU100,105,140,145..WT199610-199906

main33110-37350iBU102,132,142..(275T,30T)..DSL..5F199505-199610

main33110-37351iBU102,132,142..(275T,30T)..DSL..5F199610-199905

main33110-37370iBU102..DM2,DM5,DM6,TW1199505-199610

main33110-37370iBU102..T3..WT..20T199610-199906

main33110-37370iBU107..T3..IV3;BU102..(DM6,TW1)..DSL199610-199905

main33110-37380iBU112..T3..5F199505-199905

main33110-37390iBU112..T3..5F199505-199905

main33110-37400iBU162,172,182..02S,03S199505-199906

main33110-37410iBU162,172,182..TR..(CBU,IV3)199505-199906

main33110-37420iBU172..IV4199507-199905

main33110-37430iBU212,222..TD199505-199610

main33110-37440iBU212,222..TD199505-199610

main33110-37520iBU142..LPGB199605-199610

main33110-37521iBU102,142,RZU100..(DM6,T3)..LPGB199610

main33110-37530iBU142..LPGB199605-199610

main33110-37531iBU142..LPGB199610-199905

main33110-37531iBU102,RZU100..(DM6,T4)..LPGB199708

main33110-37540iBU107,147..(T2,T4,TW4)..5F;BU102..(DM3,T2,T3,T4,TW4)..20T..5F;BU122,13#,142,202,212,222..20T..DSL..5F199610-199906

main33110-37550iBU102,142..T3..WT..20T..5F199610-199906

main33110-37550iBU107,147..T3..5F;BU102..(DM2,DM5,DM6)..DSL199610-199905

main33110-37560iBU112..30T..5F199610-199905

main33110-37570iBU212,222..TD199610-199708

main33110-37580iBU212,222..TD199610-199708

2 parts on this diagram · 3 diagrams in section
