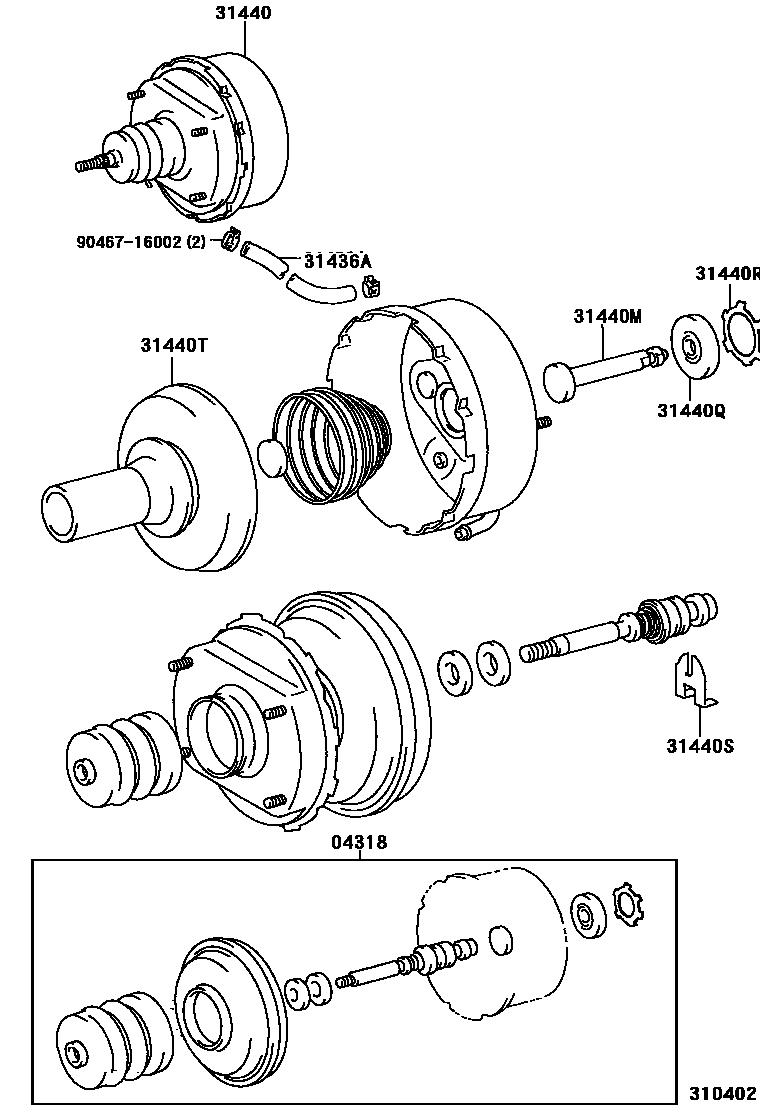

CLUTCH BOOSTER

04318BOOSTER KIT, CLUTCH

main04318-36040iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

31436AHOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)

main31436-37010iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-37020iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON

main44606-12520iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

31440QGASKET, BRAKE BOOSTER BRACKET

main44621-28120iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)

main44628-28120iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-36010iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-10070iBU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,XZU130,140..MTM..(DSL,LPGB,TD)199505

9046716002

main90467-16002

9 parts on this diagram · 1 diagram in section
