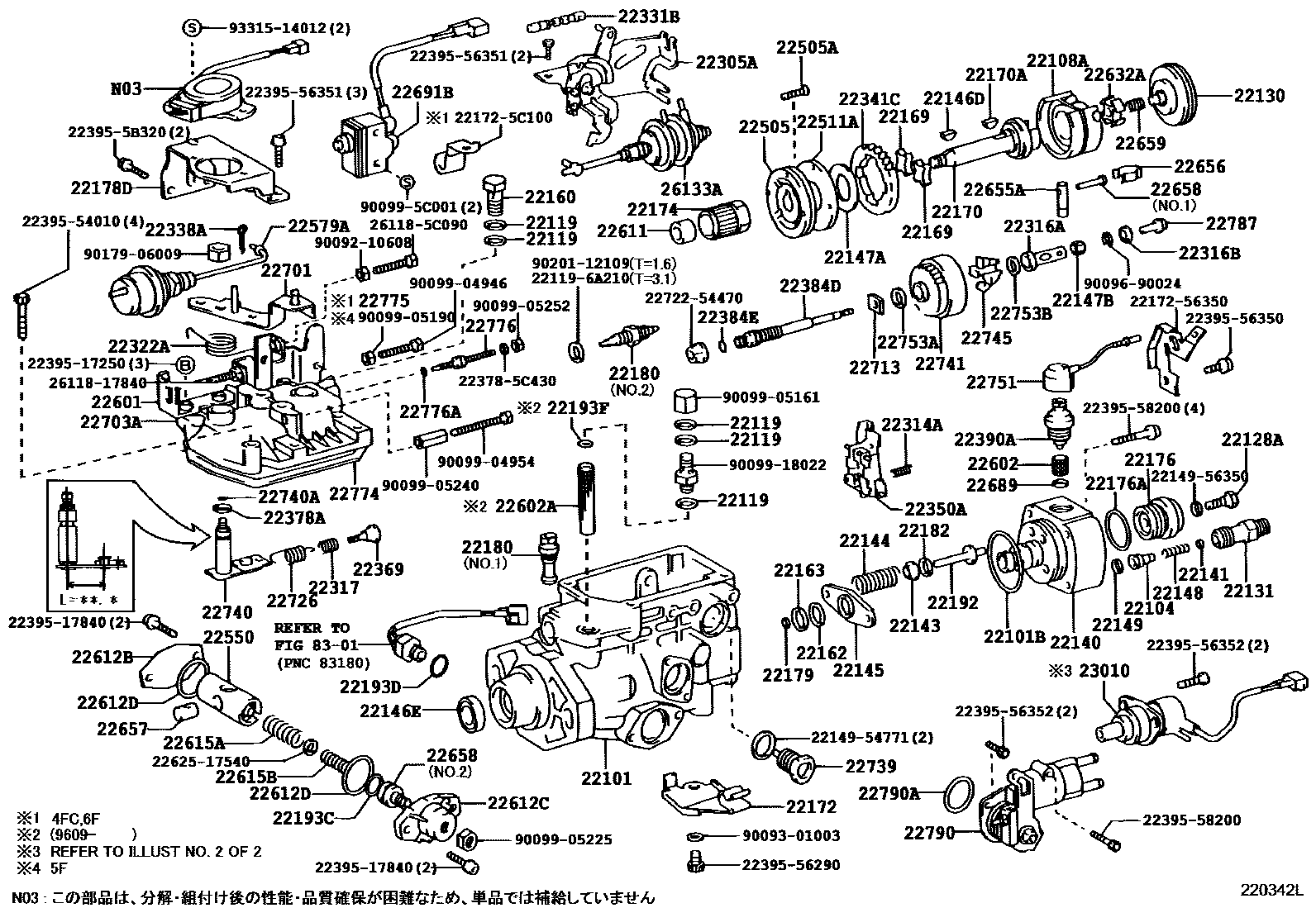

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-17840i15BFT..BU212,222,297199505-199905

main22101-54770i3B..BU100,120,140199505-199610

main22101-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

main22101-64270i3B..BU100,105,120,140,145199610

main22101-89101iJ05C..XZU130,140199510-199905

subS2210-13540

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-17010×4i3B..BU100,105,120,140,145199505

main22104-17840×4i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22104-89101×4iJ05C..XZU130,140199510-199905

subS2210-32380

22108ARING SUB-ASSY, ROLLER

main22108-54010i3B..BU100,120,140199505-199610

main22108-54180i3B..BU100,105,120,140,145199610

main22108-5C090i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

22119WASHER, AIR BLEEDER NIPPLE

main22149-54800i15BFT..BU212,222199704-199905

main90201-12109×5i15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222199505-199906

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i3B..BU100,105,120,140,145199505

main22128-56330i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

22130CAMPLATE SUB-ASSY, FACE

main22130-5C090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22130-5C150i3B..BU100,105,120,140,145199505

22131HOLDER, DELIVERY VALVE

main22131-17420×4i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22131-54730×4i3B..BU100,105,120,140,145199505

main22131-89101×4iJ05C..XZU130,140199510-199905

subS2211-61200

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-5C090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22140-5C150i3B..BU100,120,140199505-199610

main22140-5C400i3B..BU100,105,120,140,145199610

22141SEAT, DELIVERY VALVE SPRING

main22141-54010×4i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22143SEAT, SPRING UPPER

main22143-54010×2i3B..BU100,105,120,140,145199505

main22143-56350×2i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22143-78150×4iJ05C..XZU130,140199510-199905

subS2211-91190

22144SPRING, PUMP PLUNGER

main22144-17840×2i15BFT..BU297;15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199804-199809

main22144-54190×2i3B..BU100,105,120,140,145199505-199906

main22144-5C090×2i15BFT..BU212,222199804-199809

main22144-78150×4iJ05C..XZU130,140199510-199905

subS2212-11430

22145SEAT, SPRING, LOWER

main22145-54010i3B..BU100,105,120,140,145199505

main22145-56350i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22145-89101×4iJ05C..XZU130,140199510-199905

subS2212-21170

22146CAMSHAFT, INJECTION PUMP

main22146-89101iJ05C..XZU130,140199510-199905

subS2212-32060

22146DKEY(FOR DRIVE GEAR)

main90099-13018i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22147RING, CAMSHAFT ADJUST

main22147-77020iJ05C..XZU130,140199510-199905

main22147-78030iJ05C..XZU130,140199510-199905

22147AWASHER, DRIVE SHAFT

main22161-54010i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22147BRING, GOVERNOR SLEEVE

main22147-54290i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22148SPRING, DELIVERY VALVE

main22148-54010×4i3B..BU100,105,120,140,145199505

main22148-5B250×4i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22148-89101×4iJ05C..XZU130,140199510-199905

subS2212-51410

22149GASKET, DELIVERY VALVE

main22149-56351×4i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22149-89101×4iJ05C..XZU130,140199510-199905

subS2284-72500

22160SCREW SUB-ASSY, OVERFLOW

main22160-56350i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22160-64010i3B..BU100,105,120,140,145199505

main22160-89101iJ05C..XZU130,140199510-199905

subS2210-71430

22162PLATE, PLUNGER UPPER

main22162-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22163PLATE, PLUNGER LOWER

main22163-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22169JOINT, RUBBER

main22169-54180×2i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22170SHAFT SUB-ASSY, DRIVE

main22170-17840i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22170-54180i3B..BU100,105,120,140,145199505

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-56291i3B..BU100,105,120,140,145199505

main22172-5C090i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

22174SHAFT, SPLINE

main22174-58201i3B..BU100,105,120,140,145199505

main22174-58270i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199610

main90099-14052i3B..BU100,120,140199608-199610

22178DBRACKET, IDLE UP

main22178-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

main22178-5C100i15BF..BU102,107,112,13#,142,147,212,222..4FC,6F199505

main22178-5C270i15BFT..BU297199701-199905

22179SHIM, PLUNGER ADJUSTING

main22179-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22179-54011i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22179-54012i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22179-54013i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22179-54014i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22179-54015i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22179-54016i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22179-54017i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22179-54018i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22179-54019i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22179-54020i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22180VALVE SUB-ASSY, REGULATOR

main22180-17140i15BFT..BU297199701-199905

main22180-17540i15BFT..BU212,222,297199505-199905

main22180-56351i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

main22180-58200i3B..BU100,105,120,140,145199505

main22180-5C090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

22182PLATE, TAPPET ADJUSTING SHIM

main22182-17010×2i15BFT..BU212,222,297;15BF..BU142,212,222..6F199505

main22182-17011×2i15BFT..BU212,222,297;15BF..BU142,212,222..6F199505

main22182-17012×2i15BFT..BU212,222,297;15BF..BU142,212,222..6F199505

main22182-17013×2i15BFT..BU212,222,297;15BF..BU142,212,222..6F199505

main22182-46010×4iJ05C..XZU130,140199510-199905

main22182-54010×2i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22183-46010×4iJ05C..XZU130,140199510-199905

main22183-54010×2i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22184-46010×4iJ05C..XZU130,140199510-199905

main22184-54010×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22185-46010×4iJ05C..XZU130,140199510-199905

main22185-48010×4iJ05C..XZU130,140199510-199905

main22185-54010×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22186-46010×4iJ05C..XZU130,140199510-199905

main22186-54010×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22186-78030×4iJ05C..XZU130,140199510-199905

subS2288-52270

main22187-46010×4iJ05C..XZU130,140199510-199905

main22187-54010×2i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22188-46010×4iJ05C..XZU130,140199510-199905

main22188-54010×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22189-46010×4iJ05C..XZU130,140199510-199905

main22189-48031×4iJ05C..XZU130,140199510-199905

main22189-48032×4iJ05C..XZU130,140199510-199905

main22189-48033×4iJ05C..XZU130,140199510-199905

main22189-48034×4iJ05C..XZU130,140199510-199905

main22189-48035×4iJ05C..XZU130,140199510-199905

main22189-48036×4iJ05C..XZU130,140199510-199905

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010×2i3B..BU100,105,120,140,145199505

main22192-56350×2i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-55031i15BFT..BU212,222,297199505-199905

22193CRING, O(FOR TIMER COVER STOPPER)

main22193-17020i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22193DRING, O(FOR REVOLUTION DETECTOR)

main22193-64750i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

22193FRING, O(FOR FUEL INJECTION PUMP FILTER)

main22193-5B320i15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222199609-199610

22305AIDLE-UP SUB-ASSY

main22305-17850i15BF..BU102,107,112,13#,142,147,212..4FC199505

main22305-56350i3B..BU100,105,120,140,145199610

main22305-5C090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

main22305-5C270i15BFT..BU297199701-199905

22314ASPRING, LEVER SUPPORT

main22314-54010×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22316ASLEEVE, GOVERNOR

main22316-54290i3B..BU100,120,140199610-199702

main22316-54360i3B..BU100,105,120,140,145199702

main22316-54630i3B..BU100,120,140199610-199702

main22316-54750i3B..BU100,120,140199610-199702

main22316-55030i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22316-5B060i3B..BU100,120,140199610-199702

main22316-5C151i3B..BU100,120,140199505-199610

main22316-5C152i3B..BU100,105,120,140,145199702

sub22316-5B070

main22316-5C270i15BFT..BU297199701-199905

main22316-6A041i3B..BU100,105,120,140,145199702

main22316-6A680i3B..BU100,120,140199610-199702

main22316-6D050i3B..BU100,120,140199505-199610

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22317SPRING, GOVERNOR DOMPER

main22317-54010i3B..BU100,105,120,140,145199505

main22317-56350i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

22322ASPRING, RETURN

main22322-17170i15BFT..BU297199701-199905

main22322-54020i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

main22322-54450i3B..BU100,105,120,140,145199505

main22322-5C131i15BFT..BU212,222199505-199905

22331BROD SUB-ASSY

main22331-58490i15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC199505

22338APIN, LEVER CONNECTING

main22338-54120i15BFT..BU212,222,297199505-199905

main22338-54410i15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F199708

22341CGEAR, GOVERNOR DRIVE

main22341-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-58200i3B..BU100,105,120,140,145199505-199906

main22350-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

main22350-5C091i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..MTM199809-199906

main22350-5C100i15BF..BU102,107,112,13#,142,147,212..4FC199505-199809

main22350-5C101i15BF..BU102,107,112,13#,142,147,212..4FC199809-199906

main22350-5C130i15BFT..BU212,222199505-199905

main22350-5C270i15BFT..BU297199701-199905

22369SEAT, GOVERNOR SPRING

main22369-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22378AWASHER, GOVERNOR THRUST

main22378-64010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22384DSHAFT, GOVERNOR

main22380-54020i3B..BU100,105,120,140,145199505

main22384-54010i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22390ASOLENOID ASSY, FUEL CUT

main22390-56290i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199703

main22390-56291i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199703

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22511ACOVER, FEED PUMP

main22511-54020i3B..BU100,105,120,140,145199505

main22511-58650i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

22550PISTON ASSY, TIMER

main22550-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

main22550-5C130i15BFT..BU212,222,297;15BF..BU142,212,222..6F199505

22579AACTUATOR SET, IDLE UP

main26133-5C091i15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F199708

22601BRACKET SUB-ASSY, IDLE UP

main22601-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2

main22602-5B320i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199610

22611NUT, TIMER ROUND

main22611-58200i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22611-78030iJ05C..XZU130,140199510-199905

22612BCOVER, TIMER

main22612-17840i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22612-56350i3B..BU100,105,120,140,145199505

22612CCOVER, TIMER

main22612-17020i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22612DRING, O(FOR TIMER COVER)

main22193-17840×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22615ASPRING, TIMER OUTER

main22615-17030i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22615BSPRING, TIMER INNER

main22615-5C120i3B..BU100,105,120,140,145199505-199906

main22615-5C121i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

main22615-5C122i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

main22615-5C130i15BFT..BU212,222,297199505-199905

main22615-5C150i3B..BU100,105,120,140,145199505-199906

main22615-5C151i3B..BU100,105,120,140,145199505-199906

main22615-5C152i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708-199906

main22615-5C153i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222199708-199906

main22615-5C154i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708-199906

main22615-5C400i3B..BU100,105,120,140,145199610-199906

main22615-67040i15BFT..BU212,222,297199505-199905

main22615-67041i15BFT..BU212,222,297199505-199905

main22615-67042i15BFT..BU212,222,297199505-199905

main22615-67043i15BFT..BU212,222,297199505-199905

22632ACOUPLING, INJECTION PUMP

main22632-17840i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22632-54010i3B..BU100,105,120,140,145199505

22655APIN, TIMER SLIDE

main22655-17840i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22655-54010i3B..BU100,105,120,140,145199505

22656CLIP, TIMER

main22656-17840i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22657CLIP, TIMER

main22657-54010i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22658STOPPER, TIMER

main22658-17020i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22658-17840i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22659SPRING, COUPLING

main22659-17840i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22659-64150i3B..BU100,105,120,140,145199505

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22691BSWITCH SUB-ASSY, CONTROL

main22691-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

22701LEVER SUB-ASSY, ADJUSTING

main22701-17590i15BF..BU102,107,112,13#,142,147,212..4FC199505

main22701-17591i15BF..BU102,107,112,13#,142,147,212..4FC199505

main22701-17592i15BF..BU102,107,112,13#,142,147,212..4FC199505

main22701-58202i3B..BU100,105,120,140,145199505

TYPE A=ANGLE OF 22

main22701-58203i3B..BU100,105,120,140,145199505

TYPE B=ANGLE OF 29.5

main22701-58780i15BFT..BU212,222199505-199905

MARK"337"

main22701-58781i15BFT..BU212,222199505-199905

MARK"338"

main22701-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

MARK"561"

main22701-5C091i15BF..BU102,107,112,13#,142,147,162,172,182,202..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..5F199708

MARK"562"

main22701-5C092i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

MARK"563"

main22701-5C130i15BFT..BU212,222199505-199905

MARK"567"

main22701-5C271i15BFT..BU297199701-199905

MARK"564"

main22701-5C272i15BFT..BU297199701-199905

MARK"565"

main22701-5C273i15BFT..BU297199701-199905

MARK"566"

main22701-5C510i15BF..BU142,212,222..6F199708

MARK"676"

main22701-5C511i15BF..BU142,212,222..6F199708

MARK"677"

main22701-5C512i15BF..BU142,212,222..6F199708

MARK"678"

22703ACOVER SUB-ASSY, GOVERNOR

main22703-54132i3B..BU100,105,120,140,145199505

main22703-55051i15BF..BU102,107,112,13#,142,147,212,222..4FC,6F199505

main22703-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

main22703-64850i15BFT..BU212,222,297199505-199905

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22714-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22715-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22716-54010i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22717-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22726SPRING, SPEED CONTROL

main22726-56350i15BFT..BU212,222,297199505-199905

main22726-58200i3B..BU100,105,120,140,145199505

main22726-58470i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..(CBU,IV3)199708

main22726-5C111i15BF..BU172..IV4;15BF..BU102..T4..20T..5F;15BF..BU107..T4..CBU..5F;15BF..BU107..03S..IV3..5F;15BF..BU102..(DM6,T2,T3,TW1)..WT..(20T,30T)..(IV3,IV4)..5F199708

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020×2i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING

main22740-21910i15BFT..BU212,222,297199505-199905

main22740-54010i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..CBU,IV3199505-199708

main22740-58210i3B..BU100,105,120,140,145199505-199906

main22740-58480i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..(CBU,IV3)199708-199906

main22740-58650i15BF..BU102..DM6199505-199905

main22740-58780i15BF..BU102..DM6199505-199905

main22740-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..CBU,IV3199505-199708

main22740-5C150i3B..BU100,105,120,140,145199505-199906

22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)

main22193-54770i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010×4i3B..BU100,105,120,140,145199505-199804

main22745-5B640×4i3B..BU100,105,120,140,145199804

main22745-5C090×4i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-58880i15BF..BU132..IV3;15BF..BU107..T2,T4;15BF..BU107..06S..5F;15BF..BU132..CBU..5F;15BF..BU102..20T..4FC;15BF..BU147..T2,T4,TW4;15BF..BU102,137..T4..20T..5F;15BF..BU112,199708

main22751-5C020i3B..BU100,105,120,140,145199505

main22751-5C270i15BFT..BU297199701-199905

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

22774GASKET, GOVERNOR COVER

main22774-54270i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

22775NUT, LOCK(FOR INJECTION PUMP)

main22775-77121i15BFT,3B..BU100,105,120,140,145,212,222,297;15BF..BU102,107,112,13#,142,147,212,222..4FC,6F199505

22776SCREW, SMOKE SET ADJUSTING

main22776-54110i3B..BU100,105,120,140,145199505

main22776-55030i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

22776ARING, O(FOR SMOKE SET SCREW)

main22193-54771i15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222199608-199610

main90099-14047i3B..BU100,120,140199608-199610

22787PLUG, GOVERNOR SLEEVE

main22787-17140i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-17141i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17142i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17143i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17144i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17145i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-17146i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17147i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17148i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17149i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-17150i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-17151i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-17152i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-54026i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22787-54027i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main22787-54028i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-54029i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-54030i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-54031i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-54032i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-54033i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-54034i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-54035i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-54036i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-56350i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-56351i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-56352i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-56353i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-56354i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-56355i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

main22787-56356i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-56357i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-64640i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

main22787-64641i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22787-64642i15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222199505-199610

main22787-64643i15BF..BU102..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;15BF,15BFT,3B..BU100,105,107,112,120,13#,14#,162,172,182,202,212,222,297199708

main22787-64660i3B..BU100,105,120,140,145199505

main22787-64661i3B..BU100,105,120,140,145199505

main22787-64662i3B..BU100,105,120,140,145199505

main22787-64663i3B..BU100,105,120,140,145199505

main22787-64664i3B..BU100,105,120,140,145199505

main22787-64665i3B..BU100,105,120,140,145199505

main22787-64680i15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

22790COVER SUB-ASSY, TIMER

main22790-5C090i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

main22790-5C100i15BF..BU102,107,112,13#,142,147,212..4FC199505

main22790-5C130i15BFT..BU212,222199505-199905

main22790-5C270i15BFT..BU297199701-199905

main22790-5C400i3B..BU100,105,120,140,145199610

22790ARING, O(FOR TIMER COVER)

main22193-17840i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199708

23010VALVE ASSY, TIMING CONTROL

main23010-5C091i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

L=1.275

main23010-5C092i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199708

L=1.575

main23010-5C093i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

L=1.775

main23010-5C094i15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222..ALV,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,TL4,TW1,TW4199708

L=1.975

26133AACTUATOR SET, IDLE-UP

main26133-5C090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..5F199505-199708

main26133-5C100i15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC199505

8301

221196A210WASHER, AIR BLEEDER NIPPLE

main22119-6A210

2214954771GASKET, DELIVERY VALVE

main22149-54771

2214956350GASKET, DELIVERY VALVE

main22149-56350

2217256350CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-56350

221725C100CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-5C100

223785C430WASHER, DRAIN SCREW

main22378-5C430

2239517250BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-17250

2239517840BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-17840

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

2239556290BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56290

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

223955B320BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-5B320

2262517540WASHER, TIMER SENSOR ADJUSTING

main22625-17540

2272254470NUT, GOVERNOR SHAFT ROCK

main22722-54470

2611817840SCREW, STOP PLATE ADJUSTING

main26118-17840

261185C090SCREW, STOP PLATE ADJUSTING

main26118-5C090

9009210608

main90092-10608

9009301003

main90093-01003

9009690024

main90096-90024

9009904946

main90099-04946

9009904954

main90099-04954

9009905161

main90099-05161

9009905190

main90099-05190

9009905225

main90099-05225

9009905240

main90099-05240

9009905252

main90099-05252

9009918022

main90099-18022

900995C001

main90099-5C001

9017906009

main90179-06009

9020112109

main90201-12109

9331514012

main93315-14012

133 parts on this diagram · 7 diagrams in section
