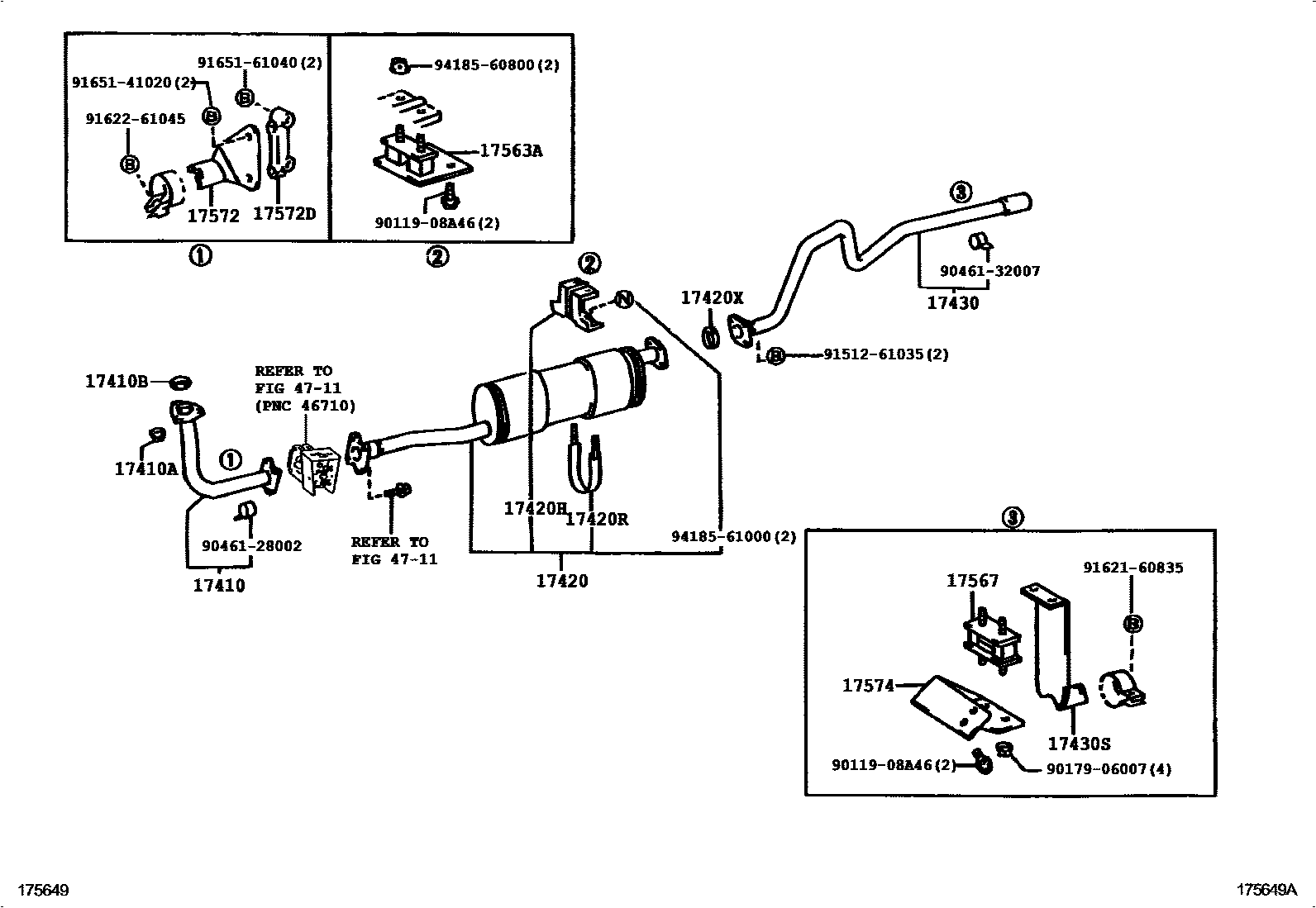

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-58102i15BF..BU202,212,222199505-199906

main17401-78040iJ05C..XZU130,140199510-199905

main17410-58190i15BF,3B..BU10#,112,12#,132,14#199505-199608

sub17410-58191

main17410-58191i15BF,3B..BU100,102,112,12#,132,140,142199608-199906

main17410-58200i15BF..BU162,172,182199505-199608

sub17410-58201

main17410-58201i15BF..BU162,172,182199608-199906

main17410-58210i15BFT..BU212,222199505-199905

main17410-58230i15BFT..BU297199701-199905

main17410-58250i15BFP..BU102,142,RZU100199605

main17410-58260i15BF,3B..BU105,107,137,145,147199610-199905

main17410-75080i3RZFE..RZU100,140199505-199712

sub17410-75120

main17410-75081i3RZFE..RZU100,140199712-199910

sub17410-75280

main17410-75120i3RZFP..RZU100199505-199712

main17410-75121i3RZFP..RZU100199712-199910

main17410-75280i3RZFE..RZU100,140199910

main17410-75290i3RZFP..RZU100199910

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070iJ05C..XZU130,140199505-199906

17410BGASKET, EXHAUST PIPE

main17451-78010iJ05C..XZU130,140199510-199905

subS1710-41580

main90917-06059i15BFT..BU297199701-199905

main90917-06066i3RZ#..RZU100,140199505

main90917-06067i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100199505-199906

17420PIPE ASSY, EXHAUST, CENTER

main17403-78050iJ05C..XZU140199708-199905

main17420-58570i15BF,3B..BU10#,12#..ST199505-199608

sub17420-58571

main17420-58571i15BF,3B..BU100,102,12#..ST199608-199905

main17420-58580i15BF,3B..BU10#..WT199505-199608

sub17420-58581

main17420-58581i15BF,3B..BU100,102..WT199608-199906

main17420-58590i15BF..BU112199505-199608

sub17420-58591

main17420-58591i15BF..BU112199608-199905

main17420-58600i15BF..BU132199505-199608

sub17420-58601

main17420-58601i15BF..BU132199608-199905

main17420-58610i15BF,3B..BU140,142199505-199906

main17420-58620i15BF..BU102..T4..30T..IV3..5F;15BF,3B..BU100,102..(DM6,T3)..WT..20T..IV3199505-199709

sub17420-58621

main17420-58621i15BF..BU102..T4..30T..IV3..5F;15BF,3B..BU100,102..(DM6,T3)..WT..20T199709-199906

main17420-58630i15BF..BU102..T3..(275T,30T)..IV3..5F199505-199905

main17420-58640i15BF..BU162199505-199906

main17420-58650i15BF..BU172199505-199905

main17420-58660i15BF..BU182199505-199906

main17420-58670i15BF..BU202199505-199905

main17420-58680i15BF..BU212199505-199906

main17420-58690i15BF..BU222199505-199905

main17420-58710i15BFT..BU222199505-199905

main17420-58740i15BFT..BU212199505-199905

main17420-58810i15BF..BU162..03S..IV3199510-199906

main17420-58830i15BFP..BU142199605-199905

main17420-58850i15BF,3B..BU105,107199610-199905

main17420-58860i15BF..BU137199610-199905

main17420-58870i15BF,3B..BU145,147199610-199905

main17420-75040i15BFP,3RZ#..BU102,RZU100199505

main17420-75050i3RZFP..RZU100..DM6;3RZFE..RZU100..(DM6,T3)..IV3199505-199606

sub17420-75051

main17420-75051i3RZFP..RZU100..DM6;15BFP..BU102,RZU100..DM6,T4;3RZFE..RZU100..(DM6,T3)..IV3199606

main17420-75160i3RZFE..RZU140199708

main17420-78050iJ05C..XZU130199510-199905

main17420-78050iJ05C..XZU140199708-199905

17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER

main17576-56040i15BF,15BFT..BU202,212,222199505-199906

main17576-58030i15BF,15BFP,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,RZU100199505-199906

17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER

main17504-58020i15BFP,3RZ#..RZU100199505-199906

main17504-58030i15BF,15BFT..BU202,212,222199505-199906

17420XGASKET, EXHAUST PIPE, CENTER

main17451-67010i15BF,3B..BU105,107,137,145,147199610-199905

main90917-06042iJ05C..XZU140199505-199906

main90917-06045i15BFP,3RZ#..BU102,RZU100199505

17430PIPE ASSY, EXHAUST, TAIL

main17430-58390i15BF,3B..BU100,102,12#..ST199505-199905

main17430-58400i15BF,3B..BU100,102..(T2,T4,TW4)..20T199505-199906

main17430-58410i15BF..BU102..T4..30T;3B..BU100..(DM6,T3)..WT;15BF..BU102..T3..WT..20T;15BF..BU102..DM3,DM6,T5,TW1199505-199906

main17430-58420i15BF..BU112199505-199905

main17430-58430i15BF..BU102..T3..(275T,30T)199505-199905

main17430-58440i15BF..BU102..DM2199505-199905

main17430-58450i15BF..BU102..DM5199505-199905

main17430-58460i15BF..BU132..T3,T4199505-199905

main17430-58470i15BF,3B..BU140,142..T2199505-199906

main17430-58480i3RZFE..RZU140199505-199906

main17430-58490i15BF..BU162199505-199906

main17430-58500i15BF..BU172199505-199905

main17430-58510i15BF..BU202199505-199905

main17430-58520i15BF..BU212..T2199505-199905

main17430-58530i15BF..BU222;15BF,15BFT..BU212,222..ALV,T3,T4,TW1,TW4199505-199906

main17430-58600i15BF..BU162..03S..IV3199510-199906

main17430-58630i15BFP..BU142199605-199905

main17430-58640i15BF,3B..BU105,107199610-199905

main17430-58650i15BF,3B..BU145,147..T3,T4,TW4199610-199905

main17430-58670i15BF..BU137199610-199905

main17430-58680i15BF,3B..BU145,147..T2199610-199905

main17430-58690i15BFT..BU297199701-199905

main17430-58700i15BF..BU132..TL4199702-199905

main17430-58720i15BFP..BU102,RZU100..T3199708

main17430-75210i3RZ#..RZU100..T2,T4,TW4199505-199708

main17430-75220i3RZ#..RZU100..DM6,T3,TW1;15BFP..BU102,RZU100..DM6,T4199505

main17430-75360i3RZ#..RZU100..DM5,T2,T4,TW4199708-199806

main17430-78010iJ05C..XZU130199510-199905

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17561-47010iJ05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505-199906

17563ASUPPORT, EXHAUST PIPE, NO.3

main17562-58020i15BF,15BFP,3B..BU14#,182199505-199906

main17563-58010i15BF,15BFP,3B,3RZ#..BU10#,12#,13#,162,172,RZU100,140199505-199906

sub17563-58041

main17563-58020i15BF..BU112199505-199905

main17567-58010i15BF,15BFT..BU202,212,222199505-199906

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-17010iJ05C,15B#,3B,3RZ#..BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140199505-199906

main17567-35010i15BFT..BU297199701-199905

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-58170i15BF,15BFT..BU202,212,222..5F199505-199905

main17571-58180i15BF..BU212..4FC199505-199905

main17571-58200i15BF,3B..BU112,140,142..20T..5F199505-199906

main17571-58210i15BF..BU102,112,132,142..4FC199505-199906

main17571-58270i15BFP..RZU100199505-199906

main17571-58280i15BF..BU162,172,182199505-199906

main17571-58290i15BF..BU102..(DM6,T2,T3,T4)..WT..20T..IV3..5F199505-199906

main17571-58290i15BF..BU102..IV4199507-199905

main17571-58320i15BF,3B..BU105,107,137,145,147..5F199610-199905

main17571-58330i15BF..BU107,137,147..4FC199610-199905

main17571-58340i15BF..BU107..03S..IV3..5F199610-199905

main17571-58360i15BF,15BFT..BU212,222..6F199708-199906

main17571-58370i15BF..BU142..6F199708-199906

main17571-73100i3RZ#..RZU100199505-199506

main17571-75090i3RZ#..RZU100,140199506

main17571-78020iJ05C..XZU130,140199510-199905

17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17579-73010i15BFP..RZU100199505-199906

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17509-58020i15BF..BU102..T4..30T..IV3..5F;15BF,3B..BU100,102..(DM6,T3)..WT..20T..IV3199505-199906

main17509-58020i15BF..BU102..T3..(275T,30T)..IV3..5F199505-199905

main17509-73010i3RZFP..RZU100..DM6;15BFP..BU102,RZU100..DM6,T4;3RZFE..RZU100..(DM6,T3)..IV3199505

main17574-58040i15BFP..RZU100..T3;3RZ#..RZU100,140..DM5,T2,T4,TW4199505-199906

main17574-58050i15BF,3B..BU100,102,12#..ST199505-199905

main17574-58060i15BF..BU102..DM5;15BF,3B..BU14#,212..T2;J05C,15BF..BU13#,162,172,XZU130..DM5,DM7,T3,T4,TW1199505-199906

main17574-58120i15BF..BU162..03S..IV3199708-199906

main17574-58120i15BF..BU162..03S..IV3199510-199708

4711

9011908A46

main90119-08A46

9017906007

main90179-06007

9046128002

main90461-28002

9046132007

main90461-32007

9151261035

main91512-61035

9162160835

main91621-60835

9162261045

main91622-61045

9165141020

main91651-41020

9165161040

main91651-61040

9418560800

main94185-60800

9418561000

main94185-61000

26 parts on this diagram · 20 diagrams in section
