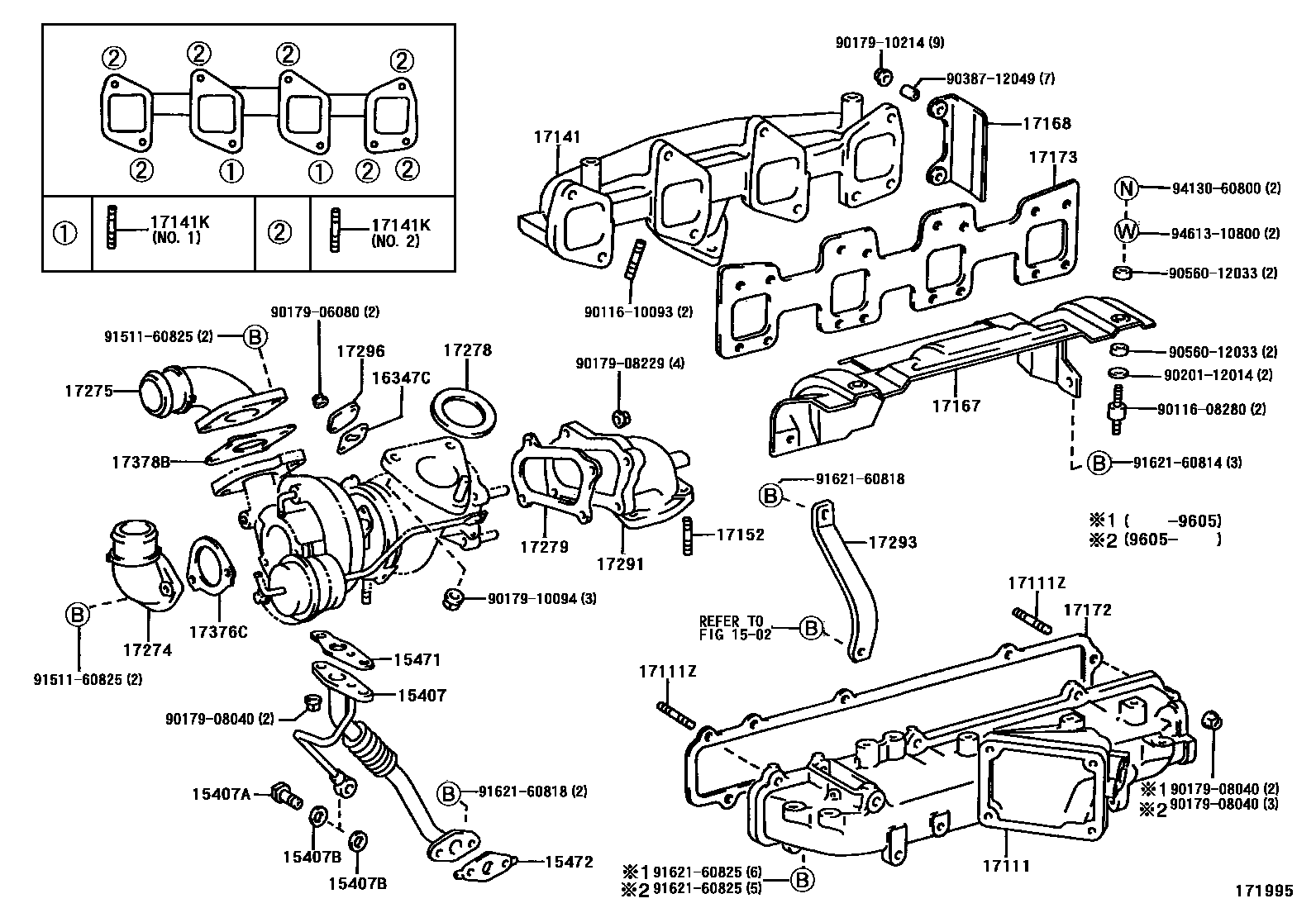

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

1502

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-58030i15BFT..BU212,222,297199505-199905

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12028i15BFT..BU212,222,297199505-199905

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-12025i15BFT..BU212,222,297199505-199905

15471GASKET, TURBO OIL INLET

main15471-58010i15BFT..BU212,222,297199505-199905

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-58011i15BFT..BU212,222,297199505-199905

16347CGASKET(FOR TURBO WATER PIPE)

main16347-67010i15BFT..BU212,222,297199505-199905

17111MANIFOLD, INTAKE

main17101-48010i15BFP..RZU100199605-200005

main17111-58030i15BF..BU102,107,112,122,13#,142,147,202,212,222199505-199703

sub17111-58031

main17111-58031i15BF..BU102,107,112,122,13#,142,147,202,212,222199703-199708

main17111-58040i15BF..BU102..DM2..CBU;15BF,15BFT..BU102,107,112,13#,142,147,202,212,222,297..(ALV,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,TL4,TW1,TW4)..(CBU,IV3)199505-199708

main17111-58070i3B..BU100,105,120,140,145199505

main17111-58100i15BF..BU162,172,182199505

main17111-58110i15BF..BU162,172,182..CBU,IV3199505

main17111-75030i3RZFE..RZU100199505-199708

sub17111-75031

main17111-75031i3RZFE..RZU100,140199708-200005

main17111-75040i3RZFP..RZU100199505-200005

main17111-89104iJ05C..XZU130,140199510-199905

subS1711-14330

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08352i3B..BU100,105,120,140,145199505-199906

main92132-60820i15B#..BU102,112,122,132,142,162,172,182,202,212,222199505-200005

17141MANIFOLD, EXHAUST

main17141-56060i3B..BU100,105,120,140,145199505-199906

main17141-58030i15BFP..RZU100199505-200005

sub17141-58031

main17141-58040i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199906

sub17141-58041

main17141-58050i15BFT..BU212,222,297199505-199905

sub17141-58051

main17141-75051i3RZ#..RZU100,140199505-199910

sub17141-75052

main17141-75052i3RZ#..RZU100,140199910-200005

main17141-89103iJ05C..XZU130,140199510-199806

sub17141-89104

main17141-89104iJ05C..XZU130,140199806-199905

subS1714-15092

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90116-10063i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

main90116-10063i15BFP..RZU100199905-200005

main90116-10198i15BFT..BU212,222,297199505-199905

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16059iJ05C..XZU130,140199510-199905

main90116-10149i3RZ#..RZU100,140199505-200005

main90126-10006i15BFP..RZU100199505-200005

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56040i3B..BU100,105,120,140,145199505

sub17167-56060

sub91621-B0816

main17167-58040i15BFP..RZU100199505-200005

main17167-58050i15BFT..BU212,222,297199505-199905

main17167-75041i3RZ#..RZU100,140199505-200005

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58050i15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-200005

main17168-58060i3B..BU100,105,120,140,145199505

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58010i15B#..BU102,112,122,132,142,162,172,182,202,212,222199505-200005

main17171-58020i3B..BU100,105,120,140,145199505-199906

main17172-89102iJ05C..XZU130,140199510-199905

subS1717-12000

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-56040i3B..BU100,105,120,140,145199505

main17173-58030i15BF,15BFP..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-200005

main17173-58040i15BFT..BU212,222,297199505-199905

main17173-75020i3RZ#..RZU100,140199505-200005

main17173-89102iJ05C..XZU130,140199510-199905

subS1710-41610

17274ELBOW, COMPRESSOR INLET

main17274-58010i15BFT..BU212,222,297199505-199905

17275ELBOW, COMPRESSOR OUTLET

main17275-58010i15BFT..BU212,222199505-199905

main17275-58030i15BFT..BU297199701-199705

sub17275-58031

main17275-58031i15BFT..BU297199705-199905

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-58030i15BFT..BU212,222,297199505-199905

17279GASKET, TURBINE OUTLET ELBOW

main17279-58030i15BFT..BU212,222,297199505-199905

17291ELBOW, TURBINE OUTLET

main17291-58030i15BFT..BU212,222,297199505-199905

17293STAY, TURBOCHARGER

main17293-58020i15BFT..BU212,222,297199505-199905

17296PLATE, BEARING HOUSING, SIDE

main17296-28010i15BFT..BU212,222,297199505-199905

17376CGASKET, AIR TUBE

main17376-46010i15BFT..BU212,222,297199505-199905

17378BGASKET, AIR TUBE, NO.3

main17378-46010i15BFT..BU212,222,297199505-199905

9011608280

main90116-08280

9011610093

main90116-10093

9017906080

main90179-06080

9017908040

main90179-08040

9017908229

main90179-08229

9017910094

main90179-10094

9017910214

main90179-10214

9020112014

main90201-12014

9038712049

main90387-12049

9056012033

main90560-12033

9151160825

main91511-60825

9162160814

main91621-60814

9162160818

main91621-60818

9162160825

main91621-60825

9413060800

main94130-60800

9461310800

main94613-10800

41 parts on this diagram · 8 diagrams in section
