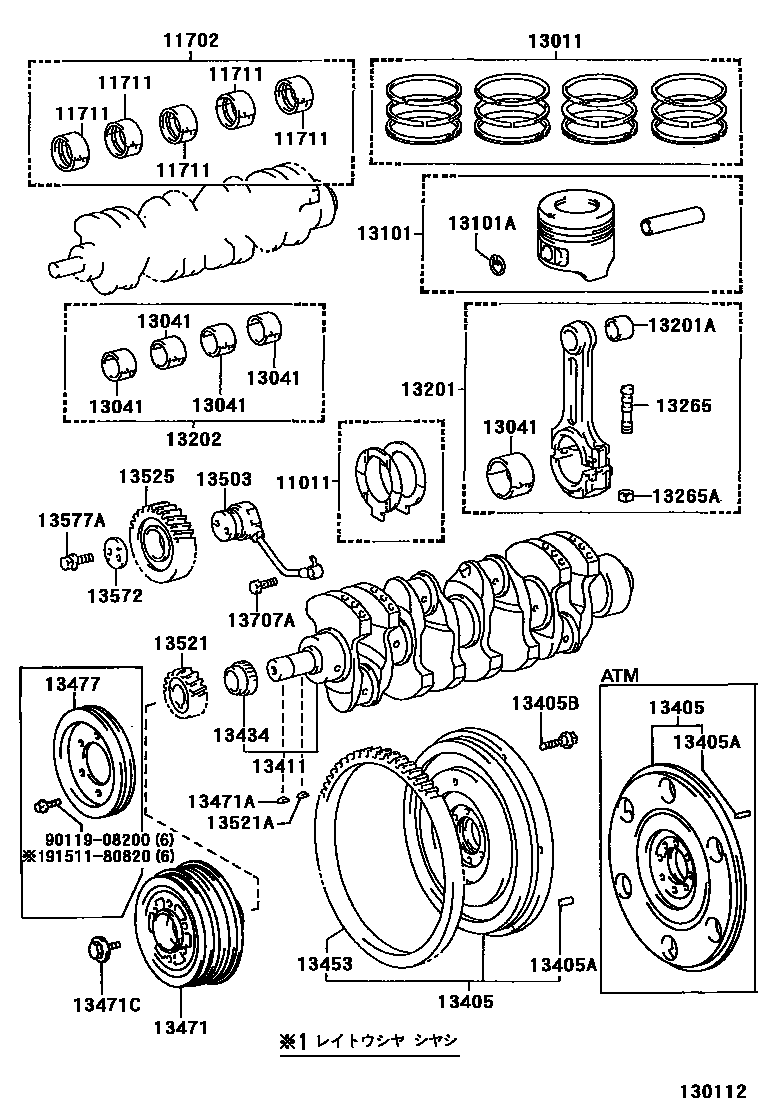

CRANKSHAFT & PISTON

0001 1 0003 1 0004 1 0005 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-56020i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

sub11011-58020

main11011-75010i3RZ#..RZU100,140199505-200005

main11011-89102iJ05C..XZU130,140199510-199905

sub11011-78020

main11012-56020i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

sub11012-58020

main11013-56020i15BFP..RZU100199905-200005

sub11013-58020

main11013-89102iJ05C..XZU130,140199510-199905

sub11013-89104

11702BEARING SET, CRANKSHAFT

main11701-89103iJ05C..XZU130199510-199708

main11701-89104iJ05C..XZU130,140199708-199905

subS1170-12160

main11704-56030i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main11704-56031i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199905

main11704-56032i15BF,3B..BU10#,142,162,182,212199905

sub11704-58010

main11704-75020i3RZ#..RZU100,140199505-199904

main11704-75021i3RZ#..RZU100,140199904-200005

sub11704-75022

main11704-89103iJ05C..XZU130199510-199708

main11704-89104iJ05C..XZU130,140199708-199905

subS1170-31840

main11705-56030i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main11705-56031i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199905

main11705-56032i15BF,3B..BU10#,142,162,182,212199905

sub11705-58010

main11705-89103iJ05C..XZU130199510-199708

main11705-89104iJ05C..XZU130,140199708-199905

subS1170-41870

main11706-89101iJ05C..XZU130199510-199708

main11706-89103iJ05C..XZU130,140199708-199905

subS1170-51850

main11707-56030i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main11707-56031i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199905

main11707-56032i15BFP..RZU100199905-200005

sub11707-58010

main11707-89101iJ05C..XZU130199510-199708

main11707-89103iJ05C..XZU130,140199708-199905

subS1170-61870

11711BEARING, CRANKSHAFT

main11071-75020-01×3i3RZ#..RZU100,140199505-199904

main11071-75020-02×3i3RZ#..RZU100,140199505-199904

main11071-75020-03×3i3RZ#..RZU100,140199505-199904

main11071-75021-01×3i3RZ#..RZU100,140199904-200005

sub11071-75022

main11071-75021-02×3i3RZ#..RZU100,140199904-200005

sub11071-75022

main11071-75021-03×3i3RZ#..RZU100,140199904-200005

sub11071-75022

main11701-56020-01×5i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main11701-56020-02×5i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main11701-56021-01×5i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199905

main11701-56021-02×5i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199905

main11701-56022-01×5i15BFP..RZU100199905-200005

sub11701-58010

main11701-56022-02×5i15BFP..RZU100199905-200005

sub11701-58010

main11701-75020-01×2i3RZ#..RZU100,140199505-199904

main11701-75020-02×2i3RZ#..RZU100,140199505-199904

main11701-75020-03×2i3RZ#..RZU100,140199505-199904

main11701-75021-01×2i3RZ#..RZU100,140199904-200005

sub11701-75022

main11701-75021-02×2i3RZ#..RZU100,140199904-200005

sub11701-75022

main11701-75021-03×2i3RZ#..RZU100,140199904-200005

sub11701-75022

13011RING SET, PISTON

main13011-48040i15BFP..RZU100199905-200005

main13011-58050i3B..BU100,105,120,140,145199505-199905

main13011-58051i3B..BU100199905-199906

main13011-58090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199906

main13011-75040i3RZ#..RZU100,140199505-199804

main13011-75041i3RZ#..RZU100,140199804-200005

main13011-89103iJ05C..XZU130,140199510-199905

sub13011-78110

main13013-48040i15BFP..RZU100199905-200005

main13013-58050i3B..BU100,105,120,140,145199505-199905

main13013-58051i3B..BU100199905-199906

main13013-58090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199906

main13013-75040i3RZ#..RZU100,140199505-199804

main13013-75041i3RZ#..RZU100,140199804-200005

main13014-48040i15BFP..BU102,142199605-199905

main13014-58050i3B..BU100,105,120,140,145199505-199905

main13014-58051i3B..BU100199905-199906

main13014-58090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199906

main13015-48040i15BFP..BU102,142199605-199905

main13015-58050i3B..BU100,105,120,140,145199505-199905

main13015-58051i3B..BU100199905-199906

main13015-58090i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199906

13041BEARING, CONNECTING ROD

main13041-58020-01×4i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main13041-58020-02×4i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main13041-58031-01×4i15BFP..BU102,142199812-199901

main13041-58031-02×4i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199812

main13041-58032-01×4i15BFP..RZU100199905-200005

sub13041-58050

main13041-58032-02×4i15BFP..RZU100199905-200005

sub13041-58050

main13041-75020-04×4i3RZ#..RZU100199505-199701

main13041-75020-05×4i3RZ#..RZU100199505-199701

main13041-75020-06×4i3RZ#..RZU100199505-199701

main13041-75021-04×4i3RZ#..RZU100,140199701-200005

sub13041-75022

main13041-75021-05×4i3RZ#..RZU100,140199701-200005

sub13041-75022

main13041-75021-06×4i3RZ#..RZU100,140199701-200005

sub13041-75022

13101PISTON SUB-ASSY, W/PIN

main13101-48021-01×4i15BFP..RZU100199905-200005

main13101-48021-02×4i15BFP..RZU100199905-200005

main13101-48021-03×4i15BFP..BU102,142199605-199905

main13101-58050-01×4i3B..BU100,105,120,140,145199505

main13101-58050-02×4i3B..BU100,105,120,140,145199505

main13101-58050-03×4i3B..BU100,105,120,140,145199505

main13101-58090-01×4i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505

main13101-58090-02×4i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505

main13101-58090-03×4i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505

main13101-58100-01×4i15BFT..BU212,222,297199505-199703

main13101-58100-02×4i15BFT..BU212,222,297199505-199703

main13101-58100-03×4i15BFT..BU212,222,297199505-199703

main13101-58101-01×4i15BFT..BU212,222,297199703-199905

main13101-58101-02×4i15BFT..BU212,222,297199703-199905

main13101-58101-03×4i15BFT..BU212,222,297199703-199905

main13101-75040×4i3RZ#..RZU100,140199505-199804

main13101-75041×4i3RZ#..RZU100,140199804-200005

main13103-48021×4i15BFP..BU102,142199605-199905

main13103-58050×4i3B..BU100,105,120,140,145199505

main13103-58090×4i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505

main13103-58100×4i15BFT..BU212,222,297199505-199703

main13103-58101×4i15BFT..BU212,222,297199703-199905

main13103-75040×4i3RZ#..RZU100,140199505-199804

main13103-75041×4i3RZ#..RZU100,140199804-200005

main13104-48021×4i15BFP..BU102,142199605-199905

main13104-58050×4i3B..BU100,105,120,140,145199505

main13104-58090×4i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505

main13104-58100×4i15BFT..BU212,222,297199505-199703

main13104-58101×4i15BFT..BU212,222,297199703-199905

main13105-48021×4i15BFP..RZU100199905-200005

main13105-58050×4i3B..BU100,105,120,140,145199505

main13105-58090×4i15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505

main13105-58100×4i15BFT..BU212,222,297199505-199703

main13105-58101×4i15BFT..BU212,222,297199703-199905

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90035-21020×8iJ05C..XZU130,140199510-199905

main90521-28003×8i3RZ#..RZU100,140199505-200005

main90521-34002×8i3B..BU100,105,120,140,145199505

main90521-37007×8i15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505

13201ROD SUB-ASSY, CONNECTING

main13201-59146×4i3B..BU100,105,120,140,145199505

sub13201-59266

main13201-59185×4i15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505

sub13201-49056

main13201-79205×4i3RZ#..RZU100,140199505-200005

sub13201-79466

main13201-89102×4iJ05C..XZU130199510-199708

main13260-89101×4iJ05C..XZU130,140199708-199905

sub13260-78030

13201ABUSH(FOR CONNECTING ROD SMALL END)

main13271-89101×4iJ05C..XZU130,140199510-199905

subS1327-21300

main90999-73124×4i3B..BU100,105,120,140,145199505

main90999-73129×4i3RZ#..RZU100,140199505-200005

main90999-73134×4i15BFP..RZU100199905-200005

13202BEARING SET, CONNECTING ROD

main13041-89101iJ05C..XZU130,140199510-199905

subS1320-11780

main13204-58020i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main13204-58031i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199812

main13204-58032i15BFP..RZU100199905-200005

sub13204-58050

main13204-75020i3RZ#..RZU100199505-199701

main13204-75021i3RZ#..RZU100,140199701-200005

sub13204-75022

main13204-89101iJ05C..XZU130,140199510-199905

subS1320-31710

main13205-58020i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main13205-58031i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199812

main13205-58032i15BFP..RZU100199905-200005

sub13205-58050

main13205-89101iJ05C..XZU130,140199510-199905

subS1320-41680

main13206-89101iJ05C..XZU130,140199510-199905

subS1320-51670

main13207-58020i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199712

main13207-58031i15B#,3B..BU10#,112,120,13#,14#,162,172,182,202,212,222,297199712-199812

main13207-58032i15BFP..RZU100199905-200005

sub13207-58050

main13207-89101iJ05C..XZU130,140199510-199905

subS1320-61660

13265BOLT, CONNECTING ROD

main13265-58020×8i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

main13265-75030×8i3RZ#..RZU100,140199505-200005

main13265-89101×8iJ05C..XZU130,140199510-199905

sub13265-78020

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main13266-58010×8i15BFP..RZU100199905-200005

main13266-89102×8iJ05C..XZU130,140199510-199905

subS1326-61150

main90179-09009×8i3RZ#..RZU100,140199505-200005

13405FLYWHEEL SUB-ASSY

main13405-56040i15BF..BU172,182;15BF,3B..BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..5F199505

sub13405-56041

main13405-58040i15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC199505

main13405-58070i15BF..BU212,222..6F;15BFP,15BFT..BU102,142,212,222;15BF..BU102,112,132,142..MTM..(275T,30T)199505

main13405-75040i3RZ#..RZU100,140199505-200005

main13450-78010iJ05C..XZU130,140199902-199905

sub13450-78011

main13450-89101iJ05C..XZU130,140199510-199902

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC199505

main90250-08054×3i3RZ#..RZU100,140199505-200005

main90250-10192×2i15BFP..RZU100199905-200005

main90387-14013iJ05C..XZU130,140199510-199905

13405BBOLT, FLYWHEEL SETTING

main90031-09050×8iJ05C..XZU130,140199510-199905

main90910-02116×10i3RZ#..RZU100,140199505-200005

main90913-01015×8i15BFP..RZU100199905-200005

13411CRANKSHAFT

main13401-58050i15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505-199903

main13401-58051i15B#..BU102,107,112,13#,142,147,162,172,182,202,212,222,297199903-199906

main13401-58060i3B..BU100,105,120,140,145199505-199906

sub13401-58061

main13411-75020i3RZ#..RZU100,140199505-200005

sub13411-75901

main13411-89101iJ05C..XZU130199510-199708

main13411-89102iJ05C..XZU130,140199708-199905

13434SPLINE, OIL PUMP DRIVE

main13519-56010i15BFP..BU102,142199903-199905

main13519-56011i15BFP..RZU100199905-200005

13453GEAR, FLYWHEEL RING

main13453-17010i15BF..BU212,222..6F;15BFP,15BFT..BU102,142,212,222;15BF..BU102,112,132,142..MTM..(275T,30T)199505

main13453-20010i3RZ#..RZU100,140199505-200005

main13453-56020i15BF..BU172,182;15BF,3B..BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..5F199505

sub13453-56021

main13453-89102iJ05C..XZU130,140199510-199905

sub13453-78020

13471PULLEY, CRANKSHAFT

main13408-75030i3RZ#..RZU100,140199505-200005

main13470-48010i15BFP..RZU100199905-200005

main13470-58050i15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222,297199505-199903

main13470-58051i15BF,15BFT,3B..BU10#,112,120,13#,14#,202,212,222,297199903

main13470-58060i15BF..BU162,172,182199505

main13471-89102iJ05C..XZU130,140199510-199905

subS1347-13690

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i3RZ#..RZU100,140199505-200005

main95161-30416i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90031-05019×4iJ05C..XZU130,140199510-199905

sub90031-05129

main90031-05029×6iJ05C..XZU130,140199510-199905

sub90031-05142

main90105-16041i3RZ#..RZU100,140199505-200005

main90901-19032i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

13477PULLEY, CRANKSHAFT, NO.2

main88358-37010i15BF..BU107..T4..IV3;15BF..BU212..T3..IV3;15BF..BU107..T2..IV3..5F;15BF..BU102..T4..IV3..4FC;15BF..BU212..(T2,T4)..IV3..5F;15BF..BU142,147..(T3,T4)..20T..IV3..5F;15199505-199708

main88451-25020i15BF..BU162,172,182199505-199906

main88451-34010i15BFP,3RZ#..RZU100,140199505

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-58010i15BFP..RZU100199905-200005

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-56030i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

main13521-75010i3RZ#..RZU100,140199505-200005

main13521-89102iJ05C..XZU130,140199510-199905

sub13521-78041

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i3RZ#..RZU100,140199505-200005

main95161-30519i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

13525GEAR, IDLE, NO.1

main13508-56010i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199708

main13520-48010i15BFP..BU102,142199708-199905

13572PLATE, IDLE GEAR THRUST

main13572-56020i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505

main13572-78010iJ05C..XZU130,140199510-199905

main13572-89103iJ05C..XZU130,140199510-199905

subS1357-21241

main13572-89104iJ05C..XZU130,140199510-199905

subS1357-21250

main13572-89105iJ05C..XZU130,140199510-199905

subS1357-21271

main13572-89106iJ05C..XZU130,140199510-199905

subS1357-21221

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90105-10194×2i15BFP..RZU100199905-200005

13707AUNION(FOR OIL PIPE, NO.1)

main90401-10026i15BFP..RZU100199905-200005

9011908200

main90119-08200

9151180820

main91511-80820

31 parts on this diagram · 4 diagrams in section
