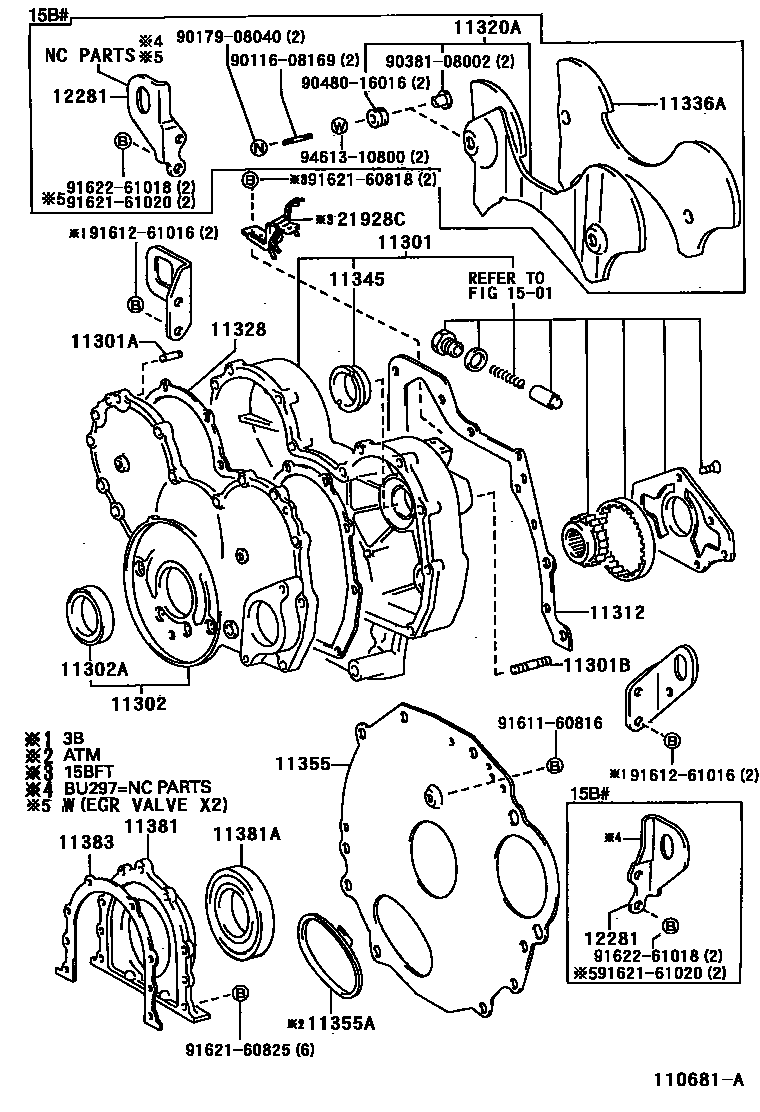

TIMING GEAR COVER & REAR END PLATE

0001 1 0003 1 0005 1 0007 1 0008 1 0009 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-58010i15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222199505-199704

main11301-58011i15BFP..BU142199704-199705

main11301-58012i15BF..BU102,142,162,182,212199905-199906

main11301-58020i3B..BU100,105,120,140,145199505-199905

main11301-58021i3B..BU100199905-199906

main11301-75020i3RZ#..RZU100199505-199704

main11301-75021i3RZ#..RZU100,140199704-200005

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2i15BFP..RZU100199905-200005

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169×2i15BFP..RZU100199905-200005

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-58010i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199904

main11302-58011i15BFP..RZU100199905-200005

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50013i15BFP..RZU100199905-200005

11312GASKET, FRONT END PLATE

main11312-56040i15BFP..RZU100199905-200005

11320ACOVER ASSY, TIMING GEAR, NO.2

main11320-58010i15BFP..RZU100199905-200005

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56050i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199905

main11328-58010i15BF,3B..BU10#,142,162,182,212199905

main11328-75020i3RZ#..RZU100,140199505-199904

main11328-75021i3RZ#..RZU100,140199904-200005

11336AINSULATOR, TIMING GEAR COVER

main11336-58010i15BFP..RZU100199905-200005

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i15BFP..RZU100199905-200005

11355PLATE, REAR END

main11355-56061i15BF..BU172,182;15BF,3B..BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..5F199505

main11355-58022i15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC199505

main11355-58050i15BF..BU212,222..6F;15BFP,15BFT..BU102,142,212,222;15BF..BU102,112,132,142..MTM..(275T,30T)199505

main11355-58060i15BFT..BU297199701-199905

main11355-75010i3RZ#..RZU100,140199505-200005

main11355-89101iJ05C..XZU130,140199510-199905

subS1135-51050

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01458i15BF,15BFT..BU102,107,112,13#,142,147,212,297..4FC199505

11381RETAINER, ENGINE REAR OIL SEAL

main11381-58010i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199905

main11381-58011i15BFP..RZU100199905-200005

main11381-75010i3RZ#..RZU100,140199505-200005

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90033-19003iJ05C..XZU130,140199510-199905

sub90033-19007

main90311-88003i3RZ#..RZU100,140199505-200005

main90311-95011i15BFP..RZU100199905-200005

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040i15BFP..RZU100199905-200005

12281HANGER, ENGINE, NO.1

main12281-58010×2i15BFP..RZU100199905-200005

main12281-89101iJ05C..XZU130,140199510-199905

subS1228-11801

1501

21928CSUPPORT, THROTTLE WIRE

main21928-58130i15BFT..BU212,222199505-199905

9011608169

main90116-08169

9017908040

main90179-08040

9038108002

main90381-08002

9048016016

main90480-16016

9161160816

main91611-60816

9161261016

main91612-61016

9162160818

main91621-60818

9162160825

main91621-60825

9162161020

main91621-61020

9162261018

main91622-61018

9461310800

main94613-10800

29 parts on this diagram · 6 diagrams in section
