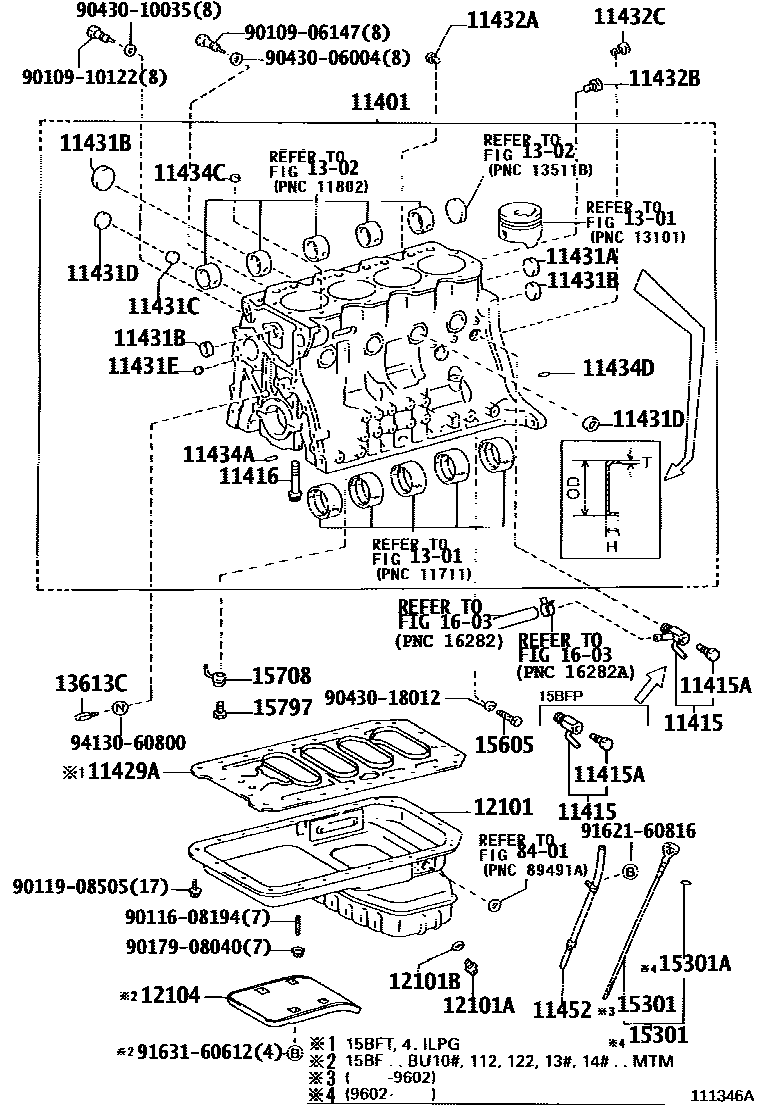

CYLINDER BLOCK

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59417i3B..BU100,105,120,140,145199505

main11401-59575i15BF..BU172..CBU,IV3;15BF..BU102,107,112,122,13#,142,147,162,182,202,212,222199505

main11401-59585i15BF..BU162,172,182199505

main11401-59595i15BFT..BU212,222,297199505-199905

sub11401-59596

sub13511-58021

main11401-59635i15BFP..BU102,142199605-200005

main11401-79685i3RZ#..RZU100,140199505-199904

sub11401-79686

main11401-79686i3RZ#..RZU100,140199904-200005

sub11401-79687

main11401-89101iJ05C..XZU130199510-199708

sub11401-89102

main11401-89102iJ05C..XZU130,140199708-199905

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09078i15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199610-199906

main90910-09078i15BF,15BFT..BU102,112,122,132,142,162,172,182,202,212,222199505-199610

main90910-09091i3RZ#..RZU100,140199505-199905

main90910-09095i15BFP..RZU100199905-200005

main90910-09118i3RZ#..RZU100,140199905-200005

main96431-53828i15BFP,3B..BU100,120,14#199505-199905

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i15BFP,3RZ#..RZU100,140199505-200005

main96432-23814i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199905

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90031-09052iJ05C..XZU130,140199510-199905

subS1152-11261

main90910-02082i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-200005

main90910-02083i15BFP..RZU100199505-200005

main90910-02092i3RZ#..RZU100,140199505-200005

sub90910-02179

11429APLATE, CYLINDER BLOCK STIFFENING

main11429-56011i15BFP,15BFT..BU102,142,212,222,297199505-200005

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-50002iJ05C..XZU130,140199510-199905

main96411-14500i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199905

main96411-63000i3RZ#..RZU100,140199505-200005

main96411-64500i15BF,3B..BU10#,142,162,182,212199905-200005

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90033-31019iJ05C..XZU130,140199510-199905

main90331-50003i15BFP..RZU100199505-200005

main96411-45000i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-199905

main96411-63500i3RZ#..RZU100,140199505-200005

main96411-65000i15BFP..RZU100199505-200005

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90033-31018iJ05C..XZU130,140199510-199905

main96411-63000i15BFP..RZU100199505-200005

main96411-64000i3RZ#..RZU100,140199505-200005

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90033-31016iJ05C..XZU130,140199510-199905

main96411-63500i15BFP..RZU100199505-200005

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006i15BFP..RZU100199505-200005

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51007i15BFP..RZU100199505-200005

main90345-53009i3RZ#..RZU100,140199505-200005

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53004i15BFP..RZU100199505-200005

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i15BFP..RZU100199505-200005

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i15BFP..RZU100199505-200005

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90032-50049iJ05C..XZU130,140199901-199905

main90250-08016iJ05C..XZU130,140199510-199901

main90253-15008i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-200005

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90032-50049iJ05C..XZU130,140199901-199905

main90250-06003i3RZ#..RZU100,140199505-200005

main90250-08016iJ05C..XZU130,140199510-199901

main90250-08120i15BFP..RZU100199505-200005

11452GUIDE, OIL LEVEL GAGE

main11409-48010i15BFP..BU102,142199605-200005

main11409-58010i15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199505

main11409-75020i3RZ#..RZU100,140199505-200005

main11452-56050i3B..BU100,105,120,140,145199505

main11452-89103iJ05C..XZU130,140199510-199905

subS1214-13290

12101PAN SUB-ASSY, OIL

main12101-58102i15BF..BU202,212,222;15BF..BU102,107,112,132,142,147..4FC;15BFP,15BFT,3B..BU100,120,140,142,212,222199505-199701

sub12101-58170

main12101-58112i15BF..BU162,172,182..CBU,IV3199505

main12101-58122i15BF..BU102..IV4199507-199905

main12101-58132i15BF..BU172..IV4199507-199905

main12101-58150i15BFT..BU297199701-199905

main12101-58170i15BFP..RZU100199505-200005

main12101-58210i15BFT..BU297199701-199905

main12101-75060i3RZ#..RZU100,140199505-200005

main12101-89101iJ05C..XZU130,140199510-199905

sub12101-78150

12101APLUG(FOR OIL PAN DRAIN)

main90033-41020iJ05C..XZU130,140199707-199905

main90341-12026i15BFP,3RZ#..RZU100,140199505-200005

sub90341-12012

main90341-18089iJ05C..XZU130199510-199707

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90202-18002iJ05C..XZU130,140199510-199905

sub90034-30046

main90430-12031i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-200005

12104COVER SUB-ASSY, OIL PAN, NO.1

main12104-58010i15BF..BU102,112,122,132,142..5F199505-199605

sub12104-58020

main12104-58020i15BF..BU102,107,112,122,13#,142,147..MTM199605

sub12104-58021

1301

1302

13613CNOZZLE, OIL

main90915-01015i15BFP..RZU100199505-200005

15301GAGE SUB-ASSY, OIL LEVEL

main15301-58011i3B..BU100,105,120,140,145199505

main15301-58040i15B#..BU102,112,122,132,142,162,172,182,202,212,222199505-199602

sub15301-58060

main15301-58060i15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297199602-200005

main15301-75020i3RZ#..RZU100,140199505-200005

main15301-89102iJ05C..XZU130,140199510-199905

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i15BFP..RZU100199602-200005

15605VALVE SUB-ASSY, OIL CHECK

main15605-56010i15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297199505-200005

main15605-89101iJ05C..XZU130,140199510-199905

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-56010i3B..BU100,105,120,140,145199505

main15708-58040i15BFP..RZU100199505-200005

main15708-58050i15BFT..BU212,222,297199505-199905

15797BOLT, OIL NOZZLE UNION

main15797-58020i15BFP..RZU100199505-200005

1603

8401

9010906147

main90109-06147

9010910122

main90109-10122

9011608194

main90116-08194

9011908505

main90119-08505

9017908040

main90179-08040

9043006004

main90430-06004

9043010035

main90430-10035

9043018012

main90430-18012

9162160816

main91621-60816

9163160612

main91631-60612

9413060800

main94130-60800

42 parts on this diagram · 6 diagrams in section
