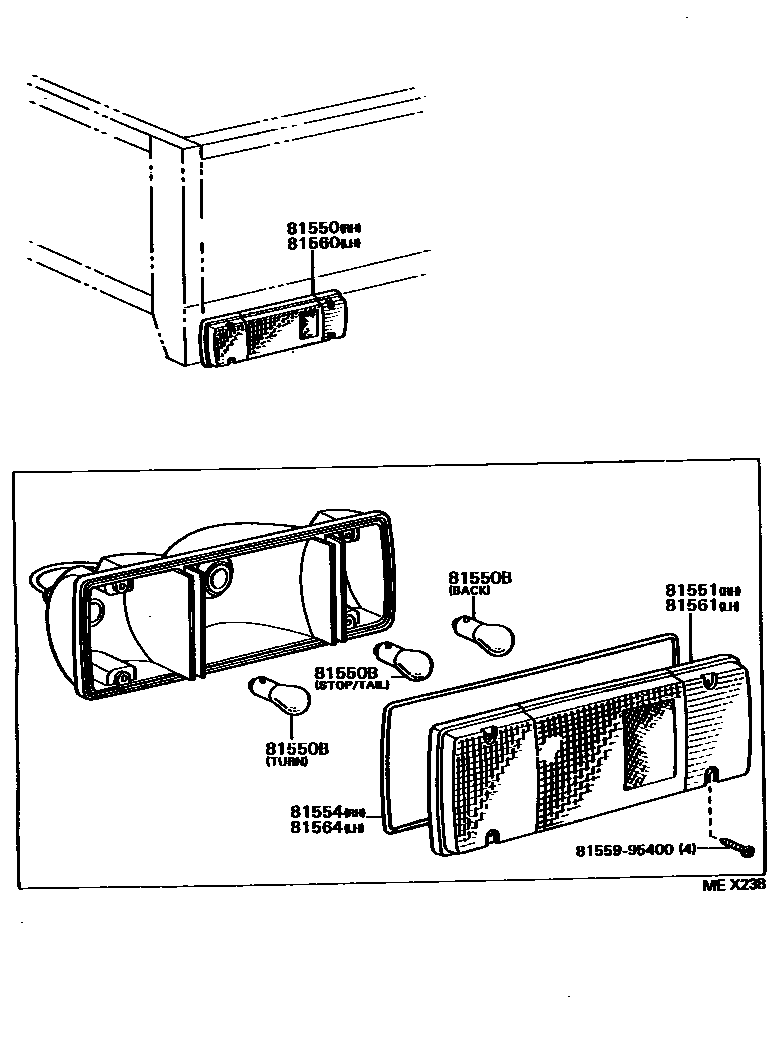

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39455iBU6#,72,73,74,78,8#,9#..DSL,TD198808-199505

main81550-92605iBU70198808-199505

main81550-95409iBU68..LPG199311-199505

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16021iBU6#,72,73,74,78,8#,9#..DSL,TD198808-199505

main99132-11210iBU68..LPG199311-199505

main99132-21210iBU68..LPG199311-199505

main99134-11250iBU6#,72,73,74,78,8#,9#..DSL,TD198808-199505

main99134-11250iBU6#,72,73,74,78,8#,9#..DSL,TD198808-199505

main99134-22250iBU70198808-199505

81551LENS, REAR COMBINATION LAMP, RH

main81551-92605iBU70198808-199505

main81551-95400iBU6#,72,73,74,78,8#,9#198808-199302

sub81554-60441

main81554-60441iBU6#,72,73,74,78,8#,9#199302-199505

sub81551-60421

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-95400iBU6#,72,73,74,78,8#,9#198808-199505

main81554-92605iBU70198808-199505

81560LAMP ASSY, REAR COMBINATION, LH

main81550-92605iBU70198808-199505

main81560-39425iBU6#,72,73,74,78,8#,9#..DSL,TD198808-199505

main81560-95409iBU68..LPG199311-199505

81561LENS, REAR COMBINATION LAMP, LH

main81551-92605iBU70198808-199505

main81561-95400iBU6#,72,73,74,78,8#,9#198808-199302

sub81564-60371

main81564-60371iBU6#,72,73,74,78,8#,9#199302-199505

sub81561-60341

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-95400iBU6#,72,73,74,78,8#,9#198808-199505

main81554-92605iBU70198808-199505

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

8 parts on this diagram · 3 diagrams in section
