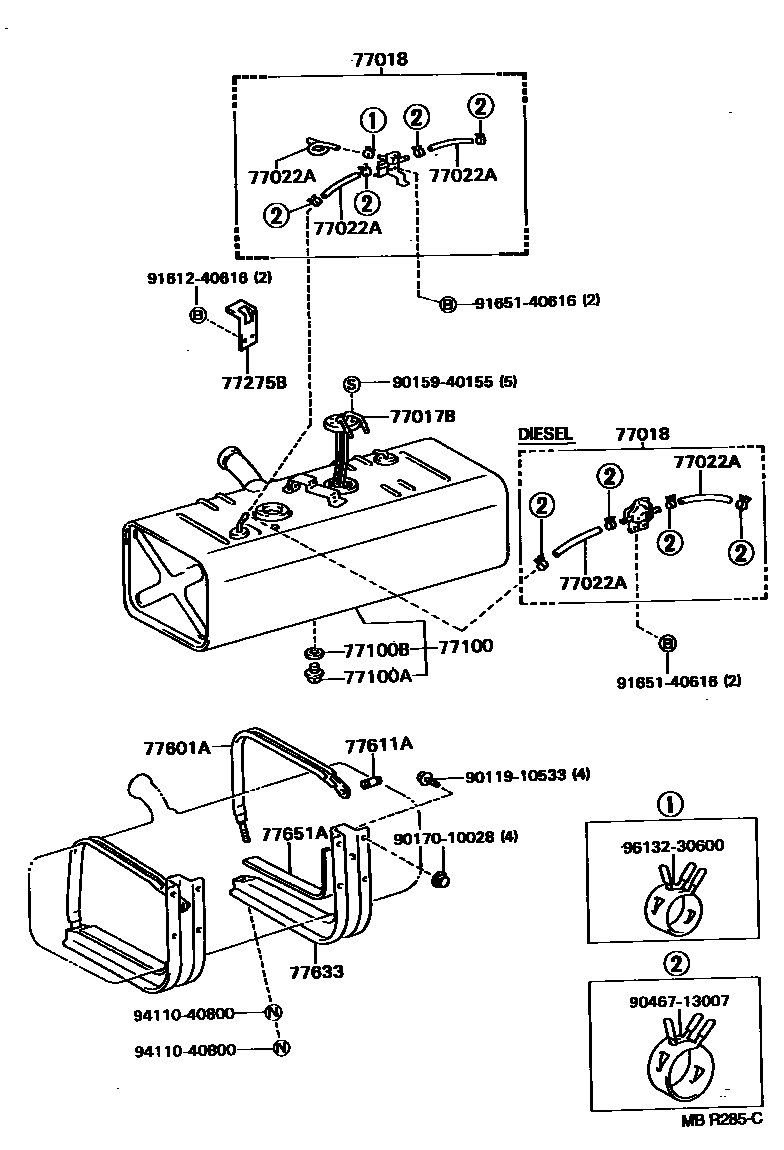

FUEL TANK & TUBE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-36111iBU90..T4198808-198910

main77017-36181iBU85,90,95..T3198808-198910

main77017-36320iBU87..06S..IV3;BU60,66..T3..WT..20T..IV3198808-198906

main77017-36321iBU60,66,70..(HRF,SRF,TW1,TW2,TW4)..(CBU,IV3)198910-199505

main77017-36330iBU60..T1198808-199505

main77017-36340iBU87,96..5F..(275,35T)..IV3198811-199109

main77017-36350iBU66,73..TW1198808-199505

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iBU87..06S..IV3198808-199505

main77018-26140iBU70..03S,06S198808-199505

sub77018-37140

main77018-36230×2iBU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)198808-199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iBU70..03S,06S198808-199505

sub95338-06030

main95333-08020×2iBU87..06S..IV3198808-199505

sub95337-08020

main95333-08030×2iBU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)198808-199505

77100TANK ASSY, FUEL

main77001-25310iBU68..LPG199408-199505

sub77001-25311

main77001-3B020iBU60,66..175198808-199505

main77001-3B030iBU70198808-199505

main77001-3B050iBU70..03S,06S198808-199505

sub77001-37290

main77001-3B060iBU87..06S..IV3198808-199505

main77001-3B070iBU60,61,66..DM2,DM5,T1,T2,T4198808-199505

main77001-3B080iBU87,96..4FC..(275,35T);BU78,83,84,87,88,90,91,94..T2,T4198808-199505

main77001-3B090iBU60..T1198808-199505

main77001-3B100iBU87..V;BU88..T3,TW1;BU87..5F..275;BU85,9#..T3..5F;BU87..(T3,TW1)..(20T,30T)198808-199505

H=310,W=385,L=960(100L)

sub77001-3B101

main77001-3B150iBU66..IV4198808-199505

main77001-3B170iBU72..DM5,T4198910-199505

main77001-3B180iBU72,73,74..T3198910-199505

main77001-3B190iBU72..DM3,DM4198910-199505

main77001-3B200iBU73..06S199005-199505

main77001-3B210iBU68..LPG199311-199505

sub77001-37130

main77001-3B220iBU68..LPG199311-199408

77100APLUG(FOR FUEL TANK)

main90105-12116iBU6#,7#,8#,9#..DSL,TD198808-199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU6#,7#,8#,9#..DSL,TD198808-199505

77275BPROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

main77275-36020iBU67,72..DMP;BU66..DM2,DM3,DM5198912-199505

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25090×2iBU87..06S..IV3198808-199505

main77601-36090×2iBU96..4FC;BU87,88..T2,T4;BU60,61,66,83,84,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4)198808-198811

main77601-36140×2iBU88..T3..IV3;BU87,9#..T3..5F..IV3199109-199505

sub77601-37030

main77601-36150×2iBU88..T3..IV3;BU85,87,9#..T3..5F..IV3198808-199109

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-36010×2iBU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)198808-199505

main77653-25010×4iBU87..06S..IV3198808-199505

77633STAY, FUEL TANK

main77501-25090×2iBU87..06S..IV3198808-199412

main77501-25091×2iBU60,66,70..(HRF,SRF,TW1,TW2,TW4)..(CBU,IV3)199412-199505

main77501-36070×2iBU95,96..5F..IV3198808-199505

sub77501-36071

main77501-36080×2iBU96..5F..IV3;BU85,88,90,91,94,95..T3..IV3198808-199109

main77501-36100iBU66..IV4198808-199505

FRONT

main77501-36121iBU73..06S199005-199505

FRONT

main77502-36050iBU66..IV4198808-199505

REAR

sub77502-36051

main77502-36060iBU73..06S199005-199505

REAR

sub77502-36061

main77633-36090×2iBU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F198808-198811

sub77633-36091

main77633-36111×2iBU87..T3..5F..IV3198808-199109

sub77633-36112

main77633-36120×2iBU87..5F..(275,30T)..IV3199109-199505

sub77633-36121

main77633-36150×2iBU68..LPG199311-199505

main77633-36160×2iBU68..LPG199311-199505

77651ACUSHION, FUEL TANK, NO.1

main77651-26040×2iBU60,66,70..(HRF,SRF,TW1,TW2,TW4)..(CBU,IV3)198808-199505

main77651-36100×2iBU60..T1198808-199505

main77651-36110×2iBU87,96..5F..(275,30T,35T)..IV3199109-199505

main77651-36120×4iBU68..LPG199311-199505

9011910533

main90119-10533

9015940155

main90159-40155

9017010028

main90170-10028

9046713007

main90467-13007

9161240616

main91612-40616

9165140616

main91651-40616

9411040800

main94110-40800

9613230600

main96132-30600
