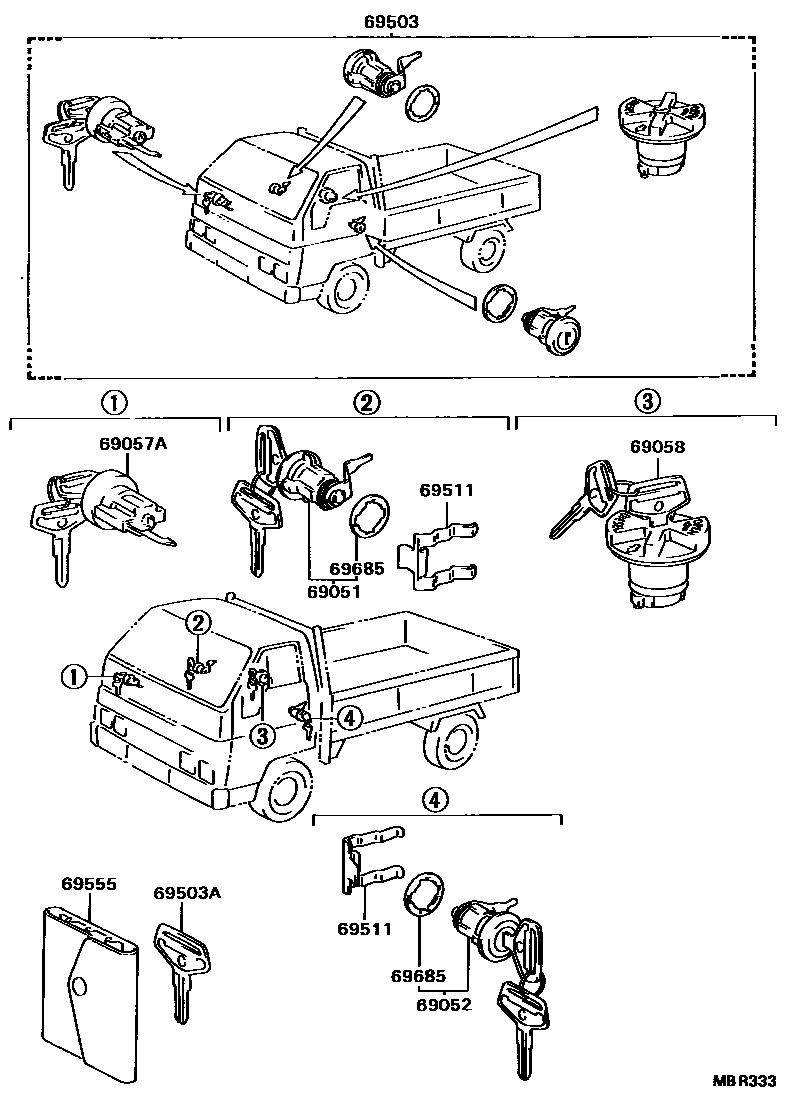

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95403iBU6#,7#,8#,9#¥3,000198808-199505

sub69051-95404¥3,000

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95403iBU6#,7#,8#,9#¥3,000198808-199505

sub69052-95404¥3,000

main69052-95405iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL¥3,000198808-199505

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95412iBU6#,7#,8#,9#¥5,700198808-199505

sub69057-32100¥5,700

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95406iBU88..T3;BU85,87,9#..T3..5F¥6,300198808-199505

69503CYLINDER SET, LOCK

main69503-37010iBU68..LPG¥12,600199311-199505

main69503-92627iBU70¥18,200198808-199505

main69503-95452iBU6#,72,73,74,78,8#,9#..DSL,TD¥14,700198808-199505

sub69503-95462¥14,700

main69503-95453iBU60,61,67,78,88..(T2,T3,T4)..DSL;BU66,68..(DM1,T2,T3,T4)..20T..DSL¥13,600198808-199505

main69503-95454iBU88..T3;BU85,87,9#..T3..5F¥10,500198808-199505

sub69503-95463¥14,700

main69503-95455iBU88..T3..(275,30T)..DSL¥10,500198808-199505

main69503-95473iBU68..LPG¥10,500199311-199505

sub69503-95461¥10,500

69503AKEY, BLANK

main90999-00066iBU6#,72,73,74,78,8#,9#¥1,550198808-199210

sub90999-00085¥1,550

main90999-00085iBU88..TD;BU87,9#..T3..5F¥1,550198808-199505

main90999-00129iBU6#,7#,8#,9#¥2,060198808-199505

sub90999-00212¥2,060

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL¥160198808-199505

main69511-95400iBU6#,7#,8#,9#¥250198808-199505

69555COVER, KEY

main69555-20010iBU6#,7#,8#,9#¥780198808-199505

69685PAD, LOCK CYLINDER

main69513-12020iBU70¥340198808-199505

BACK & SLIDE DOOR

main69513-32010iBU6#,7#,8#,9#¥120198808-199505

FRONT DOOR

9 parts on this diagram · 2 diagrams in section
