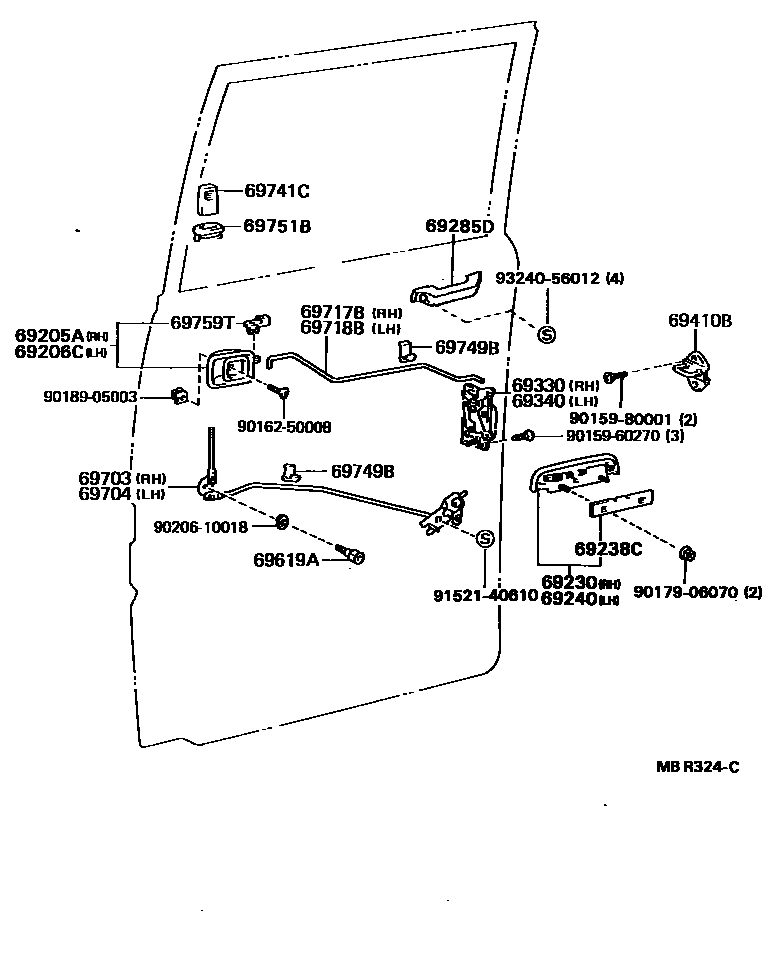

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-95703-04iBU60,66,87,88..TOY..06S198808-199109

BLUE,TRIM8#

main69205-95703-06iBU60,66,73,87,88..DYN..06S198808-199109

BROWN,TRIM4#

main69205-95703-23iBU60,66,73,87,88..06S199109-199308

GRAY,TRIM1#

main69205-95703-B0iBU60,66,73,87,88..06S199308-199505

BLUISH GRAY,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-95703-04iBU60,66,87,88..TOY..06S198808-199109

BLUE,TRIM8#

main69206-95703-06iBU60,66,73,87,88..DYN..06S198808-199109

BROWN,TRIM4#

main69206-95703-B0iBU60,66,73,87,88..06S199109-199505

GRAY,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-95400iBU60,66,73,87,88..06S198808-199505

69238CPAD, DOOR OUTSIDE HANDLE

main69238-95J00×2iBU60,66,73,87,88..06S198808-199505

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-92601iBU70198808-199505

main69240-95400iBU60,66,73,87,88..06S198808-199505

69285DHANDLE, PULL

main69285-95404-04×2iBU60,66,87,88..TOY..06S198808-199109

BLUE,TRIM8#

main69285-95404-06×2iBU60,66,73,87,88..DYN..06S198808-199109

BROWN,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-95401iBU60,66,73,87,88..06S198808-199505

69340LOCK ASSY, REAR DOOR, LH

main69340-95402iBU60,66,73,87,88..06S198808-199505

main69340-95A02iBU70198808-199505

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-37010×2iBU60,66,73,87,88..06S199109-199505

main69410-95010×2iBU60,66,73,87,88..06S198808-199109

main69470-95A01iBU70198808-199505

69619ABOLT

main69619-95010×2iBU60,66,73,87,88..06S198808-199505

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69701-95401iBU60,66,73,87,88..06S198808-199505

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69702-95401iBU60,66,73,87,88..06S198808-199505

main69704-95A00iBU70198808-199505

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-95400iBU60,66,73,87,88..06S198808-199505

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-95401iBU60,66,73,87,88..06S198808-199505

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-20020-01×2iBU60,66,87,88..TOY..06S198808-199109

BLACK,TRIM4#

main69741-32010-01×2iBU60,66,73,87,88..06S199202-199505

BLACK,TRIM1#

sub69741-90K00

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010×2iBU60,66,73,87,88..06S198808-199505

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-20031-01×2iBU60,66,87,88..TOY..06S198808-199109

BLACK,TRIM4#

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iBU60,66,73,87,88..06S198808-199505

main69759-24070iBU60,66,73,87,88..06S198808-199505

9015960270

main90159-60270

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9020610018

main90206-10018

9152140610

main91521-40610

9324056012

main93240-56012

26 parts on this diagram · 2 diagrams in section
