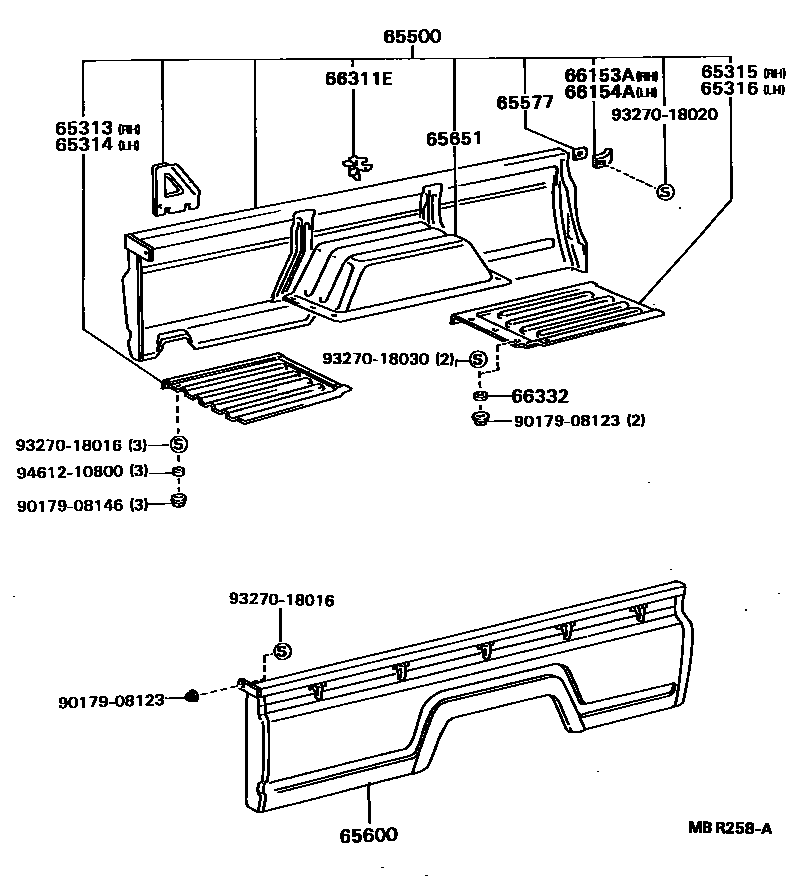

REAR BODY SIDE PANEL

0001 1 0002 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0012 1 0013 1 0014 1 0015 1��(����� ��-�)

65313PANEL, FLOOR FRONT CORNER, RH

main65313-37050iBU60..T1..CBU199210-199505

main65313-37060iBU60..ST..175..CBU199210-199505

main65313-95407iBU60..T1..CBU198808-199210

sub65313-37050

main65313-95409iBU60..ST..175..CBU198808-199210

sub65313-37060

65314PANEL, FLOOR FRONT CORNER, LH

main65314-37010iBU60..T1..CBU199210-199505

main65314-37020iBU60..ST..175..CBU199210-199505

main65314-95406iBU60..T1..CBU198808-199210

sub65314-37010

main65314-95408iBU60..ST..175..CBU198808-199210

sub65314-37020

65315PANEL, FLOOR REAR CORNER, RH

main65315-60010iBU60..(T1,TW1)..CBU199210-199505

main65315-95407iBU60..(T1,TW1)..CBU198808-199210

sub65315-37010

65316PANEL, FLOOR REAR CORNER, LH

main65316-60010iBU60..(T1,TW1)..CBU199210-199505

main65316-95407iBU60..(T1,TW1)..CBU198808-199210

sub65316-37010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37010iBU94,96..CBU199008-199109

main65500-37020iBU94,96..CBU199008-199109

main65500-37030iBU73..06S..CBU199109-199505

main65500-37060iBU87..(275,30T)..CBU;BU83,84,87..(T2,T4)..CBU199109-199505

main65500-37060iBU87..T3..20T..CBU199309-199505

main65500-37070iBU87..T3..20T..CBU199109-199505

main65500-37080iBU74..CBU199109-199505

main65500-37090iBU78..CBU199109-199505

main65500-37100iBU88,91..03S..CBU199109-199505

main65500-37110iBU94,96..T3..CBU199109-199505

main65500-37120iBU94..T4..CBU199109-199505

main65500-37130iBU60..T1..CBU199210-199505

main65500-37140iBU60..ST..175..CBU199210-199505

main65500-92730iBU60,66..WT..175..CBU198808-199505

main65500-92731iBU60,61,66,67..(T2,T3,T4)..20T..CBU198808-199505

main65500-92732iBU66,73..T3..WT..CBU198808-199505

main65500-92733iBU72..T4..CBU198910-199505

main65500-92735iBU72..T3..CBU198910-199210

main65500-92845iBU94,95,96..T3..CBU198808-199008

sub65500-37010

main65500-92847iBU78..CBU;BU88..06S..CBU198808-199505

main65500-92849iBU85,88,90,91..03S..CBU198808-199109

main65500-92856iBU94,96..CBU199109-199505

main65500-92856iBU94,96..CBU199008-199109

main65500-92856iBU94,95,96..CBU198808-199008

FRONT

main65500-92857iBU87..(275,30T)..CBU;BU83,84,87..(T2,T4)..CBU198808-199109

main65500-92858iBU87..T3..20T..CBU198808-199109

main65500-92859iBU87..06S..CBU198808-199505

main65500-92864iBU94,95,96..CBU198808-199008

sub65500-37020

main65500-92865iBU74..CBU198910-199109

main65500-93108iBU67..DM4..CBU198808-199505

main65500-93109iBU67..DM1198808-199505

main65500-93114iBU66..(DM2,DM5)..CBU198808-199505

main65500-93115iBU66..(DM2,DM5)..CBU198808-199505

main65500-93116iBU72..DM5..CBU198910-199505

main65500-93117iBU72..DM4..CBU198910-199107

main65500-93118iBU72..DM4..CBU199107-199505

main65500-93302iBU66..DM3198808-198910

main65500-93303iBU66..DM3198910-199505

main65500-93304iBU72..DM3199109-199505

main65500-95429iBU60..ST..175..CBU198808-199210

sub65500-37140

main65500-95430iBU60..T1..CBU198808-199210

sub65500-37130

main65660-92803iBU94,95,96..CBU198808-199008

REAR

main65660-92803iBU94,96..CBU199008-199109

main65660-92803iBU94,96..CBU199109-199505

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iBU60..(T1,TW1)..CBU198808-199505

65600PANEL ASSY, REAR BODY SIDE, LH

main65500-93302iBU66..DM3198808-198910

main65500-93303iBU66..DM3198910-199505

main65500-93304iBU72..DM3199109-199505

main65600-37010iBU94,96..CBU199008-199109

main65600-37020iBU94,96..CBU199008-199109

main65600-37030iBU73..06S..CBU199109-199505

main65600-37060iBU87..(275,30T)..CBU;BU83,84,87..(T2,T4)..CBU199109-199505

main65600-37060iBU87..T3..20T..CBU199309-199505

main65600-37070iBU87..T3..20T..CBU199109-199505

main65600-37080iBU74..CBU199109-199505

main65600-37090iBU78..CBU199109-199505

main65600-37100iBU88,91..03S..CBU199109-199505

main65600-37110iBU94,96..T3..CBU199109-199505

main65600-37120iBU94..T4..CBU199109-199505

main65600-37130iBU60..T1..CBU199210-199505

main65600-37140iBU60..ST..175..CBU199210-199505

main65600-92730iBU60,66..WT..175..CBU198808-199505

main65600-92731iBU60,61,66,67..(T2,T3,T4)..20T..CBU198808-199505

main65600-92732iBU66,73..T3..WT..CBU198808-199505

main65600-92733iBU72..T4..CBU198910-199505

main65600-92735iBU72..T3..CBU198910-199210

main65600-92845iBU94,95,96..T3..CBU198808-199008

sub65600-37010

main65600-92847iBU78..CBU;BU88..06S..CBU198808-199505

main65600-92849iBU85,88,90,91..03S..CBU198808-199109

main65600-92856iBU94,95,96..CBU198808-199008

FRONT

main65600-92856iBU94,96..CBU199008-199109

main65600-92856iBU94,96..CBU199109-199505

main65600-92857iBU87..(275,30T)..CBU;BU83,84,87..(T2,T4)..CBU198808-199109

main65600-92858iBU87..T3..20T..CBU198808-199109

main65600-92859iBU87..06S..CBU198808-199505

main65600-92864iBU94,95,96..CBU198808-199008

sub65600-37020

main65600-92865iBU74..CBU198910-199109

main65600-93109iBU67..DM4..CBU198808-199505

main65600-93110iBU67..DM1198808-199505

main65600-93115iBU66..(DM2,DM5)..CBU198808-199505

main65600-93116iBU66..(DM2,DM5)..CBU198808-199505

main65600-93117iBU72..DM5..CBU198910-199505

main65600-93118iBU72..DM4..CBU198910-199107

main65600-93119iBU72..DM4..CBU199107-199505

main65600-95420iBU60..T1..CBU198808-199210

sub65600-37130

main65600-95422iBU60..ST..175..CBU198808-199210

sub65600-37140

main65670-92803iBU94,96..CBU199008-199109

main65670-92803iBU94,96..CBU199109-199505

main65670-92803iBU94,95,96..CBU198808-199008

REAR

65651PANEL, WHEEL HOUSE

main65651-37010iBU60..(T1,TW1)..CBU199210-199505

main65651-95014iBU60..(T1,TW1)..CBU198808-199210

sub65651-37010

66153ALATCH, TAIL GATE FEMALE, RH

main66153-95012iBU60..(T1,TW1)..CBU198808-199505

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iBU60..(T1,TW1)..CBU198808-199505

66311EHOOK, ROPE

main66311-90K00iBU60..T1..CBU199210-199505

main66311-95010iBU60..T1..CBU198808-199210

sub66311-90K00

66332CUSHION, RUBBER

main66332-95A00iBU60..(T1,TW1)..CBU198808-199505

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

18 parts on this diagram · 12 diagrams in section
