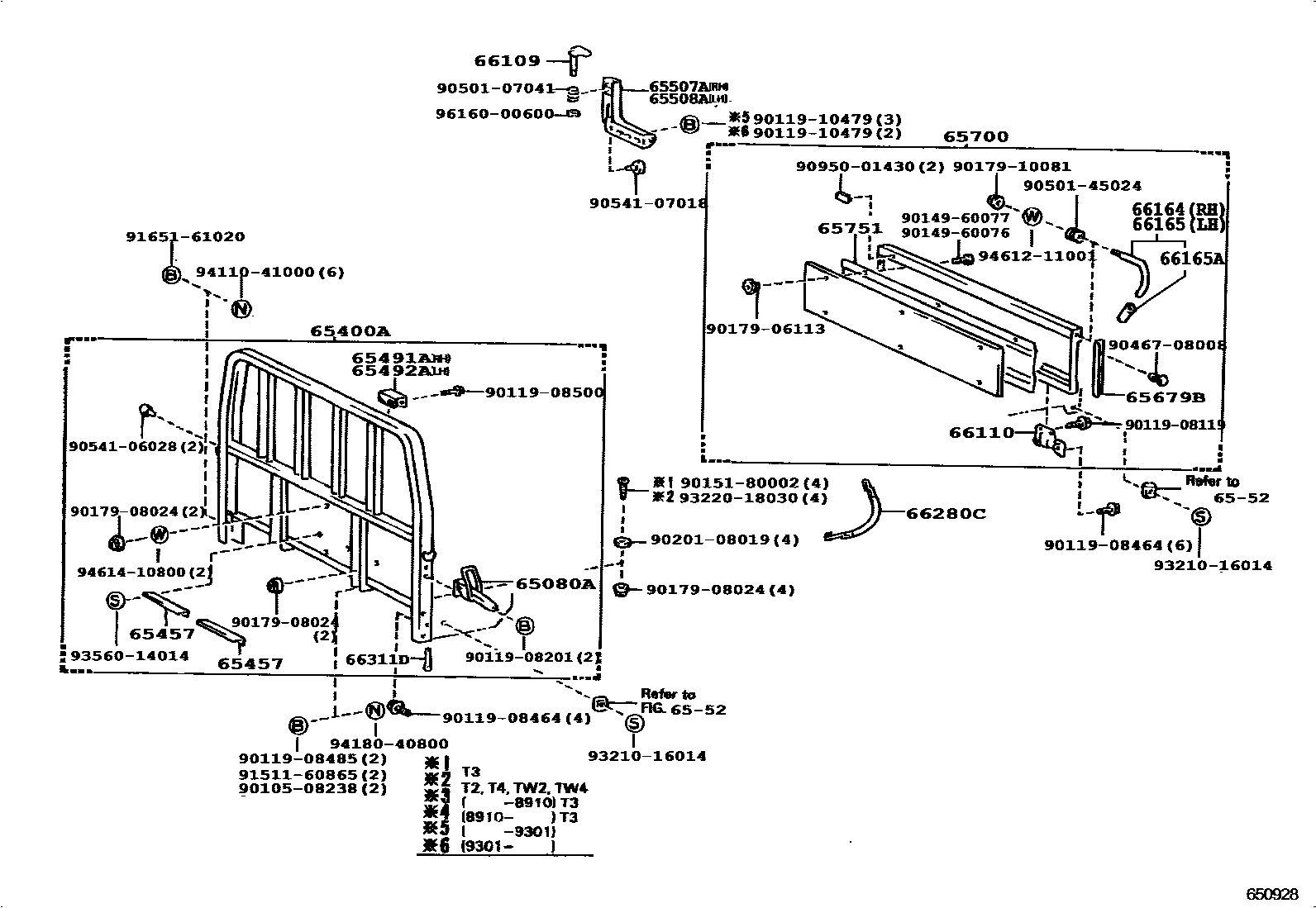

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701iBU90..T4..CBU;BU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,91,94,95,96..TR..CBU198808-199505

sub65080-92702

65400AGUARD ASSY, REAR BODY

main65400-37010iBU60..T1..CBU199008-199210

sub65400-37011

main65400-37011iBU60..T1..CBU199210-199505

main65400-37030iBU73..06S..CBU199109-199309

sub65400-37280

sub66311-92701

main65400-37090iBU60,61,66..T3..ST..CBU199309-199505

main65400-37100iBU60,61,66..T2..CBU199309-199505

main65400-37110iBU60..TW2..CBU199309-199505

main65400-37120iBU60,61,66..T4..CBU199309-199505

sub65400-37100

main65400-37130iBU60,66..TW4..CBU199309-199505

main65400-37140iBU60..T3..WT..CBU199309-199505

main65400-37150iBU84,87..(T2,T4)..CBU199309-199505

main65400-37160iBU67..T3..CBU199309-199505

main65400-37170iBU66,87..(T3,TW1)..WT..CBU199309-199505

main65400-37180iBU78,88..(T2,T4)..CBU199309-199505

main65400-37190iBU88..DYN..T3..CBU;BU88..TOY..(T3,TW1)..CBU199309-199505

main65400-37200iBU88..DYN..06S..CBU199309-199505

sub65400-37190

main65400-37210iBU9#..T3..CBU199309-199505

main65400-37220iBU91,94..T4..CBU199309-199505

main65400-37270iBU72..T4..CBU199309-199505

main65400-37280iBU73..06S..CBU199309-199505

main65400-37290iBU73,74..03S..CBU199309-199505

main65400-92123iBU66,87..(T3,TW1)..WT..CBU198808-199309

sub65400-37170

sub66311-92701

main65400-92130iBU78,88..(T2,T4)..CBU198808-199309

sub65400-37180

sub66311-92701

main65400-92131iBU85,88..(T3,TW1)..CBU198808-199309

sub65400-37190

sub66311-92701

main65400-92134iBU90,91,94..T4..CBU198808-199309

sub65400-37220

sub66311-92701

main65400-92135iBU91,94,95,96..T3..CBU198808-199309

sub65400-37210

sub66311-92701

main65400-92143iBU88..DYN..06S..CBU198910-199309

sub65400-37200

sub66311-92701

main65400-92149iBU83,84,87..(T2,T4)..CBU198808-199309

sub65400-37150

sub66311-92701

main65400-92738iBU60,61,66..T3..ST..CBU198808-199309

sub65400-37090

sub66311-92701

main65400-92743iBU60,61,66..T2..CBU198808-199309

sub65400-37100

sub66311-92701

main65400-92744iBU60,61,66..T4..CBU198808-199309

sub65400-37120

sub66311-92701

main65400-92746iBU67..T3..CBU198808-199309

sub65400-37160

sub66311-92701

main65400-92747iBU60..T3..WT..CBU198808-199309

sub65400-37140

sub66311-92701

main65400-92749iBU60..TW2..CBU198808-199309

sub65400-37110

sub66311-92701

main65400-92751iBU72..T4..CBU198910-199309

sub65400-37270

sub66311-92701

main65400-92752iBU60,66..TW4..CBU198808-199309

sub65400-37130

sub66311-92701

main65400-92755iBU72,73,74..T3..CBU198910-199309

sub65400-37290

sub66311-92701

main65400-95430iBU60..T1..CBU198808-199008

main65410-37050iBU60..ST..175..CBU199210-199505

main65410-92711iBU60..ST..175..CBU198808-199210

sub65410-37050

65457PLATE, BAFFLE DUST REAR BODY

main65457-37060iBU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU199210-199505

CENTER,L=615

sub65457-37062

main65457-37080iBU88..06S..CBU199210-199505

main65457-37090iBU78,88,9#..03S..CBU199210-199505

main65457-37120iBU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU199406-199505

SIDE,L=240

main65457-92702iBU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU199210-199406

SIDE,L=290

main65457-92702iBU60,61,66,67..(T2,T3,T4)..20T..CBU198808-199210

main65457-92703iBU66..T3..WT..CBU;BU87,88..03S..CBU;BU73,78,83,84,85,9#..CBU198808-199505

main65457-92704iBU87..06S..CBU198808-199210

main65457-92800iBU88..06S..CBU198808-199210

sub65457-37080

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-37010iBU72..T4..CBU;BU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU199008-199505

main65491-92702iBU72..T4..CBU;BU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU198808-199008

sub65491-37010

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-37010iBU72..T4..CBU;BU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU199008-199505

main65492-92700iBU72..T4..CBU;BU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU198808-199008

sub65492-37010

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-92704iBU66..(DM2,DM5)..CBU198808-199505

sub65507-92706

main65507-92706iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU198808-199505

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-92704iBU66..(DM2,DM5)..CBU198808-199505

sub65508-92706

main65508-92706iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU198808-199505

6552

65679BSEAL, TAIL GATE

main65679-92707iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU198808-199505

65700GATE ASSY, REAR BODY TAIL

main65700-25010iBU60..(T1,TW1)..CBU199210-199505

main65700-37010iBU94..T4..CBU199008-199109

main65700-92721iBU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU198808-199505

main65700-92722iBU66,72..T3..WT..CBU;BU73,74,83,84,87..CBU198808-199505

main65700-92723iBU72..T4..CBU198910-199505

main65700-92825iBU78,85,88..CBU198808-199505

main65700-92826iBU9#..CBU198808-199505

main65700-92829iBU94,95,96..T3..CBU198808-199109

main65700-95030iBU60..(T1,TW1)..CBU198808-199210

sub65700-25010

main65701-93105iBU66,67..(DM1,DM2,DM4)..CBU198808-198910

main65701-93110iBU72..DM5..CBU;BU66,67..(DM1,DM2,DM4,DM5)..CBU198910-199505

main65701-93111iBU72..DM4..CBU198910-199505

main65701-93112iBU67..DMP..CBU198906-198910

sub65701-93110

main65701-93302iBU66..DM3198808-199505

main65701-93303iBU72..DM3199109-199505

65751PANEL, TAIL GATE

main65751-92703iBU72..T4..CBU;BU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU198808-199505

sub65621-37340

main65751-92705iBU66,72..T3..WT..CBU;BU73,74,83,84,87..CBU198808-199505

sub65621-37460

main65751-92805iBU9#..CBU198808-199505

sub65621-37460

main65751-92807iBU78,85,88..CBU198808-199505

sub65621-37460

66109HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER

main66109-92701iBU60,72..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,73,74,78,8#,9#..(DM2,DM5,T2,T3,T4,TW1,TW4)..CBU198808-199505

sub66193-37010

66110HINGE ASSY, TAIL GATE

main66110-92702iBU72..T4..CBU;BU60,61,66,67..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU198808-199505

main66110-95014iBU60..(T1,TW1)..CBU198808-199505

66164HANDLE, TAIL GATE LATCH, RH

main66264-92700iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU198808-199505

sub66264-37010

sub66165-92701

66165HANDLE, TAIL GATE LATCH, LH

main66265-92700iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU198808-199505

sub66265-37010

sub66165-92701

66165ACAP, GATE LATCH HANDLE

main66165-92701iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU198808-199505

66280CCHAIN ASSY, TAIL GATE

main66280-37010iBU60..(T1,TW1)..CBU198910-199505

main66280-92702iBU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU198808-199505

main66280-95403iBU60..(T1,TW1)..CBU198808-198910

sub66280-37010

66311DHOOK, ROPE

main66311-90K00iBU60..(T1,TW1)..CBU199210-199505

main66311-92701iBU90..T4..CBU;BU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,91,94,95,96..TR..CBU198808-199309

main66311-95010iBU60..(T1,TW1)..CBU198808-199210

sub66311-90K00

9010508238

main90105-08238

9011908119

main90119-08119

9011908201

main90119-08201

9011908464

main90119-08464

9011908485

main90119-08485

9011908500

main90119-08500

9011910479

main90119-10479

9014960076

main90149-60076

9014960077

main90149-60077

9015180002

main90151-80002

9017906113

main90179-06113

9017908024

main90179-08024

9017910081

main90179-10081

9020108019

main90201-08019

9046708008

main90467-08008

9050107041

main90501-07041

9050145024

main90501-45024

9054106028

main90541-06028

9054107018

main90541-07018

9095001430

main90950-01430

9151160865

main91511-60865

9165161020

main91651-61020

9321016014

main93210-16014

9322018030

main93220-18030

9356014014

main93560-14014

9411041000

main94110-41000

9418040800

main94180-40800

9461211001

main94612-11001

9461410800

main94614-10800

9616000600

main96160-00600

48 parts on this diagram · 8 diagrams in section
