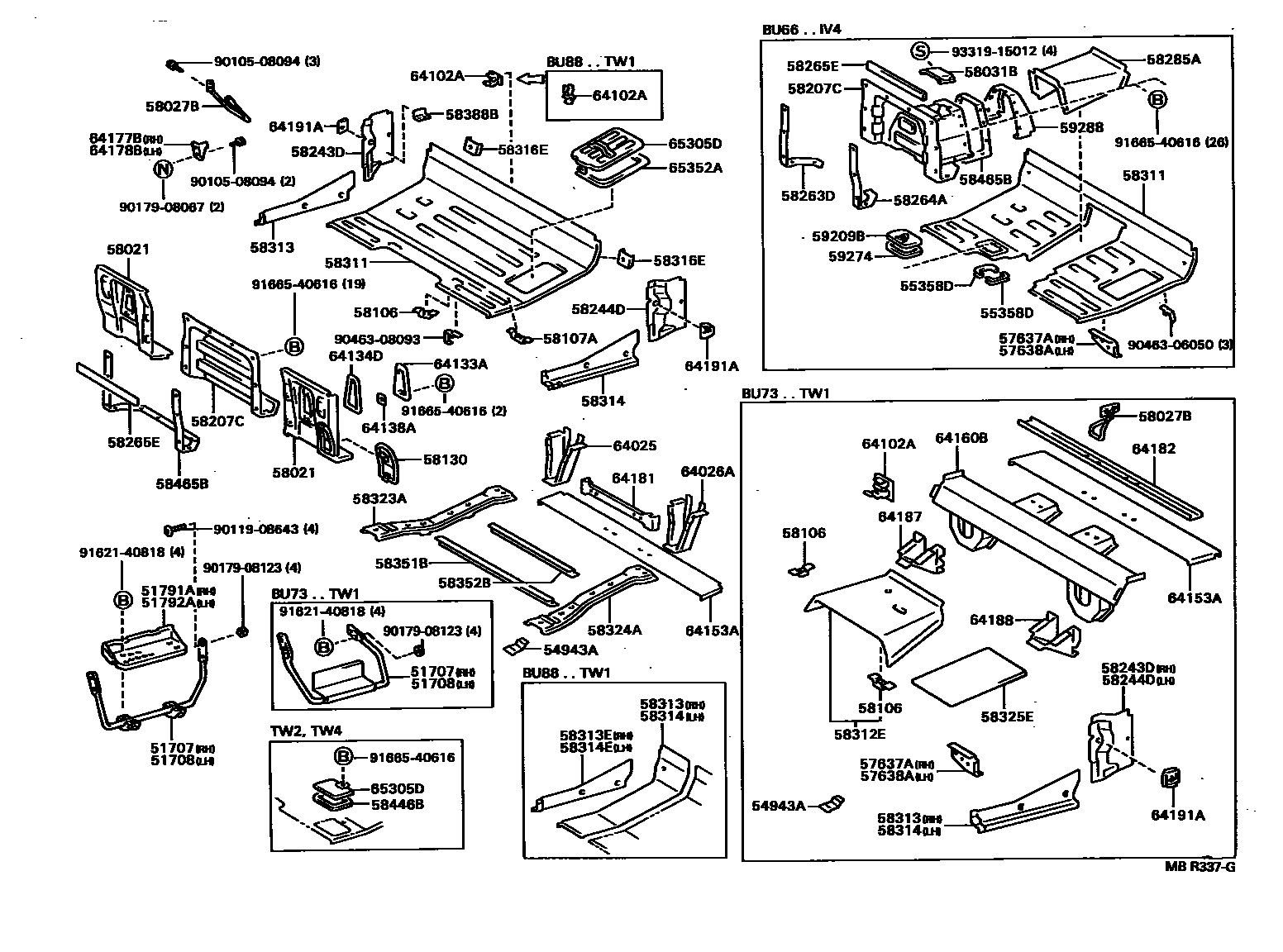

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

51707STEP SUB-ASSY, RH

main51770-37010iBU73..06S..20T¥23,700199109-199505

sub51770-37030¥23,800

main51770-92601iBU66..IV4¥10,400198808-198910

sub51770-92602¥10,300

main51770-92602iBU66,73..IV4¥10,300198910-199505

sub51770-37060¥10,300

main58307-95403iBU60,66,87,88..06S..(CBU,IV3)¥10,300198808-199505

51708STEP SUB-ASSY, LH

main51780-37010iBU73..06S..20T¥23,700199109-199505

sub51780-37030¥23,800

main51780-92602iBU66..IV4¥10,400198808-198910

sub51780-92603¥10,300

main51780-92603iBU66,73..IV4¥10,300198910-199505

sub51780-37020¥19,000

main58308-95400iBU60,66,87,88..06S..(CBU,IV3)¥10,300198808-199505

51791APANEL, STEP, REAR RH

main51791-95A00iBU87..06S¥8,200198808-199505

sub51791-37030¥5,100

main51792-95400iBU60,66,87,88..06S..(CBU,IV3)¥8,400198808-199505

51792APANEL, STEP, REAR LH

main51792-95400iBU60,66,87,88..06S..(CBU,IV3)¥8,400198808-199505

54943ABRACKET, TILT CAB STAY, NO.1

main54943-92600iBU73..06S¥2,680199005-199505

sub54943-37010¥2,680

55358DPROTECTOR, EDGE

main55358-92601iBU66..IV4¥650198808-199505

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-92604iBU66,73..IV4¥1,160198808-199505

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57638-92604iBU66,73..IV4¥1,160198808-199505

58021PANEL SUB-ASSY, HEADER

main58021-92606iBU70¥11,200198808-199505

RH

sub58021-37040¥11,200

main58021-92608iBU88..06S¥14,700198808-199505

main58021-92610iBU73..06S¥8,000199005-199505

main58022-92611iBU70¥11,200198808-199505

LH

sub58022-92613¥11,200

main58022-92613iBU70..09S¥11,200198808-199309

main58022-92616iBU88..06S¥14,700198808-199505

sub58022-37060¥14,800

main58022-92618iBU73..06S¥8,000199005-199505

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-92602iBU88..06S¥1,870198808-199505

main58027-92603iBU73..06S¥1,870199005-199505

main58028-92602iBU88..06S¥1,870198808-199505

main58028-92603iBU73..06S¥1,870199005-199505

58031BCOVER SUB-ASSY, REAR FLOOR SERVICE HOLE

main58031-92600iBU66..IV4¥1,970198808-199505

58106BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

main58106-95A00iBU66..175;BU60,73..06S¥630198808-199505

58107ABRACKET SUB-ASSY, CLAMP SET, NO.1

main58107-95A00iBU60,66..175¥460198808-199505

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iBU60,66,70,87..HRF,SRF,TW1,TW2,TW4¥3,440198808-199505

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-37010iBU73¥19,700199109-199112

sub58207-92603¥19,700

main58207-92601iBU66..IV4¥7,900198808-199505

main58207-92603iBU73¥19,700199109-199112

main58207-92603iBU73¥19,700199005-199505

main58207-92605iBU60,66,70,87..(HRF,SRF,TW1,TW2,TW4)..(CBU,IV3)¥18,000198808-199505

sub58207-37020¥18,000

main58207-92607iBU88..06S¥20,300198808-199505

58243DPANEL, FLOOR SIDE, REAR RH

main58043-37010iBU60,66,87..06S..(CBU,IV3)¥5,500199309-199505

main58243-37010iBU70¥8,500199309-199505

main58243-92601iBU73..06S¥2,870199005-199505

main58243-92603iBU70¥8,600198808-199309

sub58243-37010¥8,500

sub90950-01641¥200

main58243-95415iBU60,66,88..06S¥2,890198808-199505

58244DPANEL, FLOOR SIDE, REAR LH

main58044-37010iBU60,66,87..06S..(CBU,IV3)¥5,500199309-199505

main58244-37010iBU70¥9,100199309-199505

main58244-92601iBU73..06S¥2,870199005-199505

main58244-92603iBU70¥9,100198808-199309

sub58244-37010¥9,100

sub90950-01641¥200

main58244-95411iBU60,66,87,88..06S¥2,890198808-199505

58263DPACKING, TRANSMISSION COVER

main58263-92601iBU66..IV4198808-199505

main58263-92602iBU73¥660199109-199112

main58263-92602iBU73..06S¥660199005-199505

58264APACKING, TRANSMISSION COVER, B

main58263-92602iBU73..06S¥660199005-199505

main58264-92601iBU66..IV4198808-199505

58265EPACKING, TRANSMISSION COVER, C

main58265-92602iBU73..06S¥550199005-199505

main58265-95400iBU60,66,70,87..HRF,SRF,TW1,TW2,TW4¥660198808-199505

58285APANEL, POWER TAKE-OFF SHAFT COVER

main58285-92600iBU66..IV4¥7,600198808-199505

sub58285-37010¥7,500

58311PAN, REAR FLOOR

main58311-92642iBU66..IV4¥36,800198808-199505

main58311-92646iBU70..09S¥79,000198808-199008

main58311-92647iBU88..06S¥36,900198808-199505

58312PANEL, REAR BODY FLOOR, NO.1

main58312-92601iBU70¥11,400198808-199505

58312EPANEL, REAR FLOOR, REAR

main58032-37010iBU73..06S¥27,800199105-199301

main58032-37011iBU73..06S¥27,700199301-199505

main58032-37020iBU73..06S¥27,700199301-199505

main58032-92617iBU73¥27,800199005-199105

main58032-92617iBU73..06S¥27,800199105-199301

58313PANEL, REAR FLOOR SIDE, RH

main58313-92607iBU88..06S¥7,200198808-199505

main58313-95402iBU60,66,73,87..06S¥3,460198808-199505

58313EEXTENSION, REAR FLOOR SIDE PANEL, RH

main58313-95402iBU88..06S¥3,460198808-199505

58314PANEL, REAR FLOOR SIDE, LH

main58314-92609iBU88..06S¥5,200198808-199505

main58314-95403iBU60,66,73..06S¥3,460198808-199505

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58314-95403iBU88..06S¥3,460198808-199505

58316ERETAINER, REAR SEAT SET

main58316-92601iBU70..03S198808-199505

main58316-95402iBU60,66,87,88..06S..(CBU,IV3)¥720198808-199505

58323ABRACE, CENTER TO REAR MOUNTING, RH

main58323-92602iBU88..06S¥7,500198808-199505

58324ABRACE, CENTER TO REAR MOUNTING, LH

main58324-92602iBU88..06S¥7,500198808-199505

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-92602iBU73..06S¥3,910199005-199505

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-92600iBU88..06S¥3,320198808-199505

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58352-92601iBU88..06S¥3,100198808-199505

58388BBRACKET, PLATE REAR FLOOR

main58388-92601iBU66..IV4¥520198808-199505

58446BPACKING, BATTERY SERVICE HOLE, NO.2

main58446-95402iBU60,66..WT..175¥390198808-199505

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-92600iBU66..IV4¥1,750198808-199505

main58465-92601iBU60,66,70,87..(HRF,SRF,TW1,TW2,TW4)..(CBU,IV3)¥2,640198808-199505

main58465-92603iBU88..06S¥3,030198808-199505

main58465-92604iBU73..06S¥530199005-199505

59209BLID, SUB-ASSY, POWER TAKE-OFF OIL LEVEL GAGE

main59209-92601iBU66..IV4¥3,140198808-199505

59274PACKING, POWER TAKE-OFF OIL LEVEL GAGE LID

main59274-92600iBU66..IV4¥260198808-199505

59288BACE, TRANSMISSION COVER, REAR

main59288-92600iBU66..IV4¥5,200198808-199505

64025BRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-92602iBU88..06S¥22,400198808-199505

main64025-95401iBU60,66..06S¥22,400198808-199505

64026ABRACKET SUB-ASSY, REAR MOUNTING, LH

main64025-95401iBU60,66,87..06S¥22,400198808-199505

main64026-92601iBU88..06S¥22,400198808-199505

64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT

main64102-92601iBU88..06S¥410198808-199505

main64102-95403iBU66..175;BU60,73,87..06S¥380198808-199505

64133ACOVER, HEADER PANEL

main64133-95400iBU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4¥990198808-199505

64134DPACKING, HEADER PANEL COVER

main64134-95400iBU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4¥240198808-199505

64138ASEAL, HEADER PANEL COVER

main64138-95400iBU66,88..TW1¥200198808-199505

64153AREINFORCEMENT, BACK FRAME

main64153-92602iBU73..06S¥12,000199005-199505

64160BFRAME ASSY, BACK, REAR

main64160-92602iBU73..06S¥27,700199005-199505

64177BSTOPPER, REAR MOUNTING BRACKET, RH

main64177-92600iBU88..06S¥1,920198808-199505

main64177-92601iBU73..06S¥1,820199005-199505

64178BSTOPPER, REAR MOUNTING BRACKET, LH

main64178-92600iBU88..06S¥1,920198808-199505

main64178-92601iBU73..06S¥1,820199005-199505

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64084-92603iBU66..IV4¥5,700198808-199505

main64084-92604iBU88..06S¥8,800198808-199505

main64181-95401iBU60,66..175¥3,590198808-199505

64182REINFORCEMENT, REAR SEAT BELT ANCHOR, NO.2

main64182-92605iBU73..06S¥7,600199005-199505

64187REINFORCE, REAR MOUNTING BRACKET, LOWER RH

main64187-37010iBU73..06S¥3,610199311-199505

main64187-92600iBU73..06S¥3,600199005-199311

sub64187-37010¥3,610

64188REINFORCE, REAR MOUNTING BRACKET, LOWER LH

main64188-37010iBU73..06S¥3,610199311-199505

main64188-92600iBU73..06S¥3,600199005-199311

sub64188-37010¥3,610

64191ABRACKET, REAR SEAT BELT ANCHORAGE, RH

main64191-92600iBU73..06S¥920199005-199505

main64191-95405iBU60,66,87,88..06S¥710198808-199505

65305DCOVER SUB-ASSY, BATTERY HOLE

main65305-95A03iBU60,66,87,88..TW1¥6,300198808-199505

395 X 235

main65306-92605iBU70¥6,700198808-199505

main65350-95405iBU60,66..WT..175¥6,700198808-199505

176 X 142

65352APACKING, BATTERY HOLE COVER, NO.2

main65352-37010iBU70¥2,060199401-199505

main65352-92607iBU70¥2,050198808-199401

sub65352-37010¥2,060

main65352-95A02iBU60,66,87..06S..(CBU,IV3)¥740198808-199505

9010508094

main90105-08094¥170

9011908643

main90119-08643¥90

9017908067

main90179-08067¥130

9017908123

main90179-08123¥160

9046306050

main90463-06050¥340

9046308093

main90463-08093¥270

9162140818

main91621-40818¥80

9166540616

main91665-40616¥70

9331915012

main93319-15012¥70

66 parts on this diagram · 3 diagrams in section
