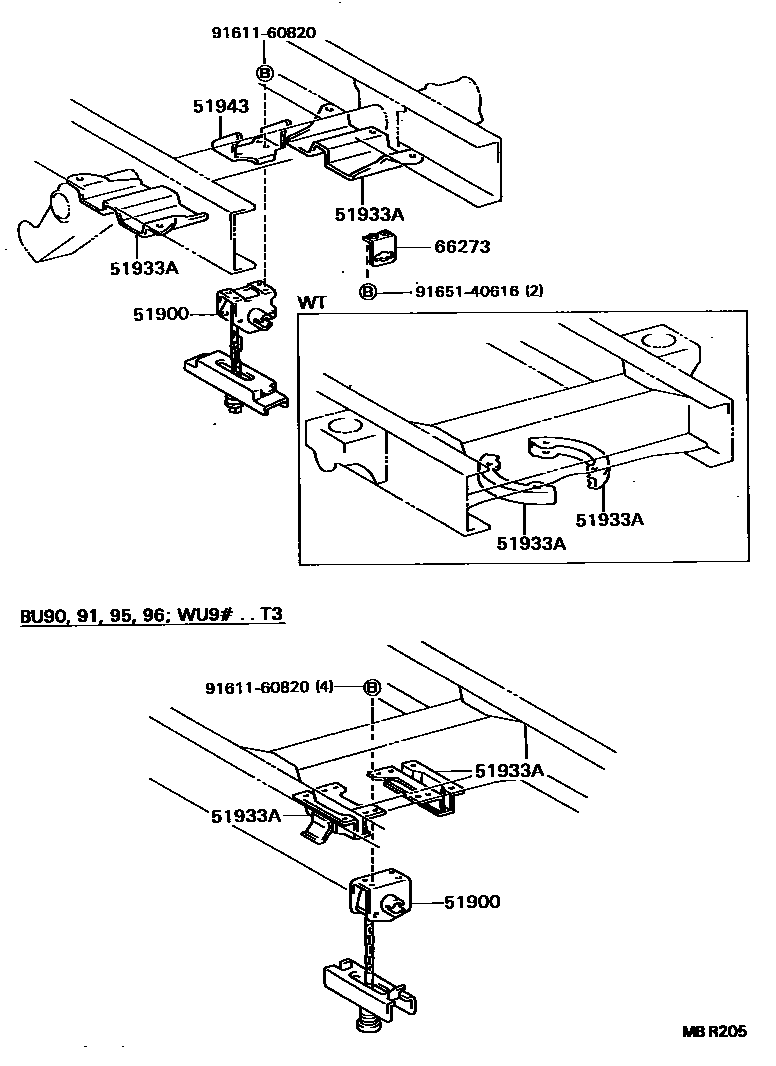

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1 0005 1 0006 1 0009 1 0010 1 0013 1 0014 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36050iBU90,91,95,96198808-199505

main51900-36101iBU60,61,66,84,87,88..DM2,T2,TW2198808-199505

sub51900-36102

main51900-36130iBU72,73..T3198910-199505

main51900-93100iBU67..DM4..5F..CBU198808-199505

main51900-93101iBU67..DM1198808-199008

main51900-93104iBU67..4FC..CBU198808-199505

main51900-93105iBU72..DM4..CBU198910-199109

main51900-93106iBU72..DM4..CBU199109-199505

main51900-93300iBU66..DM3198910-199505

main51900-93301iBU72..DM3199109-199505

main51903-93300iBU66..DM3198808-198910

51933BOLT, SPARE WHEEL CARRIER EYE

main51933-93102iBU67..DM1198808-199008

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36040iBU90,91,95,96..T3..5F198808-199505

main51903-36050iBU78,88,90,91,94..T4;BU87,96..4FC..(275,35T)198808-199505

main51903-36050iBU87,96..5F..(275,30T,35T)..IV3198808-199505

main51933-36010iBU74..20T198808-199505

main51933-36040iBU60,61,66,70..ST198808-199505

main51933-36110iBU66..(T2,T3)..4FC..WT198808-199505

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-36020iBU60,61,66,70..ST198808-199505

main65103-93100iBU67..DM1198808-199008

66273GUIDE, SPARE TIRE CARRIER

main66273-92801iBU84,87,88..T2..CBU198808-199505

main66273-95400iBU60..(T1,TW1)..CBU198808-199505

9161160820

main91611-60820

9165140616

main91651-40616

7 parts on this diagram · 9 diagrams in section
