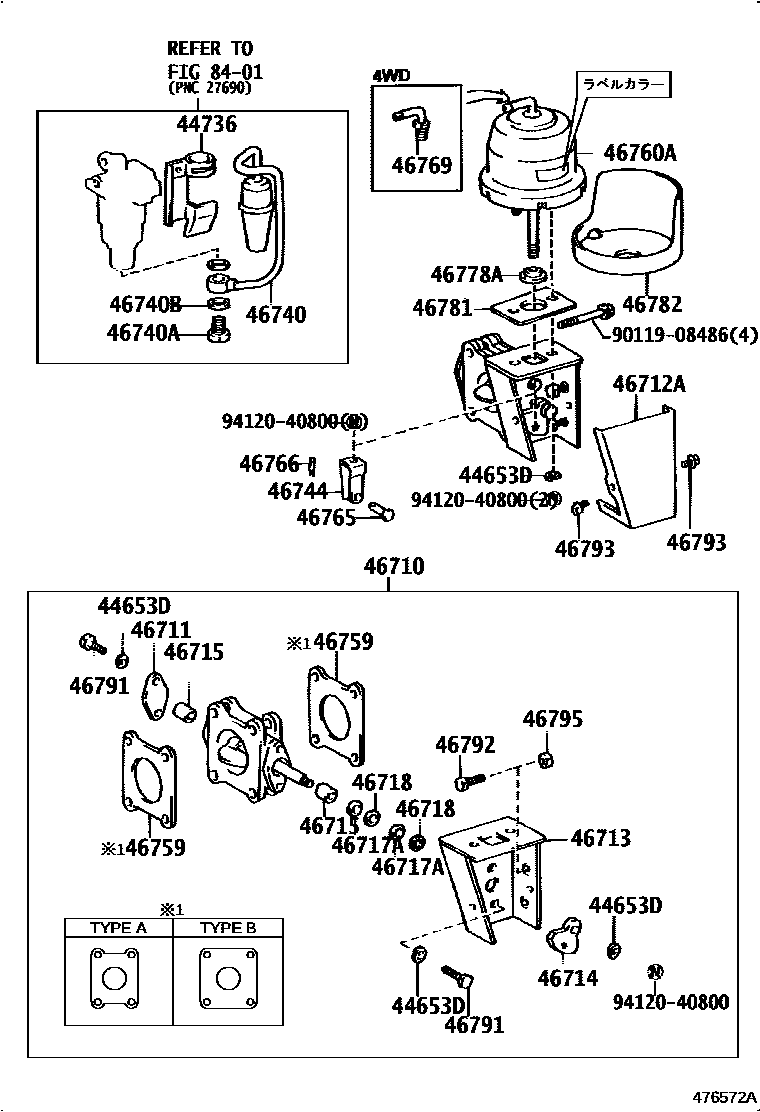

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

44653DWASHER, EXHAUST VALVE COVER

main44653-55010×5iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

44736BRACKET, AIR CLEANER

main44736-36011iBU60,61,66,68,70,78,8#,9#198808-199109

main44736-36050iBU67198808-199505

main44736-36060iBU72,73,74198910-199505

main44736-36070iBU60,61,66,68,70,78,8#,9#..DSL,TD199109-199505

sub44736-37030

46710VALVE ASSY, EXHAUST BRAKE

main46710-36080iBU85,90,95198808-198910

sub46710-36250

sub46712-36270

main46710-36170iBU60,66,67,68,7#,83,87,88,91,94,96..DSL,TD198808-199408

sub46710-36171

sub46712-36270

46711COVER, EXHAUST VALVE

main46711-36010iBU85,90,95198808-198910

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46713BRACKET, EXHAUST VALVE

main46713-36060iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46714LEVER, EXHAUST VALVE

main46714-36010iBU6#,7#,8#,9#..DSL,TD199408-199505

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBU6#,7#,8#,9#..DSL,TD199408-199505

main46715-36060iBU66..T3..5F..WT..(20T,30T)..IV3199109-199505

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36011iBU60,61,66,68,70,78,8#,9#198808-199112

main46740-36041iBU72,73,74198910-199505

main46740-36060iBU67198808-199505

main46740-36080iBU60,61,66,68,70,78,8#,9#..DSL,TD199112-199505

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBU6#,7#,8#,9#..DSL,TD198808-199505

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iBU6#,7#,8#,9#..DSL,TD198808-199505

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46759GASKET, EXHAUST RETARDER

main46759-36010×2iBU66..T3..5F..WT..(20T,30T)..IV3199109-199505

sub46759-36030

main46759-36040×2iBU60,66,67,68,70,78,83,87,88,91,94,96..DSL,TD198808-199408

main46759-36170×2iBU72,73,74198910-199505

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-25041iBU72,73,74198910-199505

main46760-36091iBU66,67,85,87,88,9#..5F..(CBU,IV3)198808-198910

main46760-36092iBU61,84198808-198910

main46760-36093iBU60,66,67,68,70,78,83,87,88,9#..(DSL,TD)..(CBU,IV3)198910-199408

main46760-36130iBU66..IV4198808-198910

main46760-36181iBU66..IV4198910-199505

main46760-36191iBU67,68,78,87,9#..5F198910-199309

main46760-36220iBU73..IV4;BU72,74..DM4,DM5,T3,T4198910-199210

main46760-36240iBU66..T3..5F..WT..(20T,30T)..IV3199109-199505

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBU6#,7#,8#,9#..DSL,TD199408-199505

46769UNION, VACUUM CYLINDER

main46769-36010iBU72,73,74198910-199505

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-36060iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

sub46781-28010

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iBU72,73,74;BU66..(T3,TW1)..5F..WT..(20T,30T,IV4)..(IV3,IV4)199408-199505

46791BOLT, EXHAUST VALVE COVER

main46791-36010×4iBU85,90,95198808-198910

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iBU60,66,67,68,7#,83,85,87,88,9#..DSL,TD198808-199408

8401

9011908486

main90119-08486

9412040800

main94120-40800

29 parts on this diagram · 1 diagram in section
