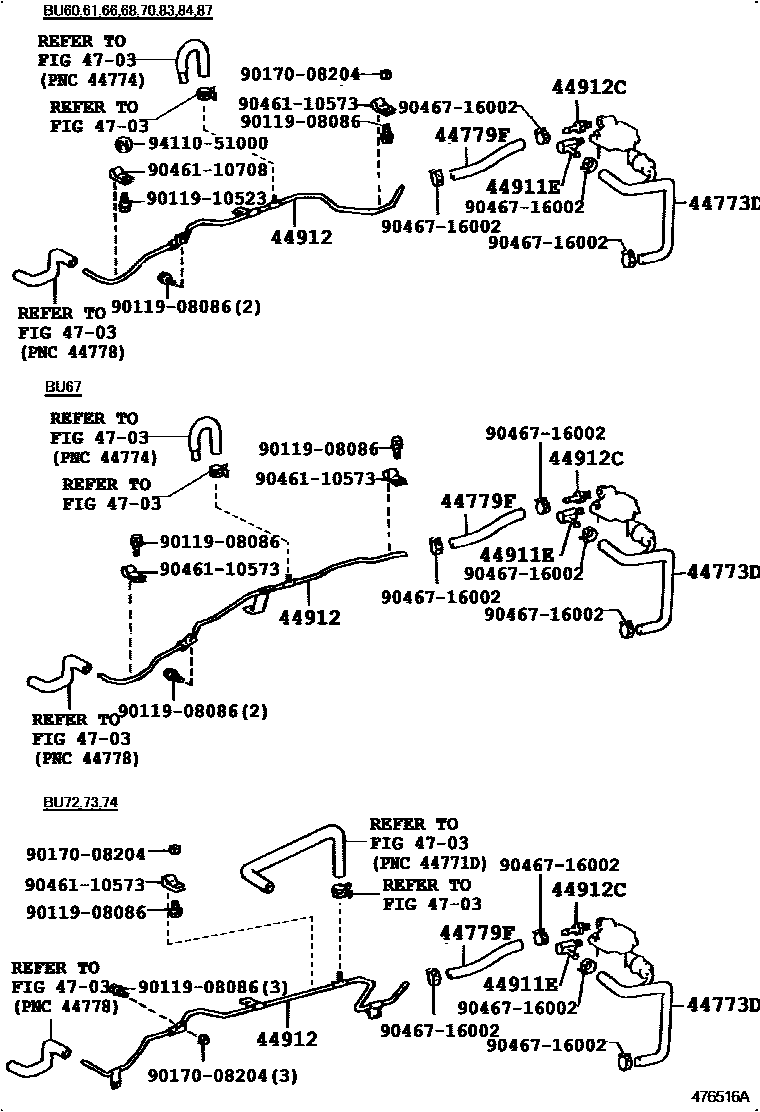

EXHAUST BRAKE TUBE & CLAMP

0001 1 0002 1

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36031iBU67198808-199505

main44773-36041iBU78,85,88,9#198808-199505

main44773-36060iBU66..IV4198808-199505

main44773-36120iBU60,61,66,68,70,83,84,87..DSL..(CBU,IV3)198808-199505

main44773-36130iBU72,73,74198910-199505

main44773-36150iBU66..T3..5F..WT..(20T,30T)..IV3199109-199505

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36010iBU78,85,88,9#198808-199505

main44779-36080iBU72,73,74198910-199505

main95445-09180iBU6#,70,83,84,87198808-199304

sub95446-09180

main95446-09180iBU6#,70,83,84,87..DSL199304-199505

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBU6#,70,72,73,74,83,84,87..DSL198808-199505

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44912-36160iBU78,85,88,9#198808-199505

main44912-36180iBU87..20T,30T;BU87..DYN..275;BU87..TOY..5F..275;BU60,61,66,68,70,84..(03S,06S)..DSL198808-199505

main44912-36200iBU67198808-198809

sub44912-36201

main44912-36201iBU67198809-199505

main44912-36210iBU72,73,74198910-199505

main44912-36240iBU88..T3..5F..(20T,30T)..DSL..CBU199011-199109

main44912-37020iBU88..T3..30T..DSL..CBU199109-199505

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBU6#,70,72,73,74,83,84,87..DSL198808-199505

4703

9011908086

main90119-08086

9011910523

main90119-10523

9017008204

main90170-08204

9046110573

main90461-10573

9046110708

main90461-10708

9046716002

main90467-16002

9411051000

main94110-51000

13 parts on this diagram · 2 diagrams in section
